662004231722
| Manufacturer | |
| Description | HEADER 3MM MALE DUAL ANG 4P SMD Headers & Wire Housings WR-MPC3 HDR 3.0MM MALE DUAL ANG 4P SMD HEADER, 3MM, DUAL, R/A, SMT, 4WAY Wurth Elektronik WR-MPC3 系列 3mm节距 4路 (2排) 直角 PCB 针座, 焊接端接, 5A , 通孔 |
| Category |
Business
| Other Names | 732-1954 | Standard Package | 96 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85366990 | Material Flammability Rating | UL 94 V-0 |
Electrical
| Range deg/s | :WURTH ELEKTRONIK - WR-MPC3 Series | Voltage Rating | 250 V |
| Current Rating (Max) | 5 A | Insulation Resistance | 1000 MOhms |
Mechanical
| Color | Black | Pitch | 0.118" (3.00mm) |
| Weight | 1.02 | Packaging | Tray |
| Row Spacing | 0.118" (3.00mm) | Termination | Solder |
| Contact Type | Male Pin | Mounting Type | Surface Mount, Right Angle |
| Connector Type | Header, Shrouded | Contact Finish | Tin |
| Fastening Type | Locking Ramp | Number of Rows | 2 |
| Contact Material | Copper Alloy | Housing Material | Nylon |
| Termination Style | Through Hole | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 4 | Contact Termination | :Surface Mount Right Angle |
| Number of Positions | 4 | ||
Product Info
| Type | Shrouded | Gender | :Socket |
| Series | WR-MPC3 | Product Type | Headers |
| Application Specifics | Wire-to-Board | Number of Positions Loaded | All |
Environmental
| Operating Temperature | - 25 C to + 105 C | ||
Documents & Media
Similar Parts

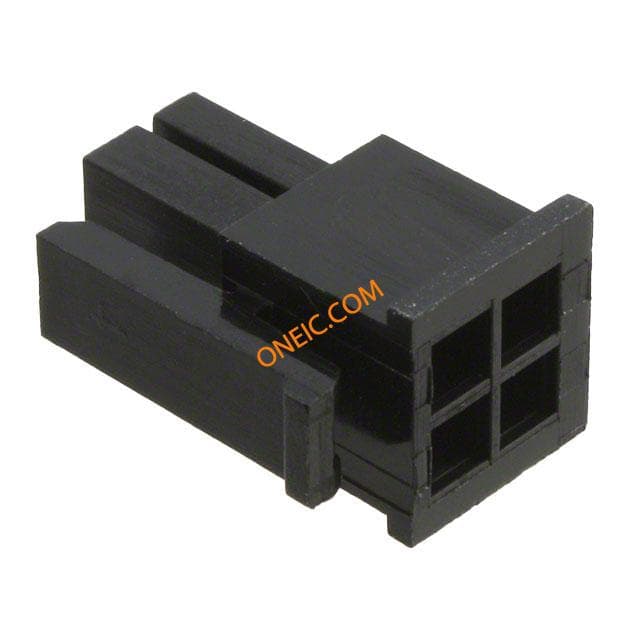

662004113322
