点击放大查看

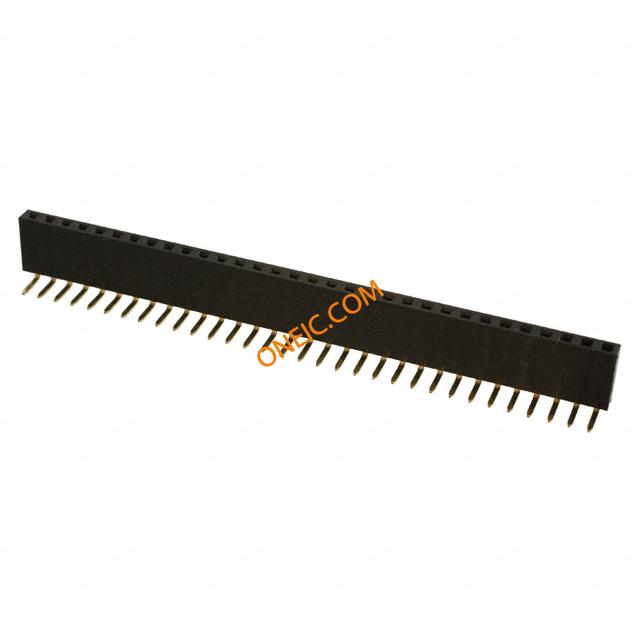

613032143121
| Manufacturer | |
| Description | HEADER 32POS SOCKET R/A 2.54MM Headers & Wire Housings WR-PHD Socket Header 2.54mm 32p SOCKET, 2.54MM, R/A, 32WAY Wurth Elektronik WR-PHD 系列 2.54mm节距 32路 (1排) 直角 印刷电路板插座, 焊接端接, 3A , 通孔 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 732-2864 | Standard Package | 80 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85366990 | Material Flammability Rating | UL 94 V-0 |
Electrical
| Range deg/s | :WURTH ELEKTRONIK - WR-PHD Series | Voltage Rating | 250 V |
| Current Rating (Max) | 3 A | Insulation Resistance | 1000 MOhms |
Mechanical
| Color | Black | Pitch | 0.100" (2.54mm) |
| Weight | 0.003 | Packaging | Tray |
| Termination | Solder | Contact Type | Female Socket |
| Mounting Type | Through Hole, Right Angle | Connector Type | Header |
| Contact Finish | Gold | Number of Rows | 1 |
| Contact Material | Copper Alloy | Housing Material | Polybutylene Terephthalate (PBT) |
| Termination Style | Through Hole | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 32 | Contact Termination | :Through Hole Right Angle |
| Number of Positions | 32 | ||
Product Info
| Gender | :Socket | Series | WR-PHD |
| Product Type | Sockets - PCB | Application Specifics | Board-to-Board |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | - 40 C to + 125 C | ||
Documents & Media
Online Document
Online Document
PDF Document
Online Document
PDF Document
PDF Document
