61303211821
| Manufacturer | |
| Description | CONN HEADER 32POS SOCKET 2.54MM Headers & Wire Housings WR-PHD 2.54mm Header 32P Socket SOCKET, 2.54MM, VERT, 32WAY Wurth Elektronik 6130 系列 32路 2.54mm节距 (1排) 直 PCB 针座 , 焊接端接, 3A, 通孔 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 732-2860 | Standard Package | 80 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85366990 | Material Flammability Rating | UL 94 V-0 |
Electrical
| Range deg/s | :WURTH ELEKTRONIK - WR-PHD Series | Voltage Rating | 250 V |
| Current Rating (Max) | 3 A | Insulation Resistance | 1000 MOhms |
Mechanical
| Color | Black | Pitch | 0.100" (2.54mm) |
| Weight | 0.003 | Packaging | Tray |
| Termination | Solder | Contact Type | Female Socket |
| Mounting Type | Through Hole | Connector Type | Header |
| Contact Finish | Gold | Number of Rows | 1 |
| Contact Material | Copper Alloy | Housing Material | Polybutylene Terephthalate (PBT) |
| Termination Style | Through Hole | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 32 | Contact Termination | :Through Hole Vertical |
| Number of Positions | 32 | ||
Product Info
| Gender | :Socket | Series | WR-PHD |
| Product Type | Sockets - PCB | Application Specifics | Board-to-Board |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | - 40 C to + 125 C | ||
Documents & Media
Online Document
Online Document
PDF Document
Online Document
PDF Document
PDF Document
Similar Parts

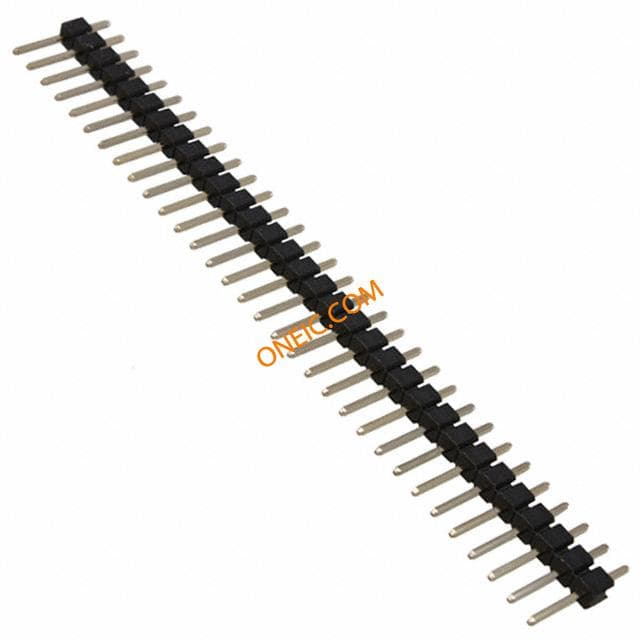

61303211121
Wurth Electronics Inc
CONN HEADER 32POS PIN 2.54MM Wurth Elektronik 613 Series 2.54mm Pitch 32 Way 1 Row Straight PCB Header, Solder Pin Termination, 3A Headers & Wire Housings WR-PHD 2.54mm Header 32P Straight HEADER, THT, VERTICAL, 2.54MM, 32WAY Wurth Elektronik WR-PHD 系列 2.54mm节距 32路 (1排) 直 引脚管座, 焊针端接, 3A , 通孔
$9.0600
Details

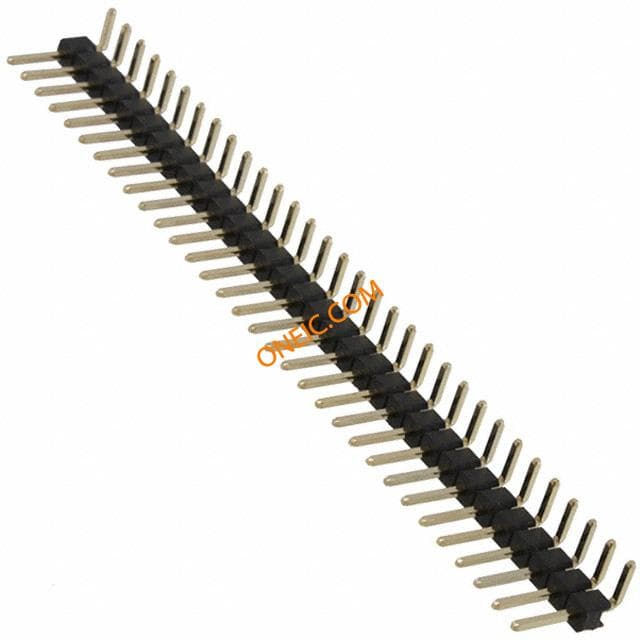

61303211021
