点击放大查看
61301011021
| Manufacturer | |
| Description | CONN HEADER 10POS R/A PIN 2.54MM Wurth Elektronik 613 Series 2.54mm Pitch 10 Way 1 Row Right Angle PCB Header, Solder Pin Termination, 3A Headers & Wire Housings WR-PHD 2.54mm Header 10P Angled HEADER, 2.54MM, PIN, R/A, 10WAY Wurth Elektronik WR-PHD 系列 2.54mm节距 10路 (1排) 直角 引脚管座, 焊针端接, 3A , 表面安装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 732-2674 | Standard Package | 500 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85366930 | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 250 V ac | Current Rating (Max) | 3A |
| Insulation Resistance | 1000 MOhms | ||
Mechanical
| Color | Black | Pitch | 0.100" (2.54mm) |
| Weight | 0.0006 | Packaging | Bulk |
| Termination | Solder | Contact Type | Male Pin |
| Mounting Type | Through Hole, Right Angle | Connector Type | Header, Unshrouded |
| Contact Finish | Gold | Number of Rows | 1 |
| Contact Material | Copper Alloy | Housing Material | Polybutylene Terephthalate (PBT) |
| Termination Style | Through Hole | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 10 | Contact Termination | :Through Hole Right Angle |
| Number of Positions | 10 | Contact Length - Mating | 0.236" (6.00mm) |
Product Info
| Type | Board to Board | Gender | :Header |
| Series | 613 | Product Type | Headers |
| Application Specifics | Board-to-Board | Number of Positions Loaded | All |
Environmental
| Operating Temperature | - 40 C to + 125 C | ||
Documents & Media
Online Document
Online Document
PDF Document
Online Document
PDF Document
PDF Document
Similar Parts

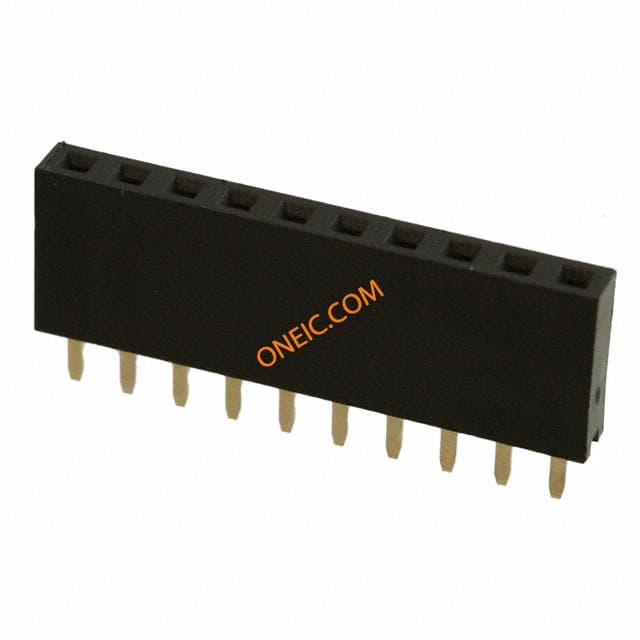

61301011821
Wurth Electronics Inc
CONN HEADER 10POS SOCKET 2.54MM Headers & Wire Housings WR-PHD Header 10P Socket SOCKET, 2.54MM, VERT, 10WAY
$3.2103
Details

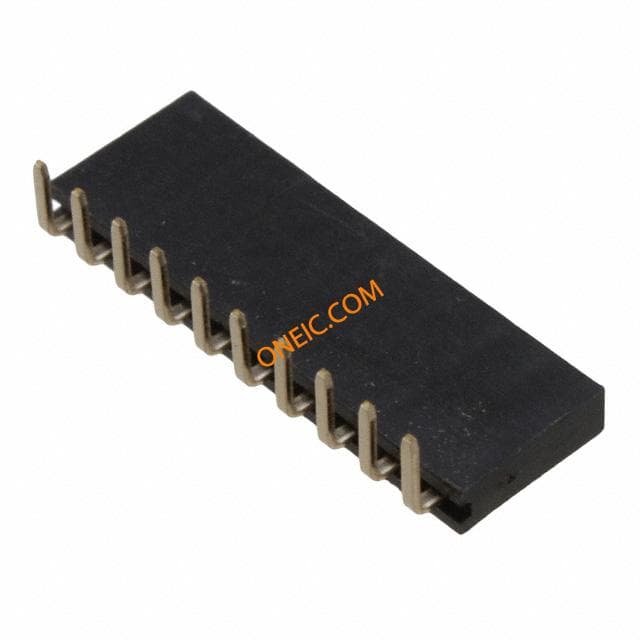

613010143121
