61202622021
| Manufacturer | |
| Description | HEADER 26POS PIN LATCH PCB 2ROW Wurth Elektronik 612 Series 2.54mm Pitch 26 Way 2 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings WR-BHD 2.54mm Header 26POS w/ Short Lever HEADER, 2.54MM, S/LEVER, 26WAY Wurth Elektronik WR-BHD 系列 2.54mm节距 26路 (2排) 直 PCB 针座, 焊接端接, 3A , 表面安装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 732-2682 | Standard Package | 96 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85366930 | Material Flammability Rating | UL 94 V-0 |
Electrical
| Range deg/s | :WURTH ELEKTRONIK - WR-BHD Series | Voltage Rating | 250 V ac |
| Current Rating (Max) | 3A | Insulation Resistance | 1000 MOhms |
Mechanical
| Color | Black | Pitch | 0.100" (2.54mm) |
| Weight | 0.00641 | Packaging | Tray |
| Row Spacing | 0.100" (2.54mm) | Termination | Solder |
| Contact Type | Male Pin | Mounting Type | Through Hole |
| Connector Type | Header, Shrouded | Contact Finish | Gold |
| Fastening Type | Latch, Short/Eject Hooks | Number of Rows | 2 |
| Contact Material | Copper Alloy | Housing Material | Polybutylene Terephthalate (PBT) |
| Termination Style | Through Hole | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 26 | Contact Termination | :Through Hole Vertical |
| Number of Positions | 26 | ||
Product Info
| Type | Wire to Board | Gender | :Header |
| Series | 612 | Product Type | Headers |
| Application Specifics | Wire-to-Board | Number of Positions Loaded | All |
Environmental
| Operating Temperature | - 40 C to + 125 C | ||
Documents & Media
Online Document
Online Document
Online Document
PDF Document
PDF Document
PDF Document
Similar Parts

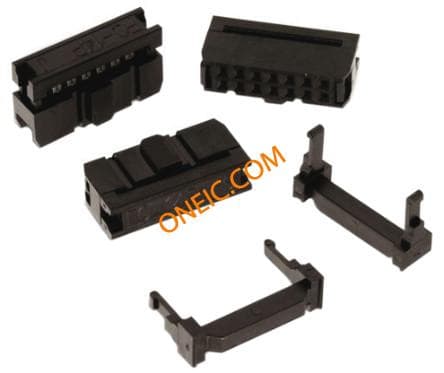

61202623021
