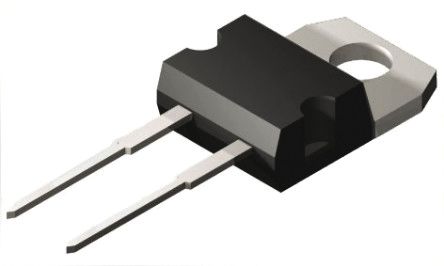

C3D06060F
| Manufacturer | |
| Description | Wolfspeed 肖特基 二极管, 7A 600V, 2针 TO-220封装 Schottky Diodes & Rectifiers SIC SCHOTTKY DIODE 600V, 6A |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Schottky Silicon Carbide Diodes | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage - Supply | 2.4V | Number of Elements | 1 |
| Power - Average Forward | 17 W | Power Dissipation (Max) | 17W |
| Voltage Regulation - Load | 600 V | Current - Peak Pulse (8/20us) | 200 A |
| Current - Reverse Leakage @ Vr | 200µA | Current - DC Forward (If) (Max) | 6 A |
| Current - Average Rectified (Io) | 7A | Current - Peak Pulse (10/1000us) | 200A |
| Voltage - Reverse Standoff (Typ) | 600V | ||
Mechanical
| Width | 16.07mm | Height | 4.9mm |
| Length | 10.3mm | Mounting Type | 通孔 |
| Mounting Style | Through Hole | Number of Pins | 2 |
| Package / Case | TO-220-2 FP | Package Quantity | TO-220 |
| Size / Dimension | 10.3 x 16.07 x 4.9mm | ||
Product Info
| Diode Type | 碳化硅肖特基 | Technology | SiC |
| Manufacturer | Wolfspeed / Cree | Configuration | Single |
Environmental
| Operating Temperature | +175 °C | ||
