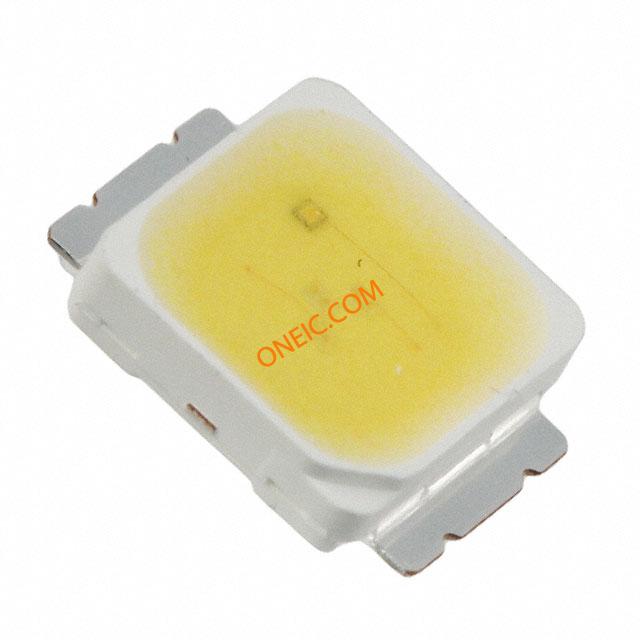

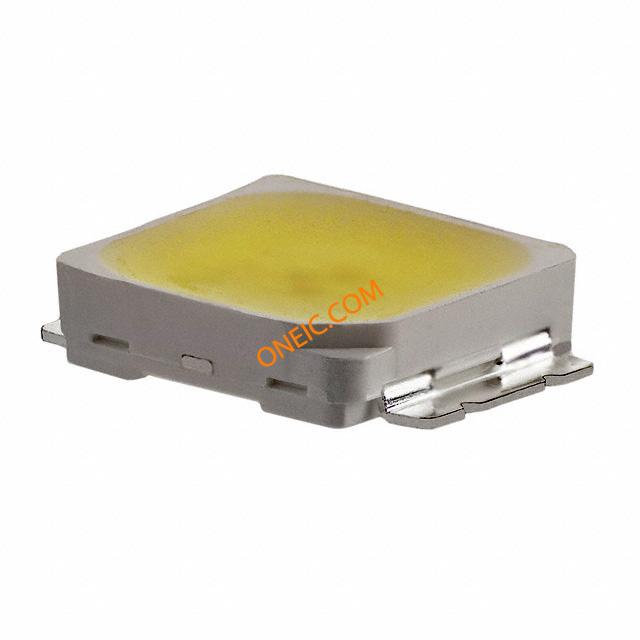

MX3SWT-A1-0000-000AE7
| Manufacturer | |
| Description | High Power LEDs - White XLAMP MX3 LED WT 87.4LM 3000K LED Uni-Color White 2-Pin PLCC LED WARM WHITE 2900K XLAMP SMD CREE MX3S WARM WHITE 87.4 LM |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | MX3SWT-A1-0000-000AE7CT | Standard Package | 1,400 |
| Standard Package Name | PLCC | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85414010 | Rad Hardened | No |
Electrical
| Lamp Type | :- | Lamp Output | Yes |
| Luminous Flux | 87.4 lm | Viewing Angle | 120 deg |
| Current - Output | 115mA | Voltage - Supply | 10.7V |
| Wavelength - Peak | Not Required nm | Number of Elements | 1 |
| Current - Trip (It) | 350 mA | LED Forward Current | 115 mA |
| LED Forward Voltage | 10.7 V | Current Rating (Max) | 175mA |
| Wavelength - Dominant | Not Required nm | Lumens/Watt @ Current - Test | 74 lm/W |
| Flux @ 25degC, Current - Test | 91 lm (87 lm ~ 94 lm) | Flux @ 85degC, Current - Test | 77 lm |
| Current - DC Forward (If) (Max) | :150mA | ||
Mechanical
| Color | White | Depth | 5 mm |
| Shape | Rectangular | Width | 5 mm |
| Height | 1.35 mm | Length | 5 mm |
| Weight | 0.001 | LED Color | :Warm White |
| Packaging | Reel | Lamp Color | 3000 K |
| Lead Style | Gull-wing | Lens Style | Rectangular |
| Light Color | Warm White | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :2 |
| Optic Material | :PLCC | Package / Case | 2-SMD, Gull Wing Tabs |
| Package Cooled | SMD | Length - Overall | 5 mm |
| Package Quantity | PLCC | Illumination Color | Warm White |
| Number of Positions | 2 | Shell Size - Insert | 1.35 |
| CRI (Color Rendering Index) | 80 | ||
Product Info
| Type | Uni-Color | Series | :XLamp MX-3 |
| CCT (K) | 3000K (2850K ~ 3250K) | DELETED | Compliant |
| Main Purpose | Chip LED | Number of LEDs | 1 |
| Printed Circuit Board | 2 | ||
Environmental
| Thermal Resistance of Package | 11°C/W | Luminous Flux @ Current/Temperature | 110 lm |
