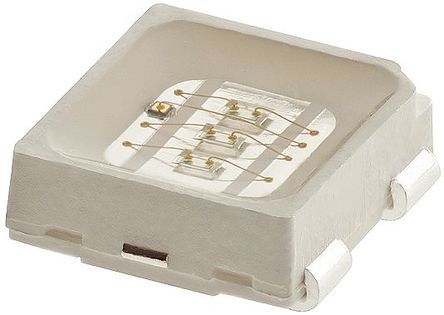

MLEGRN-A1-0000-000001
| Manufacturer | |
| Description | 高出力LED - 単色 Green 520-535nm 35.2lm @ 150mA LED Uni-Color Green 4-Pin SMD T/R LED HIGH BRIGHTNESS High Power LEDs - Single Color Green 520-535nm 35.2lm @ 150mA LED, XLAMP, GREEN, MLE, 30.6LM Cree XLamp ML-E 系列 绿色 (535 nm 主波长) 中功率 LED , 表面安装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | MLEGRN-A1-0000-000001CT | Standard Package | 1,400 |
| Standard Package Name | SMD | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85414010 | Rad Hardened | No |
Electrical
| Lamp Type | :- | Wavelength | 528nm (520nm ~ 535nm) |
| Lamp Output | Yes | Luminous Flux | 30.6lm(Min) |
| Power - Rated | 1.6 W | Viewing Angle | 125° |
| Current - Output | 150mA | Voltage - Supply | 3.45V |
| Number of Elements | 1 | Current - Trip (It) | 150 mA |
| LED Forward Current | 350 mA | LED Forward Voltage | 3.45 V |
| Current Rating (Max) | 350mA | Wavelength - Dominant | 535 nm |
| Lumens/Watt @ Current - Test | 64 lm/W | Flux @ 25degC, Current - Test | 33 lm (31 lm ~ 35 lm) |
| Flux @ 85degC, Current - Test | 31 lm | Current - DC Forward (If) (Max) | :350mA |
| Current - Peak Pulse (10/1000us) | 350 | Voltage - Gate Trigger (Vgt) (Max) | -5 V |
Mechanical
| Color | Green | Depth | 3.15 mm |
| Shape | Rectangular | Width | 3.15 |
| Height | 1.2 mm | Weight | 0.0001 |
| LED Color | :Green | Packaging | Tape and Reel |
| Lead Style | J-Lead | Lens Style | Rectangular |
| Light Color | Green | Mounting Type | Surface Mount |
| Mounting Style | Top Mount | Number of Pins | :4 |
| Optic Material | :PLCC | Package / Case | 4-SMD, J-Lead Exposed Pad |
| Package Cooled | SMD | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 3.5 mm | Package Quantity | SMD |
| Illumination Color | Green | Number of Positions | 4 |
| Shell Size - Insert | 1.2 | ||
Product Info
| Type | Uni-Color | Series | ML-E |
| DELETED | Compliant | Main Purpose | Chip LED |
| Number of LEDs | 1 | Printed Circuit Board | 4 |
Environmental
| Operating Temperature | 150 | Thermal Resistance of Package | 15°C/W |
| Luminous Flux @ Current/Temperature | 51 lm | ||
