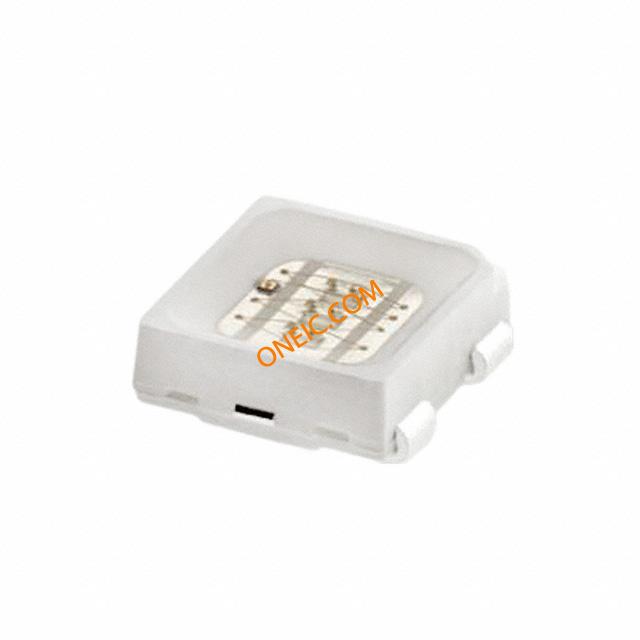

MLEBLU-A1-0000-000T01
| Manufacturer | |
| Description | High Power LEDs - Single Color Blue 465-485nm 10.7lm @ 150mA LED Uni-Color Blue 4-Pin SMD T/R LED HIGH BRIGHTNESS LED, HB, XLAMP ML-E, BLUE, 10.7LM, FULL REEL LED, XLAMP, BLUE, MLE, 10.7LM Cree XLamp ML-E 系列 蓝色 (485 nm 主波长) 中功率 LED , 3.2 V, 125 °视角, 表面安装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | MLEBLU-A1-0000-000T01CT | Standard Package | 1,400 |
| Standard Package Name | SMD | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85414010 | ||
Electrical
| Lamp Type | :- | Wavelength | 475nm (465nm ~ 485nm) |
| Lamp Output | Yes | Luminous Flux | 10.7lm(Min) |
| Power - Rated | 1.6 W | Viewing Angle | 125° |
| Current - Output | 150mA | Voltage - Supply | 3.2V |
| Wavelength - Peak | :485nm | LED Forward Current | 350 mA |
| LED Forward Voltage | 3.2 V | Current Rating (Max) | 350mA |
| Wavelength - Dominant | 485(Max) | Lumens/Watt @ Current - Test | 25 lm/W |
| Flux @ 25degC, Current - Test | 12 lm (11 lm ~ 14 lm) | Flux @ 85degC, Current - Test | 11 lm |
| Current - DC Forward (If) (Max) | :500mA | Current - Peak Pulse (10/1000us) | 350 |
| Voltage - Gate Trigger (Vgt) (Max) | -5 | ||
Mechanical
| Color | Blue | Width | 3.15 |
| Weight | 0 | LED Color | :Blue |
| Packaging | Tape and Reel | Lead Style | J-Lead |
| Lens Style | Rectangular | Mounting Type | Surface Mount |
| Mounting Style | Top Mount | Number of Pins | :4 |
| Optic Material | :PLCC | Package / Case | 4-SMD, J-Lead Exposed Pad |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 3.5 |
| Package Quantity | SMD | Illumination Color | Blue |
| Number of Positions | 4 | Shell Size - Insert | 1.2 |
Product Info
| Type | Uni-Color | Series | :XLamp ML-E |
| Number of LEDs | 1 | Printed Circuit Board | 4 |
Environmental
| Operating Temperature | 150 | Thermal Resistance of Package | 11°C/W |
| Luminous Flux @ Current/Temperature | 21 lm | ||
