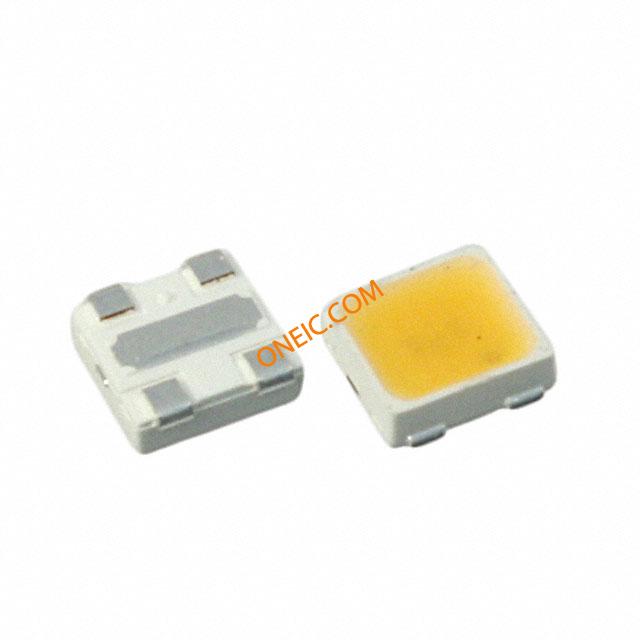

MLEAWT-A1-R250-0002E7
| Manufacturer | |
| Description | High Power LEDs - White XLAMP MLE LED WARMWT 39.8LM LED WARM WHITE 3000K DIFF SMD LED, HI BRIGHT, 39.8LM, WARM WHITE |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | MLEAWT-A1-R250-0002E7CT | Standard Package | 250 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85414010 |
Electrical
| Lamp Type | :- | Luminous Flux | 39.8 lm |
| Viewing Angle | 120 deg | Current - Output | 150mA |
| Voltage - Supply | 3.2V | LED Forward Current | 150 mA |
| LED Forward Voltage | 3.2 V | Current Rating (Max) | 175mA |
| Lumens/Watt @ Current - Test | 90 lm/W | Flux @ 25degC, Current - Test | 43 lm (40 lm ~ 46 lm) |
| Flux @ 85degC, Current - Test | 39 lm | Current - DC Forward (If) (Max) | :175mA |
Mechanical

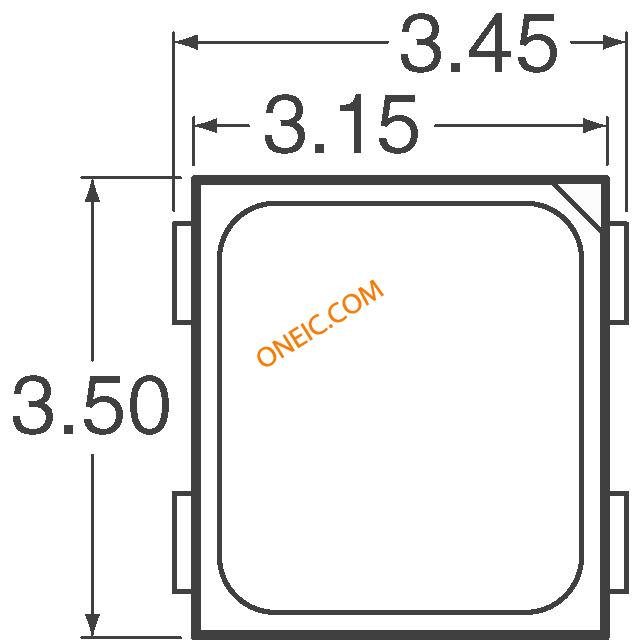

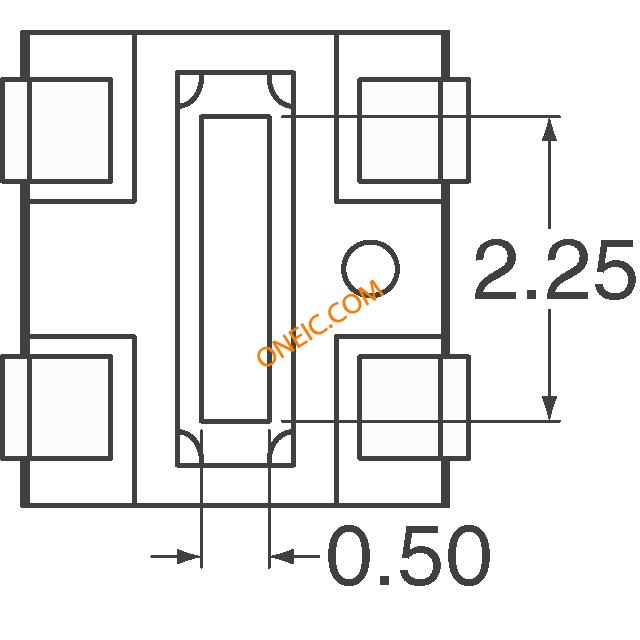

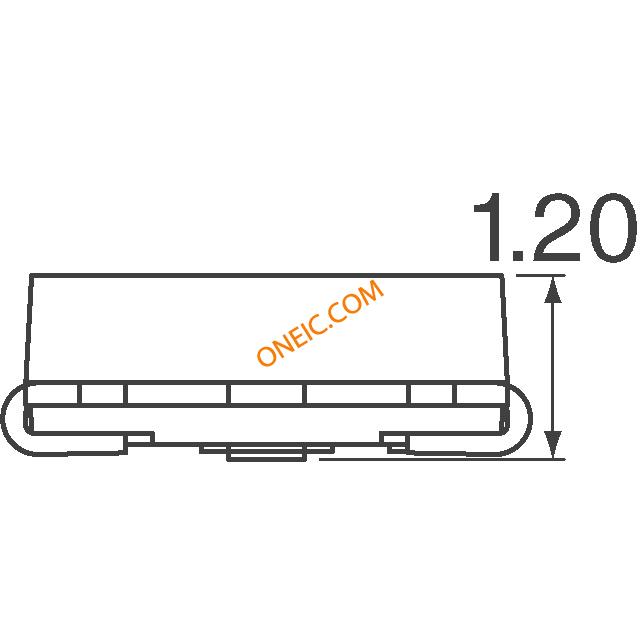

| Width | 3.5 mm | Height | 1.2 mm |
| Length | 3.5 mm | Weight | 0.01 |
| LED Color | :Warm White | Packaging | Reel |
| Lamp Color | 3000 K | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :4 |
| Package / Case | 4-SMD, J-Lead Exposed Pad | Illumination Color | Warm White |
| CRI (Color Rendering Index) | 80 | ||
Product Info
| Series | :XLamp ML-E | CCT (K) | 3000K (2850K ~ 3250K) |
Environmental
| Thermal Resistance of Package | 11°C/W | Luminous Flux @ Current/Temperature | 112 lm |
