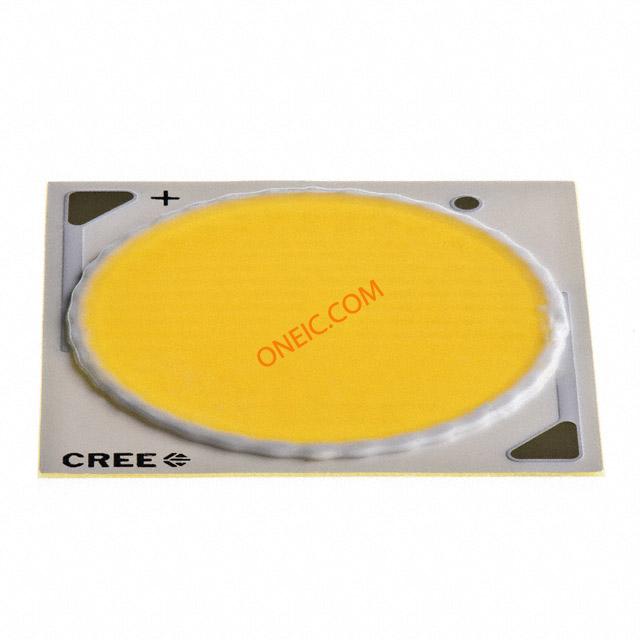

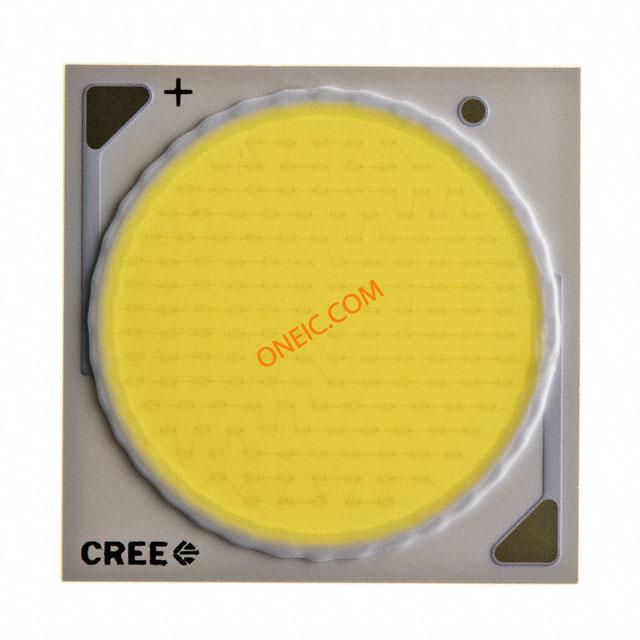

CXA3050-0000-000N00W430F
| Manufacturer | |
| Description | CREE XLAMP CXA3050 23MM WHITE High Power LEDs - White Warm White, 3000K 5843lm, 1.4A, 80CRI LED Uni-Color White 2-Pin SMD Tray LED, HB, XLAMP CXA, EASY WHITE, 5888LM LED, XLAMP, CXA3050, EASY WHITE, 5888LM Cree 白色 3000K COB LED , 36 V, 2500mA, 115 °视角 板上芯片 |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 20 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85414010 |
| Rad Hardened | No | ||
Electrical
| Voltage | 37V | Wavelength | 3000K |
| Lamp Output | Yes | Luminous Flux | 5225 lm |
| Viewing Angle | 115 deg | Current - Output | 1.4A |
| Driver Circuitry | No | Voltage - Supply | 37V |
| Wavelength - Peak | Not Required nm | Number of Elements | 1 |
| Current - Trip (It) | 1400 mA | LED Forward Current | 1400 mA |
| LED Forward Voltage | 37 V | Current Rating (Max) | 2.5A |
| Wavelength - Dominant | Not Required nm | Power Dissipation (Max) | :100W |
| Light Emitting Surface (LES) | 23.00mm Diameter | Lumens/Watt @ Current - Test | 104 lm/W |
| Flux @ 85degC, Current - Test | 5408 lm (5225 lm ~ 5590 lm) | Current - DC Forward (If) (Max) | :2.5A |
Mechanical
| Color | White | Shape | Circular |
| Width | 27.35 mm | Height | 1.7 mm |
| Length | 27.35 mm | Weight | 0 |
| LED Color | :White | Packaging | Tray |
| Lamp Color | 3000 K | Light Color | White |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Optic Material | :- | Package Cooled | SMD |
| Connector Usage | No | Size / Dimension | 27.35mm L x 27.35mm W |
| Illumination Color | Warm White | Number of Positions | 2 |
| CRI (Color Rendering Index) | 80 | ||
Product Info
| Type | Uni-Color | Series | CXA3050 |
| CCT (K) | :3000K | Main Purpose | Chip LED |
| Configuration | Square | ||
Environmental
| Operating Temperature | - 40 C | Luminous Flux @ Current/Temperature | 6094 lm |
