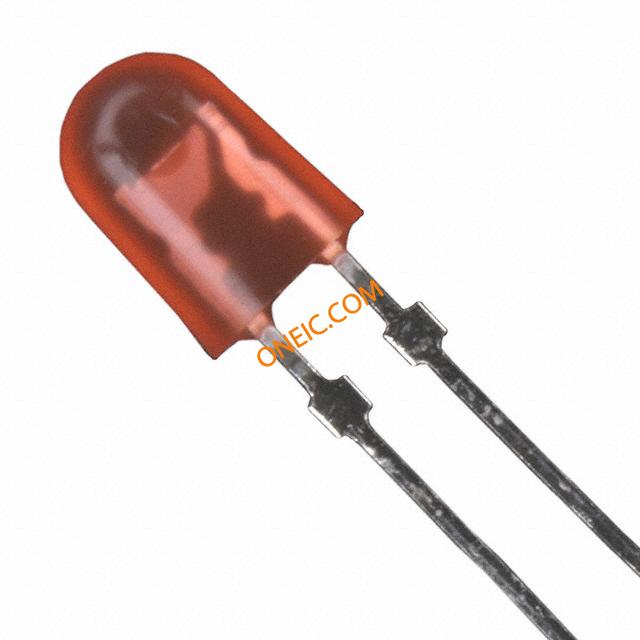

C5SMF-RJS-CT0W0BB2
| Manufacturer | |
| Description | Standard LEDs - Through Hole 100/40DG RD STNDOF BRT LAMP 621NM 2.1V LED Uni-Color Red 2-Pin T-1 3/4 Ammo LED 5MM OVAL RED 621NM LED, 5MM, OVAL Cree 红色 (624 nm 主波长) LED , 2.6 V, 4.2 cd, 通孔安装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | C5SMF-RJS-CT0W0BB2CT | Standard Package | 2,500 |
| Standard Package Name | T-1 3/4 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85414010 | Rad Hardened | No |
Electrical
| Lamp Type | :5mm | Optic Size | 5 mm |
| Lamp Output | Yes | Luminous Flux | 2200mcd |
| Power - Rated | 130 W | Viewing Angle | 100 deg |
| Current - Output | 20mA | Voltage - Supply | 2.1V |
| Wavelength - Peak | :624nm | Number of Elements | 1 |
| Current - Trip (It) | 20 mA | LED Forward Current | 20 mA |
| LED Forward Voltage | 2.1 V | Millicandela Rating | 2640mcd |
| Wavelength - Dominant | 621 nm | Power Dissipation (Max) | 130 |
| Current - DC Forward (If) (Max) | :20mA | Current - Peak Pulse (10/1000us) | 50 |
| Voltage - Gate Trigger (Vgt) (Max) | 5 V | ||
Mechanical
| Color | Red | Depth | 3.7 mm |
| Shape | Oval | Width | 3.7 |

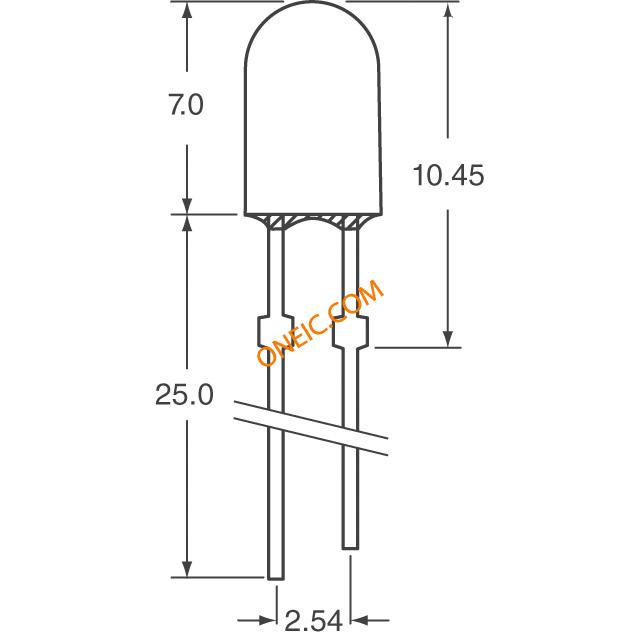

| Height | 7.00mm | Weight | 0.01 |
| LED Color | :Red | Packaging | Ammo |
| Lens Color | Red Clear | Lens Style | Oval |
| Light Color | Red | Lens Diameter | 5 mm |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Package / Case | Radial | Package Cooled | T-1 3/4 |

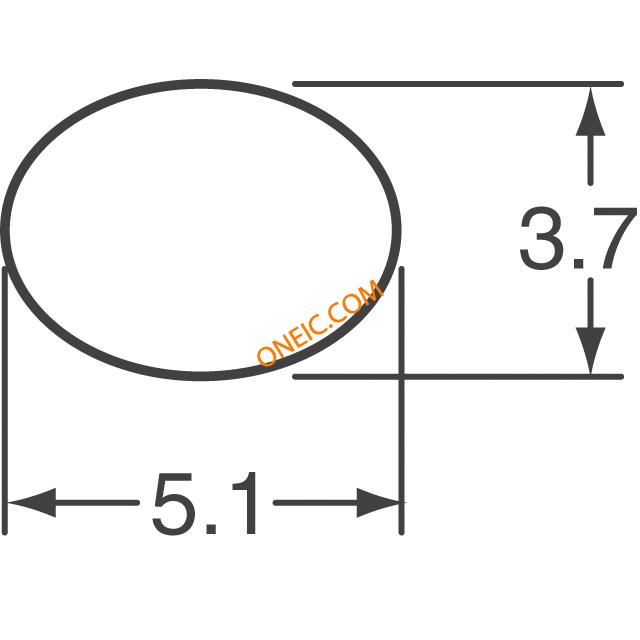

| Lens Style/Size | Oval with Domed Top, 5.1mm x 3.7mm | Length - Overall | 5.1 mm |
| Package Quantity | T-1 3/4 | Illumination Color | Red |
| Number of Positions | 2 | Shell Size - Insert | 7 |
Product Info
| Type | Uni-Color | Lens Type | Diffused, Tinted |
| Main Purpose | Standard LED | Number of LEDs | 1 |
| Printed Circuit Board | 2 | ||
Environmental
| Operating Temperature | + 95 C | Luminous Flux @ Current/Temperature | 2200 mcd |
