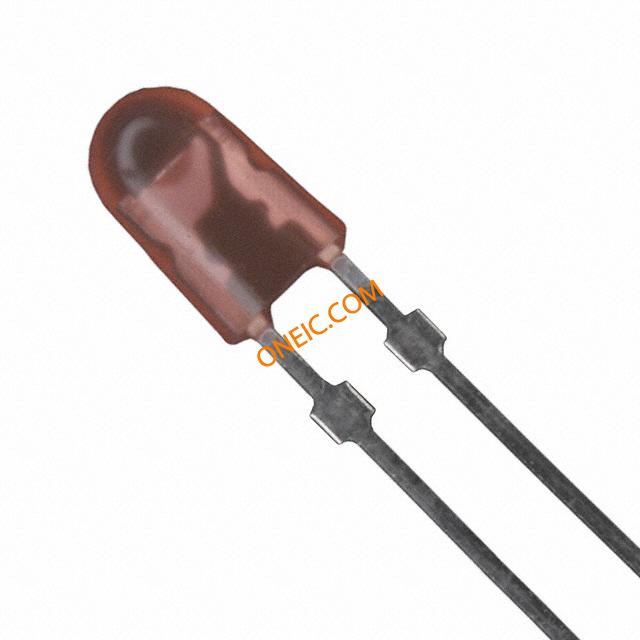

C4SMF-RJS-CT0W0BB2
| Manufacturer | |
| Description | Standard LEDs - Through Hole 100/45DG RD STNDOF BRT LAMP 621NM 2.1V LED Uni-Color Red 2-Pin Ammo LED 4MM OVAL RED 621NM LED, 4MM, OVAL Cree Screen Master 系列 红色 (624 nm 主波长) LED , 2.6 V, 4.2 cd, 通孔安装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | C4SMF-RJS-CT0W0BB2CT | Standard Package | 3,000 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85414010 | Rad Hardened | No |
Electrical
| Lamp Type | :4mm | Optic Size | 4 mm |
| Lamp Output | Yes | Luminous Flux | 1900mcd |
| Power - Rated | 130 W | Viewing Angle | 100 deg |
| Current - Output | 20mA | Voltage - Supply | 2.1V |
| Wavelength - Peak | :624nm | Number of Elements | 1 |
| Current - Trip (It) | 20 mA | LED Forward Current | 20 mA |
| LED Forward Voltage | 2.6 V | Millicandela Rating | 2640mcd |
| Wavelength - Dominant | 621 nm | Power Dissipation (Max) | 130 |
| Current - DC Forward (If) (Max) | :20mA | Current - Peak Pulse (10/1000us) | 50 |
| Voltage - Gate Trigger (Vgt) (Max) | 5 V | ||
Mechanical
| Color | Red | Depth | 3.1 mm |
| Shape | Oval | Width | 3.1 |
| Height | 6.30mm | Weight | 0.01 |
| LED Color | :Red | Packaging | Ammo |
| Lens Color | Water Clear | Lens Style | Oval |
| Light Color | Red | Lens Diameter | 4 mm |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Package / Case | Radial | Package Cooled | PTH 4 mm Oval |
| Lens Style/Size | Oval with Domed Top, 4.2mm x 3.1mm | Length - Overall | 4.2 mm |
| Illumination Color | Red | Number of Positions | 2 |
| Shell Size - Insert | 6.3 | ||
Product Info
| Type | Screen Master 4-mm Oval Color LEDs | Series | Screen Master |
| Lens Type | Diffused, Tinted | Main Purpose | Standard LED |
| Number of LEDs | 1 | Printed Circuit Board | 2 |
Environmental
| Operating Temperature | + 95 C | Luminous Flux @ Current/Temperature | 1900 mcd |
