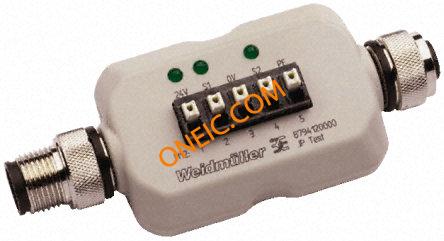

8794120000
| Manufacturer | |
| Description | JP TES -EA JACKPAC TEST JP TEST |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Compliant | IEC Standard | 27-37-16-01 |
| Standard Number | 30-21-18-01 | Protection Features | IP67 |
Electrical
| Frequency | 27-20-11-90 | Indicator | Green LED |
| Current - Test | 2 A | Voltage - Supply | 18 → 30 V dc |
| Current Rating - DC | 2.2 mA (LED) | Voltage - Supply, Digital | 18...24...30 V DC |
Mechanical
| Width | 36 mm | Height | 14.4 mm |
| Length | 83 mm | Weight | 36 g |
| Termination | M12 plug/socket, A-coded | Mounting Type | Plug In |
| Width (Inches) | 1.417 inch | Height (Inches) | 0.567 inch |
| Length (Inches) | 3.268 inch | ||
Product Info
| Type | JP TEST | ETIM 6*0 | EC001437 |
| GTIN (EAN) | 4032248483969 | Description | Retaining clipJP CLIP M: 8778490000 |
| Accessory Type | Test Adapter | Specifications | 2A |
| Engineering Data | EPLAN | Firmware Version | JACKPAC, Relays, Rated control voltage: 18...24...30 V DC, Continuous current: 2 A, M12 plug/socket, A-coded |
Environmental
| Temperature | 0 °C...+55 °C | ET (Volt-Time) | EC001134 |
| Ingress Protection | 27-20-11-90 | Operating Temperature | +55°C |
