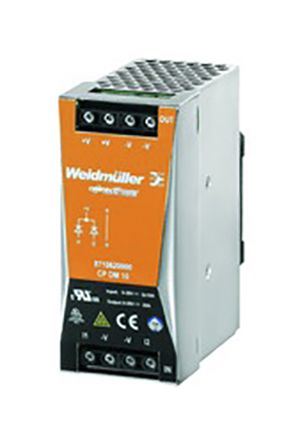

8710620000
| Manufacturer | |
| Description | CP DM 10, 10A DIODE MODULE POWER SUPPLY Weidmuller 电池模块 , 使用于PROeco 电源 |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Protection | 过电压 |
| IEC Standard | 27-37-10-10 | Certification | E258476 |
| Approval Agency | E255651 | Standard Number | 30-21-18-01 |
| Protection Features | IP20 | Declaration of Conformity | DE_PA5200_160512_002.pdf |
Electrical
| Frequency | 27-04-90-04 | Efficiency | 95.5% |
| Input Range | 4 mm² | Output Power | 480 W |
| Output Range | 0.13 mm² | Voltage Rating | Uin - 0.5 V typical |
| Current - Output | 0...20 A max. or 10 A max. for redundancy operation | Voltage - Supply | 10 → 40V 直流 |
| Current - Input Bias | 2 x 0...10 A max. | Voltage - Input (Min) | 40 V DC max. |
Mechanical
| Depth | 100 mm | Width | 55.5 mm |
| Height | 125 mm | Weight | 399 g |
| Termination | Screw connection | Depth (Inches) | 4.331 inch |
| Mounting Style | DIN 卡轨安装 | Width (Inches) | 2.185 inch |
| Height (Inches) | 4.921 inch | Termination Style | 螺钉 |
| Installation Distance | horizontally, on terminal rail TS 35 | ||
Product Info
| Type | CP DM 10 | ETIM 6*0 | EC000683 |
| File Type | Warranty information | GTIN (EAN) | 4032248385706 |
| Accessory Type | Diode Module | Engineering Data | EPLAN |
| Firmware Version | Diode module | Installation Type | Clearance: side ≥ 2 cm; above/below ≥ 10 cm |
| For Use With/Related Products | Connect Power Ecoline Power Supplies | ||
Environmental
| ET (Volt-Time) | EC001039 | Protection Range | 过温保护，过载保护，短路保护 |
| Ingress Protection | 27-24-22-13 | Operating Temperature | -10 °C...55 °C |
