1918770000
| Manufacturer | |
| Description | Conn Modular Terminal Blocks 4 POS ST 30A TERM BLOCK PDK 2.5/4 PUSH IN Non-Fuse DIN Rail Terminal, 28A, 800V, Blue ,Plug In Termination TERMINAL, PUSH-IN, PDK2.5/4 |
| Category |
Business
| Other Names | 281-2578 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | Material Flammability Rating | UL94 V-0 |
Electrical
| Voltage - UL | 600V | Current - IEC | 24A |
| Voltage - IEC | 800V | Voltage Rating | 800 V |
| Current Rating (Max) | 28A | ||
Mechanical
| Color | Beige | Pitch | :5.1mm |
| Weight | 0.016 | Wire Gauge | 10-28 AWG |
| Termination | Plug In | Housing Color | Dark Beige |
| Mounting Type | Straight | Connector Type | :Terminal Block, DIN Rail |
| Contact Finish | :- | Number of Rows | 4 |
| Contact Material | :Copper Alloy | Stripping Length | 12mm |
| Terminal - Width | 5.1mm | Termination Style | Push In, Spring |
| Color - Connectors | Blue | Number of Contacts | :4 |
| Number of Positions | 4 | Material - Insulation | Thermoplastic, Wemid |
| Wire Gauge or Range - AWG | 10-26 AWG | Wire Gauge or Range - mm2 | 0.5-6mm² |
| 1st Connector Mounting Type | :DIN Rail | ||
Product Info
| Type | Modular Terminal Blocks | Series | PDK |
| Number of Levels | 2 | Number of Circuits | 2 |
Documents & Media
Similar Parts
1635000000
weidmuller
WS 10/5 MC NEUTRAL -BX = 720 EA TAG MARKER 10X5MM WHT 720/BX Inkjet Printer Multi Card Markers TERMINAL MARKER, W/I/Z SERIES CONNECTORS, 5MM
FSD81-12-C
panduit
Ferrules Terminal 12AWG 20mm 5.4mm Tin Terminals INS FERRLE SNGL WIRE 12 AWG .47 FERRULE INS VNL AWG12 GY 5/8" InsulatedFerrule,singlewire,12AWG,.47"pinlength,grayDINendsleeve Insulated Ferrule, Single Wire, 12 AWG (4.0mm), .47"(12.0mm) Pin Length, Gray DIN End Sleeve, Pack of 100
1919720000
weidmuller
Connector Accessories End Plate Wemid Dark Beige TERMINAL END PLATE 2.5MM DRK BGE END PLATE, PAP PDK 2.5/4
9540000000
weidmuller
Connector Accessories End Bracket Dark Beige BRACKET END FOR TS35 TERMINAL Weidmuller 9540000000 End Bracket Terminal Block, Series: Z END BRACKET, TS 35 DIN MOUNTING RAIL
9037530000
weidmuller
Connector Accessories Wire End Ferrule With Plastic Collars Gray FERRULE H 4.0/22D ZH GREY FERRULE, TWIN ENTRY, 4MM Bootlace ferrule; insulated, double; copper; 4mm2; 12mm; tinned
1608860000
weidmuller
Conn Pluggable Jumper M 2 POS 5.1mm ST JUMPER 25A 2POS WTR 2.5/ZZ Weidmuller 1608860000 Cross Connector Terminal Block, Series: ZQV Acce Comb bridge; Application: ZDU2.5
1608870000
weidmuller
Conn Pluggable Jumper M 3 POS 5.1mm ST JUMPER 25A 3POS WTR 2.5/ZZ Weidmuller 1608870000 Cross Connector Terminal Block, Series: ZQV TERMINAL BLOCK JUMPER, 3WAY, 5.1MM Comb bridge; Application: ZDU2.5
1608940000
weidmuller
Conn Pluggable Jumper M 10 POS 5.1mm ST JUMPER 25A 10POS WTR 2.5/ZZ Weidmuller 1608940000 Cross Connector Terminal Block, Series: ZQV TERMINAL BLOCK JUMPER, 10WAY, 5.1MM Comb bridge; Application: ZDU2.5
1609801044
weidmuller
Fuse Terminal Block 15A 500V Screw DIN Rail DEK 5/5 MULTI CARD 1000/BX TERMINAL BLOCK MARKER, 5MM, WHT, MULTICARD 1000
1792000000
weidmuller
WS 10/5 MC MIDDLE NEUTRAL -BX = 720 EA TERMINAL MARKER WS 10/5 MC Inkjet Printer Multi Card Markers

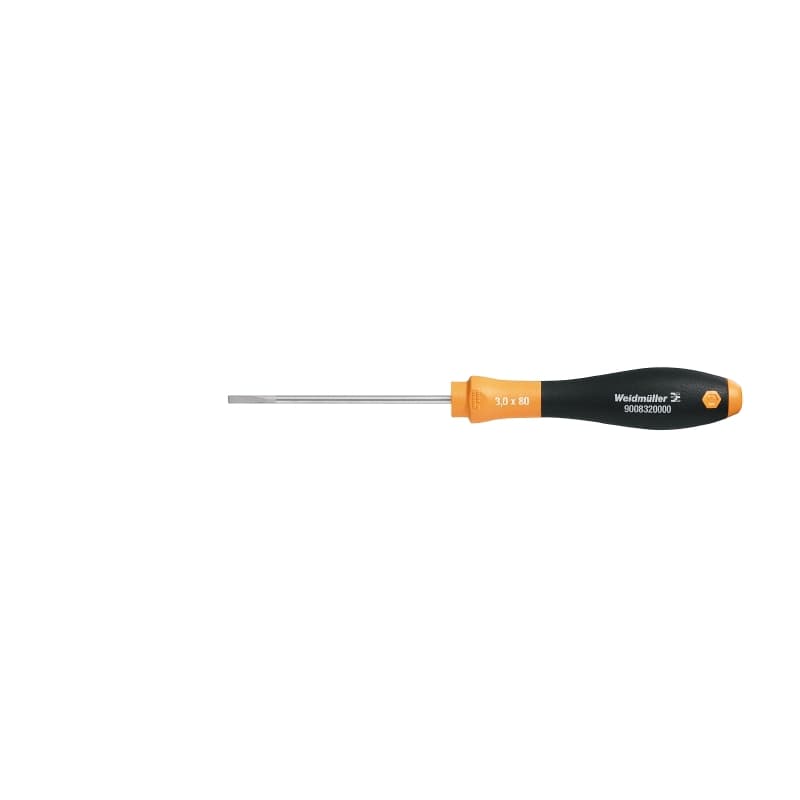

9008320000
