1907020000
| Manufacturer | |

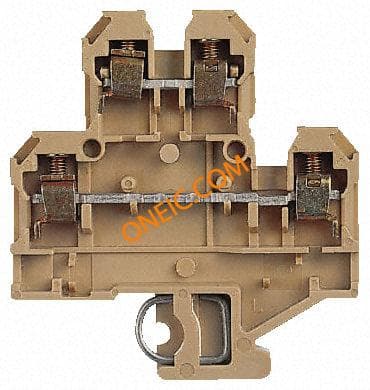

| Description | TERMINAL DK 4 QV/EN |
| Category |
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Material Flammability Rating | UL94 V-2 |
Electrical
| Current - UL | 30A | Voltage - UL | 300V |
| Current - IEC | 32A | Voltage - IEC | 500V |
Mechanical
| Color | Beige | Stripping Length | 12mm |
| Terminal - Width | 6.5mm | Termination Style | Screw |
| Number of Positions | 4 | Material - Insulation | Polyamide (PA66), Nylon 6/6 |
| Wire Gauge or Range - AWG | 10-22 AWG | Wire Gauge or Range - mm2 | 0.5-6mm² |
Product Info
| Type | Feed Through | Number of Levels | 2; Connected |
Documents & Media
