1896400000
| Manufacturer | |
| Description | Conn Feed-Thru 2 POS ST 75A TERM BLOCK PDU 16 PUSH IN Non-Fuse DIN Rail Terminal, 76A, 800V, Beige ,Push In Termination TERMINAL, PUSH-IN, PDU16, 2 WAY |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 281-2572 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | Material Flammability Rating | UL94 V-0 |
Electrical
| Current - UL | 76A | Voltage - UL | 600V |
| Current - IEC | 76A | Voltage - IEC | 800V |
| Voltage Rating | 800 V | Current Rating (Max) | 76A |
Mechanical
| Color | Beige | Depth | :12mm |
| Pitch | :12.1mm | Width | :48mm |
| Length | :78mm | Weight | 0.037 |
| Wire Gauge | 4-14 AWG | Termination | Push In |
| Housing Color | Dark Beige | Mounting Type | Straight |
| Connector Type | :Terminal Block, DIN Rail | Contact Finish | :- |
| Number of Rows | 2 | Contact Material | :- |
| Stripping Length | 14mm | Terminal - Width | 12.1mm |
| Termination Style | Push In, Spring | Color - Connectors | Beige |
| Number of Contacts | :2 | Number of Positions | 2 |
| Material - Insulation | Thermoplastic, Wemid | Wire Gauge or Range - AWG | :12AWG |
| Wire Gauge or Range - mm2 | 2.5-16mm² | 1st Connector Mounting Type | :DIN Rail |
Product Info
| Type | Feed-Thru | Series | PDU |
| Number of Levels | 1 | ||
Environmental
| Operating Temperature | +120°C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts

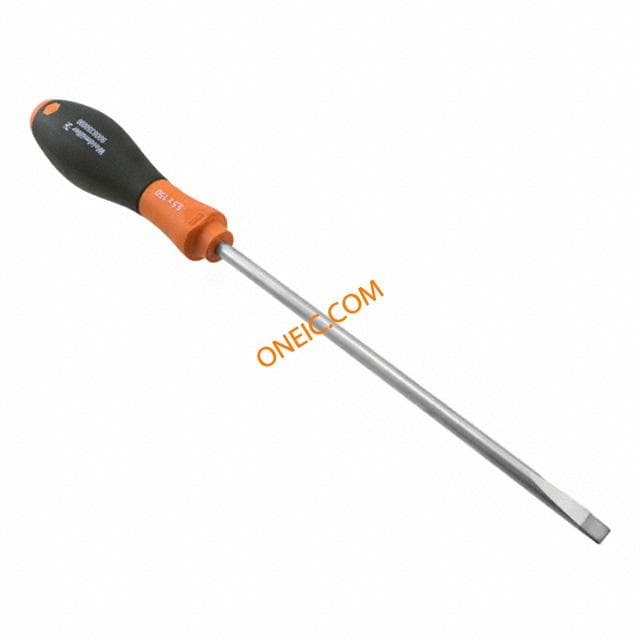

9008350000
