1896250000
| Manufacturer | |
| Description | Conn Feed-Thru 4 POS ST 30A TERMINAL PDU 2.5/4/4AN BL Non-Fuse DIN Rail Terminal, 32A, 800V, Blue ,Push In Termination TERMINAL, PUSH-IN, PDU2.5/4, 4 WAY |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | Material Flammability Rating | UL94 V-0 |
Electrical
| Current - UL | 30A | Voltage - UL | 600V |
| Current - IEC | 32A | Voltage - IEC | 800V |
| Voltage Rating | 800 V | Current Rating (Max) | 32A |
Mechanical
| Color | Blue | Pitch | :5.1mm |
| Weight | 0.012 | Wire Gauge | 10-26 AWG |
| Termination | Push In | Housing Color | Blue |
| Mounting Type | Straight | Connector Type | :Terminal Block, DIN Rail |
| Contact Finish | :- | Number of Rows | 4 |
| Contact Material | :- | Stripping Length | 12mm |
| Terminal - Width | 5.1mm | Termination Style | Push In, Spring |
| Color - Connectors | Blue | Number of Contacts | :4 |
| Number of Positions | 4 | Material - Insulation | Thermoplastic, Wemid |
| Wire Gauge or Range - AWG | 10-26 AWG | Wire Gauge or Range - mm2 | 0.5-6mm² |
| 1st Connector Mounting Type | :DIN Rail | ||
Product Info
| Type | Feed-Thru | Series | PDU |
| Number of Levels | 1 | Number of Circuits | 1 |
Environmental
| Operating Temperature | +120°C | ||
Documents & Media
Similar Parts
1635000000
weidmuller
WS 10/5 MC NEUTRAL -BX = 720 EA TAG MARKER 10X5MM WHT 720/BX Inkjet Printer Multi Card Markers TERMINAL MARKER, W/I/Z SERIES CONNECTORS, 5MM
1896320000
weidmuller
Connector Accessories End Plate Wemid Dark Beige TERMINAL END PLATE 2.5MM DRK BGE END PLATE, PAP 2.5/4/4AN P-series, End plate,PAP 2.5/4/4AN
FSD81-12-C
panduit
Ferrules Terminal 12AWG 20mm 5.4mm Tin Terminals INS FERRLE SNGL WIRE 12 AWG .47 FERRULE INS VNL AWG12 GY 5/8" InsulatedFerrule,singlewire,12AWG,.47"pinlength,grayDINendsleeve Insulated Ferrule, Single Wire, 12 AWG (4.0mm), .47"(12.0mm) Pin Length, Gray DIN End Sleeve, Pack of 100
1908960000
weidmuller
Conn Pluggable Jumper M 20 POS TERMINAL CROSS CONN ZQV 2.5/20
9540000000
weidmuller
Connector Accessories End Bracket Dark Beige BRACKET END FOR TS35 TERMINAL Weidmuller 9540000000 End Bracket Terminal Block, Series: Z END BRACKET, TS 35 DIN MOUNTING RAIL
9037530000
weidmuller
Connector Accessories Wire End Ferrule With Plastic Collars Gray FERRULE H 4.0/22D ZH GREY FERRULE, TWIN ENTRY, 4MM Bootlace ferrule; insulated, double; copper; 4mm2; 12mm; tinned
1916190000
weidmuller
Conn Test Adapter 1 POS Screw ST 1 Port TERMINAL TEST ADAPTER PDU 2.5/4
1608860000
weidmuller
Conn Pluggable Jumper M 2 POS 5.1mm ST JUMPER 25A 2POS WTR 2.5/ZZ Weidmuller 1608860000 Cross Connector Terminal Block, Series: ZQV Acce Comb bridge; Application: ZDU2.5
1608870000
weidmuller
Conn Pluggable Jumper M 3 POS 5.1mm ST JUMPER 25A 3POS WTR 2.5/ZZ Weidmuller 1608870000 Cross Connector Terminal Block, Series: ZQV TERMINAL BLOCK JUMPER, 3WAY, 5.1MM Comb bridge; Application: ZDU2.5
1608940000
weidmuller
Conn Pluggable Jumper M 10 POS 5.1mm ST JUMPER 25A 10POS WTR 2.5/ZZ Weidmuller 1608940000 Cross Connector Terminal Block, Series: ZQV TERMINAL BLOCK JUMPER, 10WAY, 5.1MM Comb bridge; Application: ZDU2.5
1609801044
weidmuller
Fuse Terminal Block 15A 500V Screw DIN Rail DEK 5/5 MULTI CARD 1000/BX TERMINAL BLOCK MARKER, 5MM, WHT, MULTICARD 1000

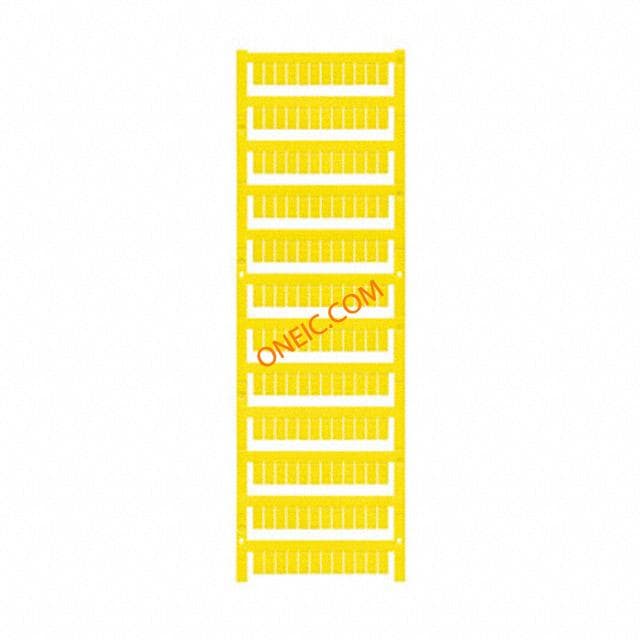

1773531687
weidmuller
Connector Accessories Connector Marker Polyamide Yellow TERMINAL MARKER WS 10/5 BLANK
1792000000
weidmuller
WS 10/5 MC MIDDLE NEUTRAL -BX = 720 EA TERMINAL MARKER WS 10/5 MC Inkjet Printer Multi Card Markers

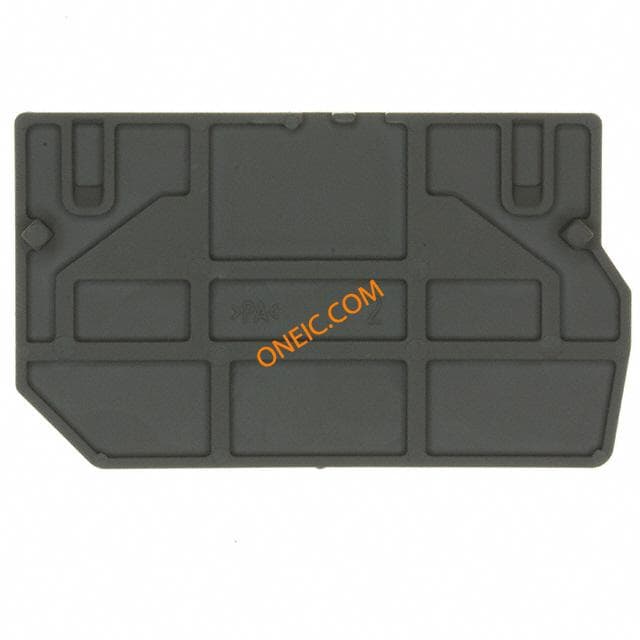

1896300000
