点击放大查看
1894780000
| Manufacturer | |
| Description | Conn Heavy-Duty Rectangular F 1 POS ST CONN FEMALE INSERT 1POS 2.5 CM |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standard Number | 30-21-18-01 |
| Material Flammability Rating | V-0 | ||
Electrical
| Shutter | Yes | Frequency | 27-44-02-05 |
| Number of Poles | 1 | ||
Mechanical
| Width | 11.4 mm | Height | 40.4 mm |
| Length | 34 mm | Weight | 18 g |
| Material | NBR | Packaging | Bulk |
| Contact Type | 4 mm | Body Material | PA 6.6 |
| Mounting Type | Straight | Connector Type | Module, Pneumatic |
| Width (Inches) | 0.449 inch | Height (Inches) | 1.591 inch |
| Length (Inches) | 1.339 inch | Housing Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Color - Connectors | Black | Number of Contacts | 1 |
| Insulation Material | PC glass-fibre reinforced (UL-listed and railway-certified) | Number of Positions | 1 |
| Total Length Supplied | 34 mm | ||
Product Info
| Type | Heavy-Duty Rectangular | Gender | RCP |
| Series | ConCept module | ETIM 6*0 | EC000438 |
| Hook Type | Only use PTFE hoses | GTIN (EAN) | 4032248509256 |
| Description | Accessories, see chapter J - Tools, see chapter K | Number of Axes | 1 |
| Firmware Version | Heavy Duty Connectors, HDC insert, ConCept module | Internal Connection | 2.5 mm |
| Descriptive Text Technical Data | When delivering liquids or gases of any type through pneumatic modules, it is very important to remember that no current-carrying modules should be mounted or be mounted later in the same housing. | ||
Environmental
| Pressure Type | 10 bar | ET (Volt-Time) | EC001121 |
| Ingress Protection | 27-14-34-19 | Operating Temperature | -20°C ~ 100°C |
| Maximum Temperature Limit | -40 °C ... 80 °C | ||
Documents & Media
PDF Document
Similar Parts
1758450000
weidmuller
HDC CONTACT INSERTS HDC-CR6-2B GREY
$69.4008
Details
1758530000
weidmuller
HDC CONTACT INSERTS HDC-CR16-5B-2 GREY
$70.3256
Details
1758510000
weidmuller
Connector Accessories Female Frame 7 Modules HDC-CR24-7B GREY
$87.4676
Details

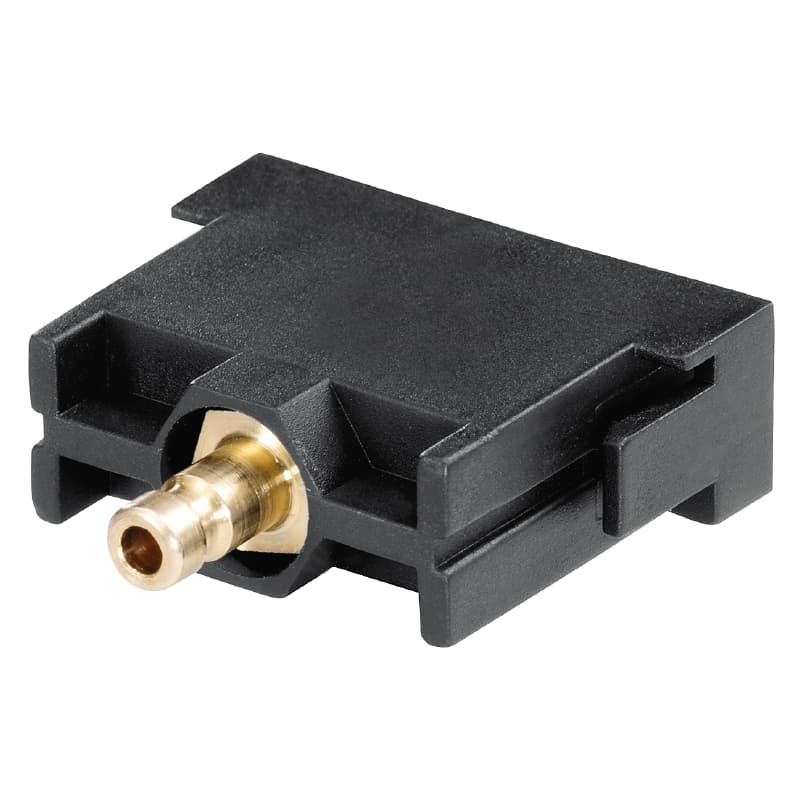

1894740000
