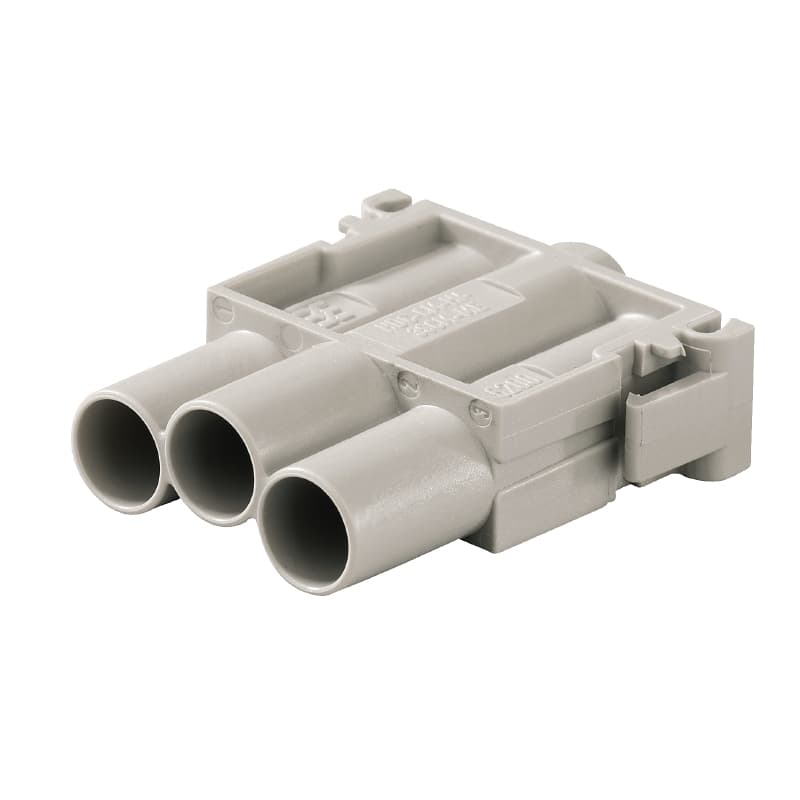

Manufacturer	Weidmüller Holding AG & Co. KG
Description	Conn Housing M 3 POS Crimp ST CONN FEMALE INSERT 3POS CRIMP
Category	Connector SolutionsCrimp & Solder Terminals / SplicesCrimp Terminals

RoHS	Lead free / RoHS Compliant	Standard Number	30-21-18-01
Material Flammability Rating	UL94 V-0

Frequency	27-44-05-15	Current Ratio	57 A
Voltage Rating	1000V	Number of Poles	3
Volume Resistance	≤ 1 mΩ	Voltage - Rated DC	8 kV
Current Rating (Max)	57A	Insulation Resistance	1012 Ω
Minimum Core Cross Section (Amin) mm2	1.5 mm²

Width	11.4 mm	Height	43 mm
Length	34 mm	Weight	7.9 g
Material	Polycarbonate, glass fibre reinforced	Packaging	Bulk
Wire Gauge	AWG 7	Contact Type	ConCept C-M3
Mounting Type	Straight	Cable Diameter	10 mm²
Connector Type	Module without Contacts	Number of Rows	2
Width (Inches)	0.449 inch	Height (Inches)	1.693 inch
Length (Inches)	1.339 inch	Stripping Length	10 mm
Termination Style	Crimp	Number of Contacts	3
Insulation Material	PC glass-fibre reinforced (UL-listed and railway-certified)	Number of Positions	3
Total Length Supplied	34 mm	Wire Gauge or Range - mm2	AWG 16

Type	Housing	Gender	M
Series	ConCept module	ETIM 6*0	EC001121
GTIN (EAN)	4032248425495	Description	Accessories, see chapter J - Tools, see chapter K
Legend (Text)	Combine this module with the C-M3 crimp contacts. Crimp contacts should be ordered separately.	Connection Type	Screw connection via module frame
Firmware Version	Heavy Duty Connectors, HDC insert, ConCept module	Other Specifications	III
Descriptive Text Technical Data	For conductor cross-sections of 6 mm² to 10 mm², you must use ring cable lugs at the connection to the PE conductor.When used properly and as designated, the listed connectors may not be connected or disconnected if voltage/load is present!When used in the metal frame, reduction of the voltage to 690 V must be noted!
