Manufacturer	Weidmüller Holding AG & Co. KG

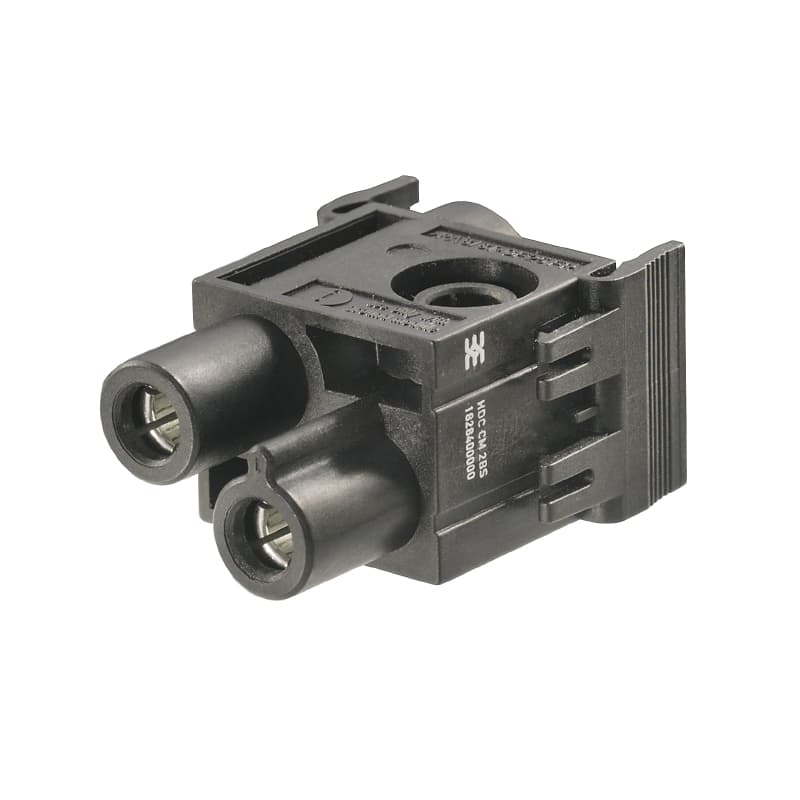

Description	Conn Housing M 2 POS Crimp ST CONN MALE W/LEVER INSERT 2POS CM
Category	Connector SolutionsCrimp & Solder Terminals / SplicesCrimp Terminals

RoHS	Lead free / RoHS Compliant	Standard Number	30-21-18-01
Material Flammability Rating	UL94 V-0

Frequency	27-44-02-05	Current Ratio	82 A
Voltage Rating	1000V	Number of Poles	2
Volume Resistance	≤ 1 mΩ	Voltage - Rated DC	8 kV
Current Rating (Max)	82A	Insulation Resistance	1012 Ω
Minimum Core Cross Section (Amin) mm2	10 mm²

Color	Black	Width	22.8 mm
Height	47.8 mm	Length	34 mm
Weight	44.2 g	Material	Polyamide, glass fibre-reinforced
Packaging	Bulk	Wire Gauge	AWG 4
Mounting Type	Straight	Cable Diameter	25 mm²
Connector Type	Module	Contact Finish	Silver
Number of Rows	1	Width (Inches)	0.898 inch
Height (Inches)	1.882 inch	Length (Inches)	1.339 inch
Contact Material	Copper Alloy	Stripping Length	16 mm
Termination Style	Screw	Number of Contacts	2
Insulation Material	Polyamide with fibre optic	Number of Positions	2
Total Length Supplied	34 mm	Wire Gauge or Range - mm2	AWG 8

Type	Housing	Gender	M
Series	ConCept module	ETIM 6*0	EC000438
GTIN (EAN)	4032248334100	Description	Accessories, see chapter J - Tools, see chapter K
Legend (Text)	The modules have a double-module design and occupy two slots in the ConCept module frame.	Connection Type	Screw connection via module frame
Firmware Version	Heavy Duty Connectors, HDC insert, ConCept module	Other Specifications	III
Descriptive Text Technical Data	Only use the modules with wire-end ferrules! The listed plug-in connectors must not be plugged or unplugged under voltage/load during normal use!Only suitable for usage in the ConCept plastic frame!When using a high-current module, a PE module must always be included!Male and female socket module must not be mixed within one ConCept frame.

1828380000
