Manufacturer	Weidmüller Holding AG & Co. KG

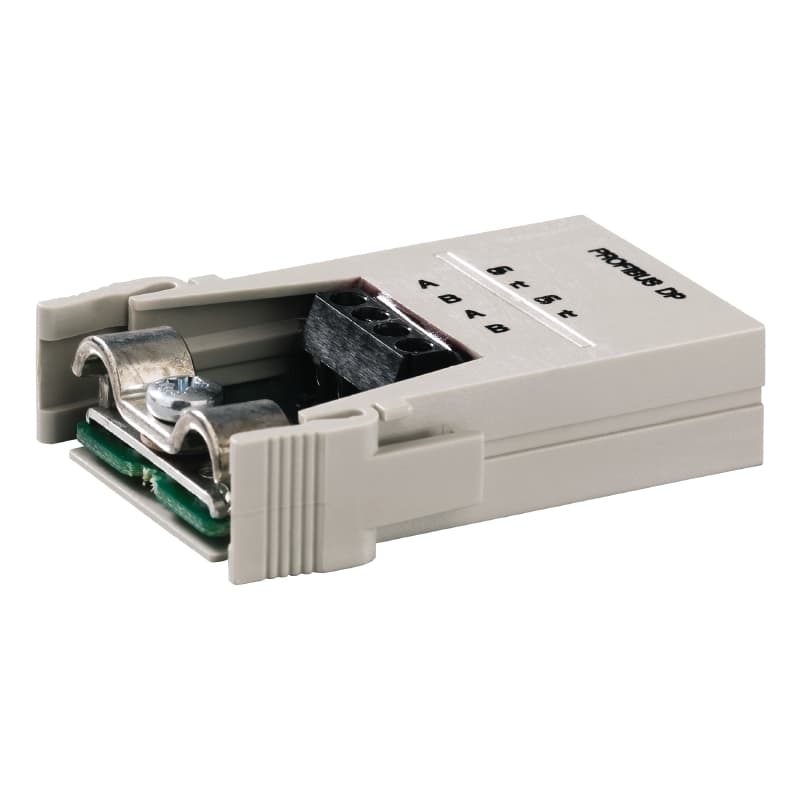

Description	Concept Bus Connector M ST MOD MALE INSERT 2POS CM BUS
Category	Connector SolutionsBoard to Board ConnectorsBoard-to-Board Connector Accessories

RoHS	Lead free / RoHS Compliant	IEC Standard	27-44-02-18
Standard Number	30-21-18-01

Color	Gray	Width	11.4 mm
Height	43 mm	Length	34 mm
Weight	19 g	Material	Polycarbonate
Packaging	Bulk	Wire Gauge	AWG 16
Mounting Type	Straight	Connector Type	Module, Bus
Width (Inches)	0.449 inch	Height (Inches)	1.693 inch
Length (Inches)	1.339 inch	Housing Material	Polycarbonate (PC), Glass Filled
Stripping Length	5 mm	Termination Style	Screw
Insulation Material	PC glass-fibre reinforced (UL-listed and railway-certified)	Number of Positions	2
Total Length Supplied	34 mm

Type	Concept Bus Connector	Gender	M
Series	ConCept module	ETIM 6*0	EC001121
GTIN (EAN)	4032248275182	Description	Accessories, see chapter J - Tools, see chapter K
Connection Type	0.6 Nm	Engineering Data	EPLAN, Zuken E3.S
Firmware Version	Heavy Duty Connectors, HDC insert, ConCept module	Descriptive Text Technical Data	When used properly and as designated, the listed connectors may not be connected or disconnected if there is a live voltage or load!

ET (Volt-Time)	EC001121	Ingress Protection	27-14-34-19
Operating Temperature	-20°C ~ 85°C	Maximum Temperature Limit	-20 °C ... 85 °C
