点击放大查看

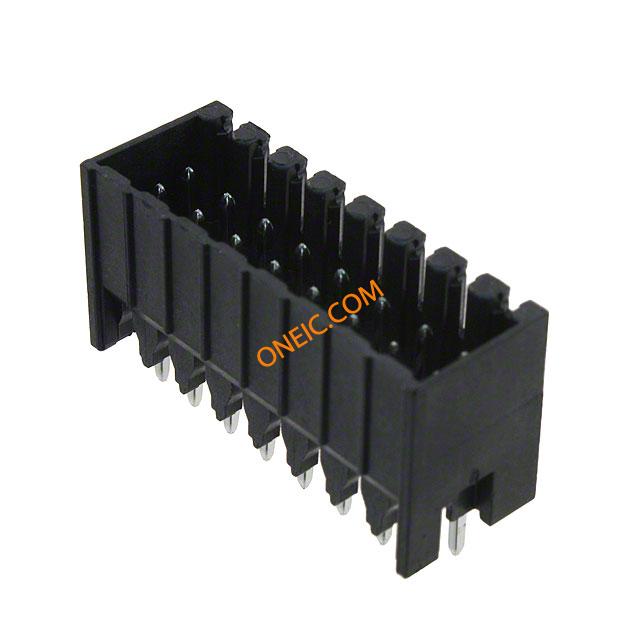

1794580000
| Manufacturer | |
| Description | Conn Shrouded Header HDR 16 POS 3.5mm Solder ST Thru-Hole Box TERM BLOCK HDR 16POS VERT 3.5MM TERM BLOCK HEADER, 16 POLES, 3.5 PITCH |
| Category |
Business
| Other Names | 1794580000-ND | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 00000000 |
Electrical
| Current | 10A | Voltage | 150V |
Mechanical
| Color | Black | Pitch | 3.5 mm |
| Weight | 0 | Packaging | Bulk |
| Termination | Solder | Mounting Type | Through Hole |
| Connector Type | :PCB Terminal Block | Contact Finish | Tin |
| Number of Rows | 2 | Contact Material | :Copper Alloy |
| Header Orientation | Vertical | Number of Contacts | 16 |
| Number of Positions | 16 | Terminal Block Type | Header, Male Pins, Shrouded (4 Side) |
| 1st Connector Mounting Type | :PCB | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | :Minimate S2L-SMT 3.5 | Number of Levels | 2 |
| Positions Per Level | 8 | ||
