1775480000
| Manufacturer | |
| Description | Conn Feed-Thru F 2 POS 17.5A CONN TERM BLK ZDU 1.5 Non-Fuse DIN Rail Terminal, 17.5A, 500V, Beige ,Clamp Termination TERMINAL BLOCK, DIN RAIL, 2POS, 28-16AWG Splice terminal: rail; ways:2; terminals:2; beige; 1.5mm2; wemid Weidmuller ZDU 系列 棕色 标准 DIN 导轨端子 , 17.5A, 500 V |
| Category |
Business
| Other Names | ZDU 1.5 | Standard Package | Bag |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85444920 |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Current - UL | 15A | Voltage - UL | 300V |
| Current - IEC | 17.5A | Voltage - IEC | 500V |
| Voltage Rating | 500 V | Number of Poles | 2 |
| Connector Impedance | rail | Current Rating (Max) | 17.5A |
Mechanical
| Color | Beige | Width | 3.5mm |
| Height | 37mm | Weight | 0.005 |
| Wire Gauge | 16-30 AWG | Termination | Clamp |
| Body Material | wemid | Housing Color | Dark Beige |
| Mounting Type | spring clamp | Connector Type | :DIN Terminal Block |
| Contact Finish | :- | Mounting Rails | TS35 |
| Number of Rows | 2 | Contact Material | :- |
| Package Quantity | 100 | Stripping Length | 10mm |
| Terminal - Width | 3.5mm | Termination Style | Push In, Spring |
| Color - Connectors | Beige | Number of Contacts | :2 |
| Number of Positions | 2 | Maximum Cable Length | 1.5mm2 |
| Material - Insulation | Thermoplastic, Wemid | Wire Gauge or Range - AWG | 16-30 AWG |
| Wire Gauge or Range - mm2 | 0.5-1.5mm² | 1st Connector Mounting Type | :DIN Rail |
Product Info
| Spg | 100 | Type | Feed-Thru |
| Gender | F | Series | ZDU |
| Number of Units | 1 | Number of Levels | 1 |
| Number of Circuits | 1 | ||
Environmental
| Operating Temperature | +120°C | ||
Documents & Media
Similar Parts
1776200000
weidmuller
ZQV 1.5/10 -EA TERMINAL CROSS CONN ZQV 1.5/10 Weidmuller 1776200000 Cross Connector Terminal Block, Series: ZQV Comb bridge; Application: ZDU1.5
1776140000
weidmuller
ZQV 1.5/4 -EA TERMINAL CROSS CONN ZQV 1.5/4 Comb bridge; Application: ZDU1.5
1776120000
weidmuller
ZQV 1.5/2 -EA TERMINAL CROSS CONN ZQV 1.5/2 Weidmuller 1776120000 Cross Connector Terminal Block, Series: ZQV Comb bridge; Application: ZDU1.5
1776040000
weidmuller
ZAP/ZDU 1.5, BLUE -EA TERMINAL END PLATE 2MM BLUE End/partition plate; Application: ZDU1.5; blue; wemid; max.125°C
1776130000
weidmuller
ZQV 1.5/3 -EA TERMINAL CROSS CONN ZQV 1.5/3 Comb bridge; Application: ZDU1.5
1776210000
weidmuller
ZTA 5.W/ -EA TERMINAL TEST ADAPTER
1776220000
weidmuller
ZTA 6 -EA TERMINAL TEST ADAPTER
1778270000
weidmuller
WS 12/3.5 MC BLANK -BX = 600 EA TERMINAL MARKER WS 12/3.5 MC

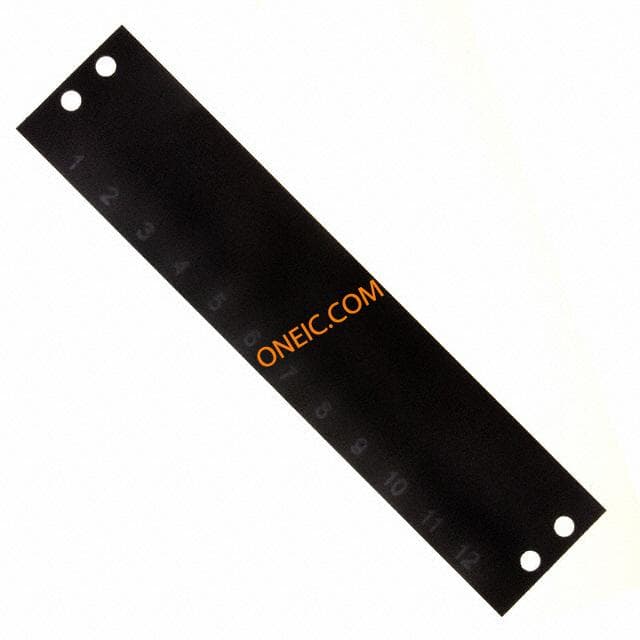

MS-12-141
