| Description | Conn Disconnect Terminal Blocks 2 POS ST 33A TERMINAL ZTD 6/STB |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | IEC 60947-7-1 |
| Compliance | E60693 | Protection | No |
| IEC Standard | 27-14-11-20 | Certification | 200039-1152892 |
| Standard Number | 30-21-18-11 | Declaration of Conformity | DE_PT1104_20160418_1477_ISSUE01.pdf |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Frequency | 27-14-11-20 | Range deg/s | 10 mm² |
| Current - UL | 33A | Voltage - UL | 300V |
| Current - IEC | 41A | Voltage - IEC | 800V |
| Voltage Rating | 800 V | Conductor Strand | 20 AWG |
| Current - Output | 33 A | Voltage - Supply | 300 V |
| Number of Elements | 1 | Current Rating (Max) | 52 A |
| Insulation Resistance | 0.78 mΩ | Current - Output (Typ) | 33 A |
| Voltage - Supply (Min) | 54.5 mm | Number of Outputs and Type | 1 |
| Voltage - Supply, Single (V+) | 300 V | Voltage - Breakdown (V(BR)GSS) | 8 kV |
| Voltage - Output (Typ) @ Distance | 300 V | Minimum Core Cross Section (Amin) mm2 | 6 mm² |
Mechanical
| Color | Beige | Depth | 46.5 mm |
| Width | 8 mm | Height | 106 mm |
| Weight | 33.85 g | Material | Wemid |
| Wire Type | 6 mm² | Blade Size | 0.8 x 4.0 mm |
| Wire Gauge | 8-20 AWG | End Feature | Yes |
| Opening Size | right | Socket Depth | Yes |
| Housing Color | Dark Beige | Mounting Type | Straight |
| Connector Type | Tension clamp connection | Depth (Inches) | 1.831 inch |
| Mounting Rails | TS 35, TS 32 | Number of Rows | 2 |
| Width (Inches) | 0.315 inch | Height (Inches) | 4.173 inch |
| Stripping Length | 13mm | Terminal - Width | 8.0mm |
| Termination Style | Push In, Spring | Wire Gauge - Ends | 20 AWG |
| Color - Connectors | Dark Beige | Cross Hole Diameter | 0.5 mm² |
| Number of Positions | 2 | Material - Insulation | Thermoplastic, Wemid |
| Wire Gauge or Range - AWG | 8-20 AWG | Wire Gauge or Range - mm2 | 0.5-10mm² |
| Number of Positions/Bay/Row | 2 | ||
Product Info
| Type | Disconnect Terminal Blocks | ETIM 6*0 | EC000897 |
| Direction | top | GTIN (EAN) | 4032248127306 |
| Disconnect Type | pluggable | Engineering Data | EPLAN |
| Firmware Version | Tension-clamp connection, with sockets, for plug-in cross-connector, One end without connector | Number of Levels | 1 |
| Installation Type | Direct mounting | Independent Circuits | No |
| Other Specifications | No | Number of Positions (Convert From) | 2 |
Environmental
| Rated Life | 6 mm² | Seal Rating | without |
| ET (Volt-Time) | EC000902 | Ingress Protection | 3 |
| Operating Temperature | -50 °C | ||
Documents & Media
Similar Parts
0299600000
weidmuller
Conn Test Plug PL 1 POS ST 1 Port PLUG TEST PS4 4.0MM SOCKET
1627860000
weidmuller
Conn Pluggable Jumper M 3 POS 8.1mm ST JUMPER 8MM 45A ZDU6 ZSI2.5 ZEI16 Comb bridge; Application: ZDU6
1071080000
weidmuller
Conn Test Jack SKT 1 POS ST 1 Port TERMINAL SOCKET STB 21.6 BL
1778990000
weidmuller
Conn Test Jack SKT 1 POS Screw ST 1 Port TERMINAL SOCKET STB 21.6 RD
1856740000
weidmuller

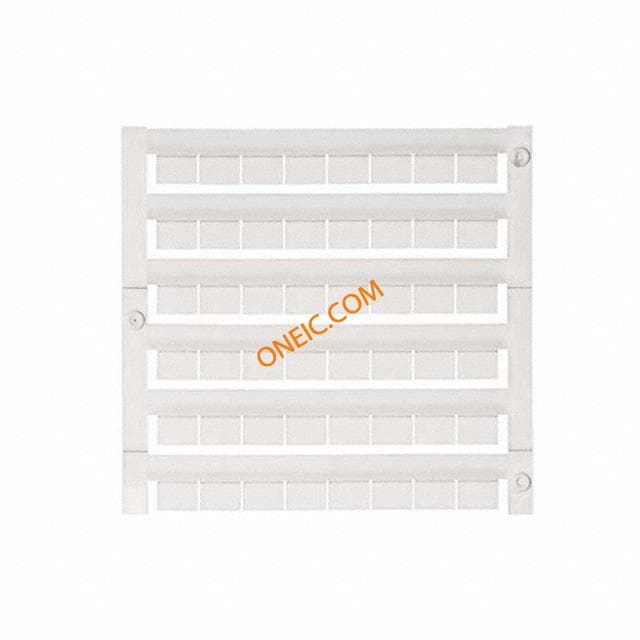

Connector Accessories Marking System White TERMINAL MARKER DEK 5/8 MC
1071010000
weidmuller
Conn Test Jack SKT 1 POS ST 1 Port STB 21.6/IH GE WTL6/3
1071020000
weidmuller
Conn Test Jack SKT 1 POS ST 1 Port STB 21.6/IH GN WTL6/3
1071030000
weidmuller
Conn Test Jack SKT 1 POS ST 1 Port TERMINAL SOCKET STB 21.6 VIOLET
1071000000
weidmuller
Conn Test Plug PL 1 POS ST 1 Port STB 21.6/IH BE WTL6/3
1908990000
weidmuller
ZQV 6/24 YELLOW CONN TERM JUMPER 41A ZQV 6/24 GE
1071040000
weidmuller
Conn Test Jack SKT 1 POS Screw ST 1 Port TERMINAL SOCKET STB 21.6 BLACK
1609920000
weidmuller
Connector Accessories Connector Marker Polyamide White TAG MARKER 12X6.5MM WHT 540/BX WS 12/6,5 MULTICARD TERMINAL MARKER, 540 PC(S)
1733640000
weidmuller

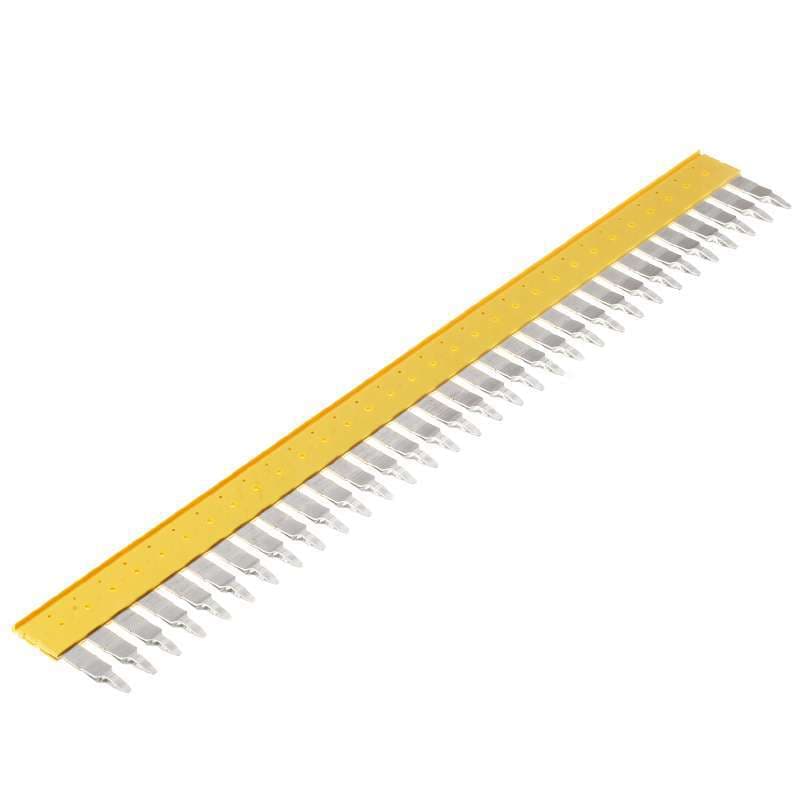

Conn Jumper M 32 POS 8.1mm ST JUMPER 8MM 45A ZDU6 ZSI2.5 ZEI16
1771820000
weidmuller
Conn Jumper M 2 POS 8mm ST KSBR/2 ZTL 6
1771870000
weidmuller
Connector Accessories End Plate Wemid Dark Beige TERMINAL END PLATE 2MM DRK BGE
1771880000
weidmuller
Connector Accessories End Plate Polyamide Orange TERMINAL END PLATE 2MM ORANGE
1771830000
weidmuller
Conn Jumper PL 3 POS 8mm ST KSBR/3 ZTL 6
1627850000
weidmuller

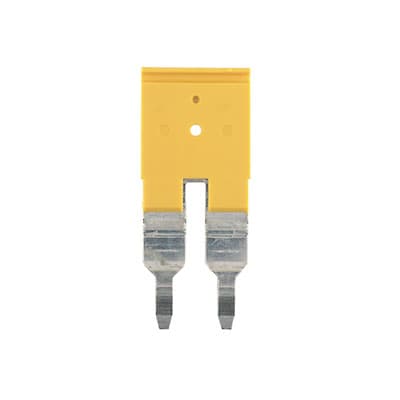

Conn Pluggable Jumper M 2 POS 8.1mm ST JUMPER 8MM 45A ZDU6 ZSI2.5 ZEI16
