Manufacturer	Weidmüller Holding AG & Co. KG

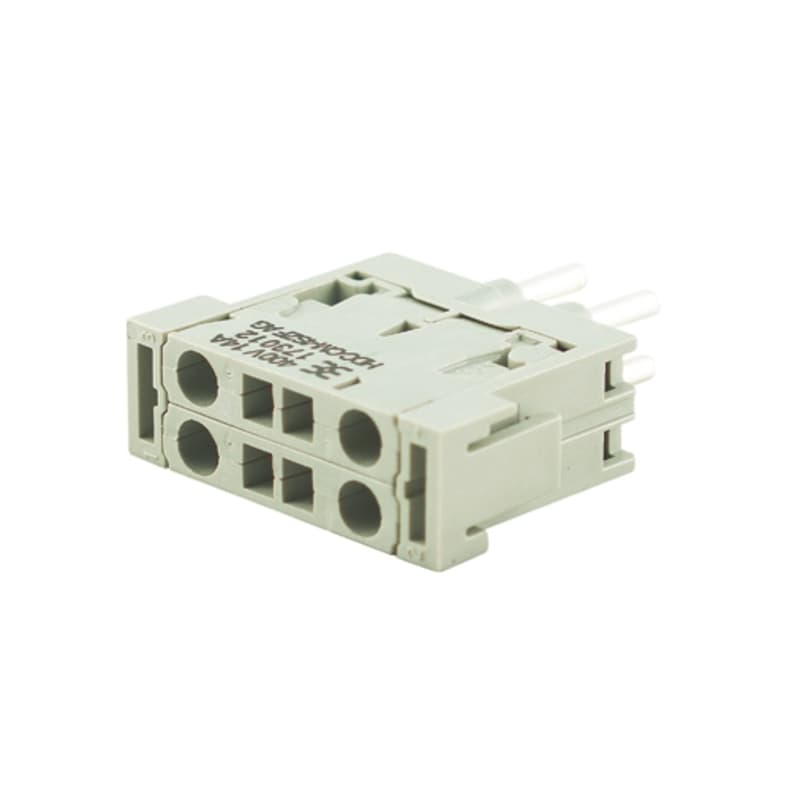

Description	Conn Housing M 8 POS Crimp ST MOD INSERT FEMALE CM-4 TENSION
Category	Connector SolutionsCrimp & Solder Terminals / SplicesCrimp Receptacles

RoHS	Lead free / RoHS Compliant	Standard Number	30-21-18-01
Material Flammability Rating	UL94 V-0

Frequency	27-44-02-05	Current Ratio	14 A
Voltage Rating	400V	Number of Poles	4
Volume Resistance	1.5 mΩ	Voltage - Rated DC	6 kV
Current Rating (Max)	14A	Insulation Resistance	1012 Ω
Minimum Core Cross Section (Amin) mm2	0.5 mm²

Width	11.4 mm	Height	40.4 mm
Length	34 mm	Weight	17.2 g
Material	Polycarbonate, glass fibre reinforced	Packaging	Bulk
Wire Gauge	AWG 14	Mounting Type	Straight
Cable Diameter	2.5 mm²	Connector Type	Module
Contact Finish	Silver	Number of Rows	2
Width (Inches)	0.449 inch	Height (Inches)	1.591 inch
Length (Inches)	1.339 inch	Contact Material	Copper Alloy
Stripping Length	10 mm	Termination Style	Tension Clamp
Number of Contacts	8	Number of Positions	4
Total Length Supplied	34 mm	Wire Gauge or Range - mm2	AWG 20

Type	Housing	Gender	M
Series	ConCept module	ETIM 6*0	EC000438
GTIN (EAN)	4008190384685	Description	Accessories, see chapter J - Tools, see chapter K
Connection Type	Screw connection via module frame	Firmware Version	Heavy Duty Connectors, HDC insert, ConCept module
Other Specifications	III	Descriptive Text Technical Data	For conductor cross-sections < 0.75 mm², you must use wire-end ferrules at the connection to the PE conductor.When used properly and as designated, the listed connectors may not be connected or disconnected if voltage/load is present!When used in the metal frame, reduction of the voltage to 250 V / 4.0 kV must be noted!
