1704720000
| Manufacturer | |
| Description | Conn Feed-Thru 4 POS ST 20A TERMINAL ZDUB 2.5-2/4AN/DB GR/YL |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Material Flammability Rating | UL94 V-0 |
Electrical
| Current - UL | 20A | Voltage - UL | 600V |
| Current - IEC | 24A | Voltage - IEC | 800V |
Mechanical
| Length | 1.319" (33.50mm) | Wire Gauge | 12-26 AWG |
| Height (Max) | 0.945" (24.00mm) | Housing Color | Yellow |
| Mounting Type | Straight | Number of Rows | 4 |
| Stripping Length | 10mm | Terminal - Width | 10.2mm |
| Termination Style | Spring Cage | Number of Positions | 2 |
| Material - Insulation | Thermoplastic, Wemid | Wire Gauge or Range - AWG | 12-26 AWG |
| Wire Gauge or Range - mm2 | 0.5-4mm² | ||
Product Info
| Type | Feed-Thru | Number of Levels | 1 |
| Number of Circuits | 2 | ||
Environmental
| Operating Temperature | -50°C ~ 120°C | ||
Documents & Media
Similar Parts
1635000000
weidmuller
WS 10/5 MC NEUTRAL -BX = 720 EA TAG MARKER 10X5MM WHT 720/BX Inkjet Printer Multi Card Markers TERMINAL MARKER, W/I/Z SERIES CONNECTORS, 5MM
1704740000
weidmuller
ZBB ZDUB -EA BLOCK SUPPORT TAB ONLY

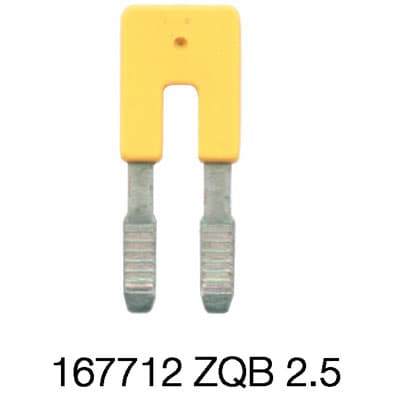

1677120000
