点击放大查看
1608920000
| Manufacturer | |
| Description | Conn Pluggable Jumper M 8 POS 5.1mm ST JUMPER 25A 8POS WTR 2.5/ZZ |
| Category |
Business
| Other Names | ZQV2.5/8 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | IEC Standard | 27-14-11-40 |
| Standard Number | 30-21-18-01 | Material Flammability Rating | V-0 |
Electrical
| Frequency | 27-14-11-40 | Current Rating (Max) | 24 A |
Mechanical
| Depth | 27.6 mm | Pitch | 5.1 mm |
| Width | 2.8 mm | Height | 39.1 mm |
| Weight | 5.05 g | Material | Wemid |
| Depth (Inches) | 1.087 inch | Fastening Type | Plugged |
| Mounting Rails | none | Number of Rows | 1 |
| Width (Inches) | 0.11 inch | Height (Inches) | 1.539 inch |
| Color - Connectors | Yellow | Number of Contacts | 8 |
| Number of Positions | 8 | ||
Product Info
| Type | Pluggable Jumper | Style | Flat Pins |
| ETIM 6*0 | EC000489 | GTIN (EAN) | 4008190061531 |
| Engineering Data | EPLAN, Zuken E3.S | Firmware Version | For the terminals |
| Installation Type | Direct mounting | Other Specifications | No |
| For Use With/Related Products | Z Series | ||
Environmental
| ET (Volt-Time) | EC000489 | Ingress Protection | 27-14-11-40 |
| Operating Temperature | -50 °C | ||
Documents & Media
Similar Parts
1801790000
weidmuller
Conn Terminal Block 2 POS Screw Cable Mount 17.5A TERMINAL IEK 1.5N 3L
1683390000
weidmuller
Conn Feed-Thru 2 POS ST 25A TERMINAL ZDU 2.5/3AN GR (GREY)
1692670000
weidmuller

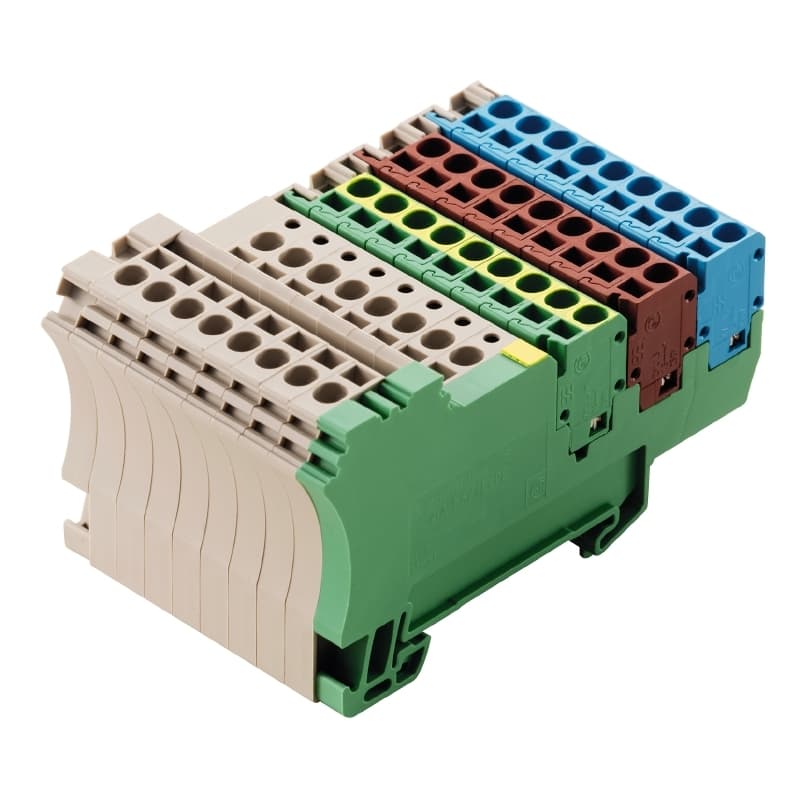

ZIA 1.5/4L-PE/8/KB -EA TERMINAL ZIA 1.5/4L-PE/8/KB
