1577340000
| Manufacturer | |
| Description | Conn Feed-Thru 1 POS Screw ST 20A TERM PLUGGABLE TS35 10A WM BG Clamping Yoke Interface Module, DIN Rail Mount, 1 Pole, 250V, 16A, 49mm |
| Category |
Business
| Standard Package | Bag | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Material Flammability Rating | UL94 V-0 |
Electrical
| Current - UL | 10A | Voltage - UL | 300V |
| Current - IEC | 16A | Voltage - IEC | 250V |
Mechanical
| Length | 1.929" (49.00mm) | Wire Gauge | 16-26 AWG |
| Termination | Screw | Height (Max) | 1.476" (37.50mm) |
| Housing Color | Dark Beige | Mounting Type | Straight |
| Number of Rows | 1 | Stripping Length | 10mm |
| Terminal - Width | 5.08mm | Termination Style | Plug Receptacles, Screw |
| Number of Positions | 3 | Material - Insulation | Thermoplastic, Wemid |
| Wire Gauge or Range - AWG | 12-22 AWG | Wire Gauge or Range - mm2 | 0.5-2.5mm² |
Product Info
| Type | Feed-Thru | Number of Levels | 1 |
Environmental
| Operating Temperature | -50°C ~ 120°C | ||
Documents & Media
Similar Parts
1053860000
weidmuller
Conn Jumper M 4 POS 5.1mm Screw ST JUMPER FOR WDU 2.5 4POS TERMINAL BLOCK JUMPER, 4WAY, 5.1MM Screw bridge; Application: WDU2.5; ways:4

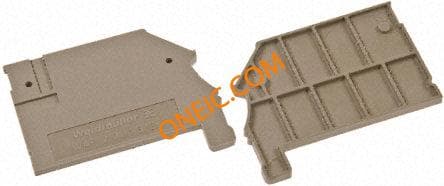

1577330000
