点击放大查看

1510560000

Manufacturer	Weidmüller Holding AG & Co. KG
Description	Conn Shrouded Header M 4 POS 5.08mm Solder RA Thru-Hole Box TERM BLOCK HDR 4POS R/A 5.08MM HEADER, SIDE ENTRY, 4WAY
Category	Connector SolutionsTerminal BlocksTerminal Blocks and Connectors

对参数有疑问？问 AI 助手

Business

Standard Package

Bulk

Compliance

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
Tariff No	85366990

Electrical

Current	10A	Voltage	300V
Range deg/s	:WEIDMULLER - SL 5.08 Series

Mechanical

Color	Orange	Pitch	5.08 mm
Weight	0.0017	Packaging	Bulk
Termination	Solder	Mounting Type	Through Hole
Contact Finish	Tin	Number of Rows	1
Contact Material	:Copper, Tin	Color - Connectors	:Orange
Header Orientation	90°, Right Angle	Number of Contacts	4
Contact Termination	:Through Hole Right Angle	Number of Positions	4
Terminal Block Type	Header, Male Pins, Shrouded (4 Side)	1st Connector Mounting Type	:Right Angle

Product Info

Type	Shrouded Header	Gender	M
Features	Side Stacking (Interlocking)	Number of Levels	1
Positions Per Level	4

Documents & Media

PDF Document

OMNIMATE Catalog

PDF Document

1510560000

PDF Document

1231188.pdf

Similar Parts

1610510000

weidmuller

Conn Terminal Block SKT 4 POS 5.08mm Crimp ST Cable Mount 10A Box TERM BLOCK PLUG 4POS STR 5.08MM

$4.6373

Details

1499760000

weidmuller

Conn Terminal Block SKT 4 POS 5.08mm Screw ST Cable Mount 10A Box TERM BLOCK PLUG 4POS STR 5.08MM

$27.7440

Details

1644750000

weidmuller

Conn Terminal Block SKT 4 POS 5.08mm Screw ST Cable Mount 15A Box TERM BLOCK PLUG 8POS 5.08MM

$38.6512

Details

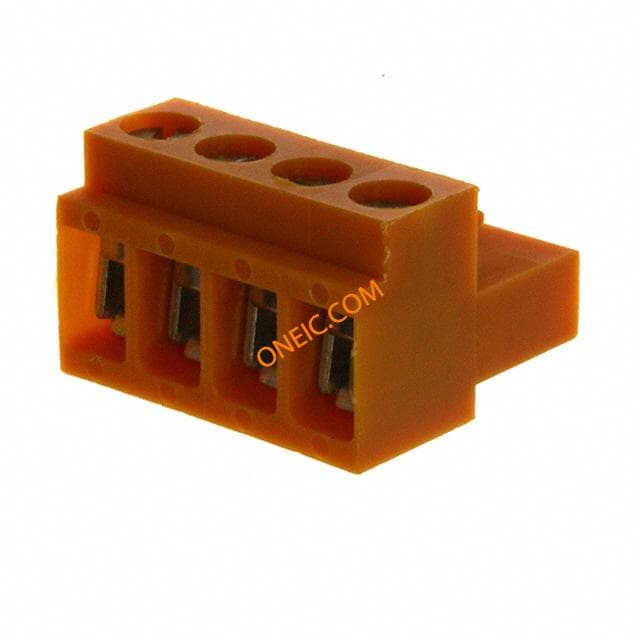

1716340000
