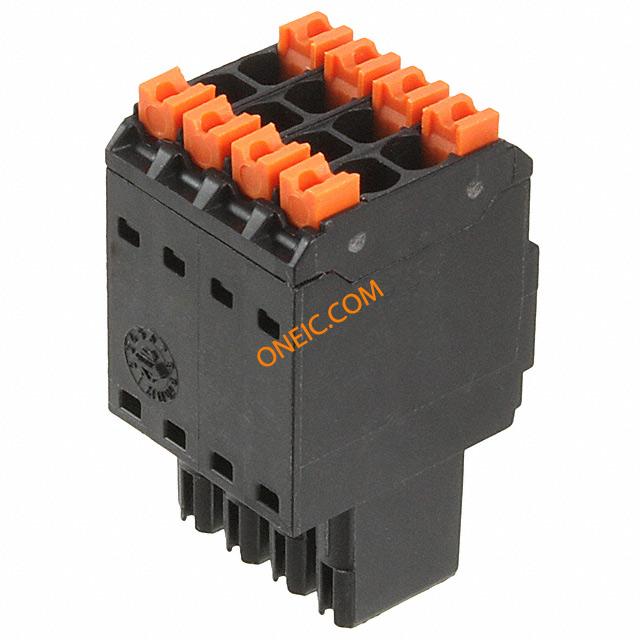

1277480000

Manufacturer	Weidmüller Holding AG & Co. KG
Description	CONN TERM BLOCK PLUG 4POS 3.5MM TERM BLOCK PLUG 8POS STR 3.5MM
Category	Connector SolutionsTerminal BlocksScrew Terminal Blocks

对参数有疑问？问 AI 助手

Business

Other Names

281-3020

Standard Package

132

Compliance

RoHS	Conform	Compliance	IEC 60664-1, IEC 61984
Certification	200039-1121690	Approval Agency	E60693
Security Features	Safety indication	Approval Agency Marking	Specifications are maximum values, details - see approval certificate.
Material Flammability Rating	V-0

Electrical

Current	10A	Voltage	300V
Frequency	27-44-04-02	Range deg/s	1.5 mm²
Voltage Rating	300 V	Number of Poles	8
Voltage - Supply	300 V	Voltage - Rated AC	50 V
Current Rating (Max)	9 A	Insulation Resistance	≥ 108 Ω
Current Rating - Series	12 A	Voltage Supply - Internal	50 V
Current Rating (Per Contact)	13.4 A	Current - Short Circuit (Isc)	3 x 1s with 80 A
Voltage - Breakdown (V(BR)GSS)	2.5 kV	Voltage - Protection Rating (VPR)	2.5 kV
Voltage - Protection Level (VP) (2416)	160 V

Mechanical

Color	Black	Pitch	0.138" (3.50mm)
Weight	5.272 g	Packaging	Bulk
Common Pin	≥ 600	Wire Gauge	16-26 AWG
Termination	Screwless - Push In	Holding Force	5 N
Mounting Type	Free Hanging (In-Line)	Connector Type	PUSH IN
Contact Finish	tinned	Number of Pins	2
Number of Rows	1	Actuation Force	40 N
Insertion Force	5 N	Length (Inches)	0.413 inch
Plug Wire Entry	180°	Contact Material	Cu-Leg
Ferrule Material	1 mm²	Stripping Length	10 mm
Inlet/Outlet Size	180°	Color - Connectors	Black
Insulation Material	PA 66 GF 30	Number of Positions	8
Terminal Block Type	Plug, Female Sockets	Material - Insulation	II
Pin Size - Above Flange	1.5 mm²	Pin Size - Below Flange	0.14 mm²
Diameter - Large Outside	1.5 mm²	Diameter - Small Outside	0.14 mm²
Length - Center to Center	10.5 mm	Wire Gauge or Range - AWG	AWG 16
Static Discharge Shielding	Safe from finger touch

Product Info

Note	Additional colours on request Gold-plated contact surfaces on request Rated current related to rated cross-section & min. No. of poles. Crimp shape A for wire-end ferrules with crimping tools PZ 1,5 (order no. 9005990000) or PZ 6/5 (order no. 9011460000) for larger wire cross-sections recommended. P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. Max. outer diameter of the conductor 2.6 mm Wire-end ferrule w/plastic collar DIN 46228/4 or Weidmüller colour code1.00mm² [H1.0/18D] mtl. ferrule leng. 12mm, stripping leng. 15mm0.75mm² [H0.75/18D] mtl. ferrule leng. 12mm, stripping leng. 14mm0.50mm² [H0.5/16D] mtl. ferrule leng. 10mm, stripping leng. 12mm0.34mm² [H0.34/12] mtl. ferrule leng. 8mm, stripping leng. 10mm0.25mm² [H0.25/12] mtl. ferrule leng. 8mm, stripping leng. 10mm0.14mm² [H0.14/12] mtl. ferrule leng. 8mm, stripping leng. 10mm Wire-end ferrule w/o plastic collar acc. to DIN 46228/11.50mm² [H1.5/10] mtl. ferrule leng. 10mm, stripping leng. 10mm Wire-end ferrule w/plastic collar DIN 46228/4 and 2 connec. cables2 x 0.20mm² [H0.5/16] mtl. ferrule leng. 10mm, stripping leng. 12mm2 x 0.34mm² [H1.0/18] mtl. ferrule leng. 12mm, stripping leng. 15mm	Type	B2CF 3.50/08/180 SN BK BX
Series	OMNIMATE Signal - series B2C/S2C 3.50 - 2-row	ETIM 6*0	EC002637
Features	IEC: 320 V / 13.4 A / 0.14 - 1.5 mm²UL: 300 V / 9.5 A / AWG 26 - AWG 16	GTIN (EAN)	4050118067712
Coded, Keyed	Yes	Legend (Text)	RAL 9011
Layer Structure	2-5 µm Sn hot-dip tinned	Firmware Version	PCB plug-in connector, female plug, 3.50 mm, No. of poles: 8, 180°, PUSH IN, Clamping range, rated connection, max.: 1.5 mm², Box
Number of Levels	2	Tool Type Feature	0.4 x 2.5
Positions Per Level	4	Other Specifications	Operating instruction

Environmental

Rated Life	1.5 mm²	Mating Cycles	25
ET (Volt-Time)	EC002637	Humidity Range	80 %
Storage Interface	-25 °C	Ingress Protection	27-44-04-02
Operating Temperature	120 °C	Touch-Safe Protection	IP 20
