1277460000
| Manufacturer | |

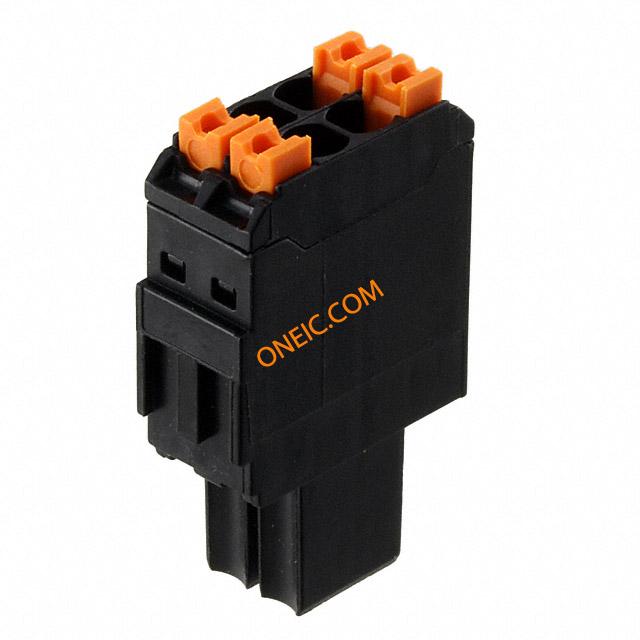

| Description | TERM BLOCK PLUG 4POS STR 3.5MM |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 264 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Compliance | IEC 60664-1, IEC 61984 |
| Certification | 200039-1121690 | Approval Agency | E60693 |
| Security Features | Safety indication | Approval Agency Marking | Specifications are maximum values, details - see approval certificate. |
| Material Flammability Rating | V-0 | ||
Electrical
| Current | 10A | Voltage | 300V |
| Frequency | 27-44-04-02 | Range deg/s | 1.5 mm² |
| Voltage Rating | 300 V | Number of Poles | 4 |
| Voltage - Supply | 300 V | Voltage - Rated AC | 50 V |
| Current Rating (Max) | 9 A | Insulation Resistance | ≥ 108 Ω |
| Current Rating - Series | 12 A | Voltage Supply - Internal | 50 V |
| Current Rating (Per Contact) | 13.4 A | Current - Short Circuit (Isc) | 3 x 1s with 80 A |
| Voltage - Breakdown (V(BR)GSS) | 2.5 kV | Voltage - Protection Rating (VPR) | 2.5 kV |
| Voltage - Protection Level (VP) (2416) | 160 V | ||
Mechanical
| Color | Black | Pitch | 0.138" (3.50mm) |
| Weight | 2.636 g | Packaging | Bulk |
| Common Pin | ≥ 600 | Wire Gauge | 16-26 AWG |
| Termination | Screwless - Push In | Holding Force | 5 N |
| Mounting Type | Free Hanging (In-Line) | Connector Type | PUSH IN |
| Contact Finish | tinned | Number of Pins | 2 |
| Number of Rows | 1 | Actuation Force | 40 N |
| Insertion Force | 5 N | Length (Inches) | 0.138 inch |
| Plug Wire Entry | 180° | Contact Material | Cu-Leg |
| Ferrule Material | 1 mm² | Stripping Length | 10 mm |
| Inlet/Outlet Size | 180° | Color - Connectors | Black |
| Insulation Material | PA 66 GF 30 | Number of Positions | 4 |
| Terminal Block Type | Plug, Female Sockets | Material - Insulation | II |
| Pin Size - Above Flange | 1.5 mm² | Pin Size - Below Flange | 0.14 mm² |
| Diameter - Large Outside | 1.5 mm² | Diameter - Small Outside | 0.14 mm² |
| Length - Center to Center | 3.5 mm | Wire Gauge or Range - AWG | AWG 16 |
| Static Discharge Shielding | Safe from finger touch | ||
Product Info
| Note | Additional colours on request Gold-plated contact surfaces on request Rated current related to rated cross-section & min. No. of poles. Crimp shape A for wire-end ferrules with crimping tools PZ 1,5 (order no. 9005990000) or PZ 6/5 (order no. 9011460000) for larger wire cross-sections recommended. P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. Max. outer diameter of the conductor 2.6 mm Wire-end ferrule w/plastic collar DIN 46228/4 or Weidmüller colour code1.00mm² [H1.0/18D] mtl. ferrule leng. 12mm, stripping leng. 15mm0.75mm² [H0.75/18D] mtl. ferrule leng. 12mm, stripping leng. 14mm0.50mm² [H0.5/16D] mtl. ferrule leng. 10mm, stripping leng. 12mm0.34mm² [H0.34/12] mtl. ferrule leng. 8mm, stripping leng. 10mm0.25mm² [H0.25/12] mtl. ferrule leng. 8mm, stripping leng. 10mm0.14mm² [H0.14/12] mtl. ferrule leng. 8mm, stripping leng. 10mm Wire-end ferrule w/o plastic collar acc. to DIN 46228/11.50mm² [H1.5/10] mtl. ferrule leng. 10mm, stripping leng. 10mm Wire-end ferrule w/plastic collar DIN 46228/4 and 2 connec. cables2 x 0.20mm² [H0.5/16] mtl. ferrule leng. 10mm, stripping leng. 12mm2 x 0.34mm² [H1.0/18] mtl. ferrule leng. 12mm, stripping leng. 15mm | Type | B2CF 3.50/04/180 SN BK BX |
| Series | OMNIMATE Signal - series B2C/S2C 3.50 - 2-row | ETIM 6*0 | EC002637 |
| Features | IEC: 320 V / 13.4 A / 0.14 - 1.5 mm²UL: 300 V / 9.5 A / AWG 26 - AWG 16 | GTIN (EAN) | 4050118067446 |
| Coded, Keyed | Yes | Legend (Text) | RAL 9011 |
| Layer Structure | 2-5 µm Sn hot-dip tinned | Firmware Version | PCB plug-in connector, female plug, 3.50 mm, No. of poles: 4, 180°, PUSH IN, Clamping range, rated connection, max.: 1.5 mm², Box |
| Number of Levels | 2 | Tool Type Feature | 0.4 x 2.5 |
| Positions Per Level | 2 | Other Specifications | Operating instruction |
Environmental
| Rated Life | 1.5 mm² | Mating Cycles | 25 |
| ET (Volt-Time) | EC002637 | Humidity Range | 80 % |
| Storage Interface | -25 °C | Ingress Protection | 27-44-04-02 |
| Operating Temperature | 120 °C | Touch-Safe Protection | IP 20 |
