1211300000
| Manufacturer | |
| Description | Conn Heavy-Duty Rectangular F 24Signal/1Ground POS Screw ST Panel Mount CONN FMALE INSERT HE SIZE8 24POS INSERT, FEMALE, 24POLE |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | Material Flammability Rating | UL94 V-0 |
Electrical
| Voltage Rating | 500V | Current Rating (Max) | 16A |
Mechanical
| Size | 8 | Weight | 0.129 |
| Packaging | Bulk | Termination | Screw |
| Mounting Type | Panel Mount | Connector Type | Insert |
| Contact Finish | Silver | Number of Rows | :2 |
| Contact Material | Copper Alloy | Housing Material | Polycarbonate (PC), Glass Filled |
| Termination Style | Screw | 1st Contact Gender | :Socket |
| Color - Connectors | :Grey | Number of Contacts | 24Signal/1Ground |
| Contact Termination | :Screw | Number of Positions | 24+Ground |
| Shell Size - Insert | :8 | 1st Connector Mounting Type | :Cable |
Product Info
| Type | Heavy-Duty Rectangular | Gender | PL |
| Series | :HE | ||
Environmental
| Operating Temperature | -40°C ~ 125°C | ||
Documents & Media
Similar Parts
1661370000
weidmuller
Connector Accessories Housing CONN PLUG HOUSING HE SIZE8 HOOD, TOP ENTRY, PG21
1661440000
weidmuller
Connector Accessories Housing CONN PLUG HOUSING SIZE 8
1661460000
weidmuller
Connector Accessories Housing HDC-HBD-64-TOVU1
1661320000
weidmuller
Connector Accessories Housing HDC-HBD-64-TSVU1
1788300000
weidmuller
HDC-HB48-TSVL-1XM50G -EA CONN PLUG HSNG M50 W/O COVR SZ12
1662280000
weidmuller
HDC 64D SDBO 1PG29G -EA HDC-HBD-64-SDVO1
1786770000
weidmuller
HDC 64D TSBU 1M32G -EA CONN HSNG HOOD M32 UPPER SIZE 8
1788380000
weidmuller
HDC-HB48-SDVL-2XM40G -EA CONN BASE HSNG M40 W/COVER SZ 12 CONN BASE SIDE ENTRY SZ12 M40
1788390000
weidmuller
HDC 28B SDLU 2M32G -EA CONN BASE HSNG M32 W/COVER SZ 12
1211100000
weidmuller
Conn Heavy-Duty Rectangular M 24Signal/1Ground POS Screw ST Panel Mount CONN MALE INSERT HE SIZE 8 24POS INSERT, MALE, 24POLE
1212900000
Weidmuller
HDC-HB-24-TOVO1
1213100000
Weidmuller
HDC-HB-24-TSVO1
1213600000
Weidmuller
HDC-HB-24-TOVL1
1213800000
Weidmuller
HDC-HB-24-TSVL1
1223600000
Weidmuller
HDC-HB-48-SDVL1
1661570000
Weidmuller
HDC-HBD-64-SVU1 CONN BASE SIDE ENTRY SZ8 PG21
1409200000
Weidmuller
DSTVK-SL24 INSERT MALE 24POS TERMINAL BLOCK
1290800000
Weidmuller
DSTVK-SR 24 INSERT MALE 24POS TERMINAL BLOCK

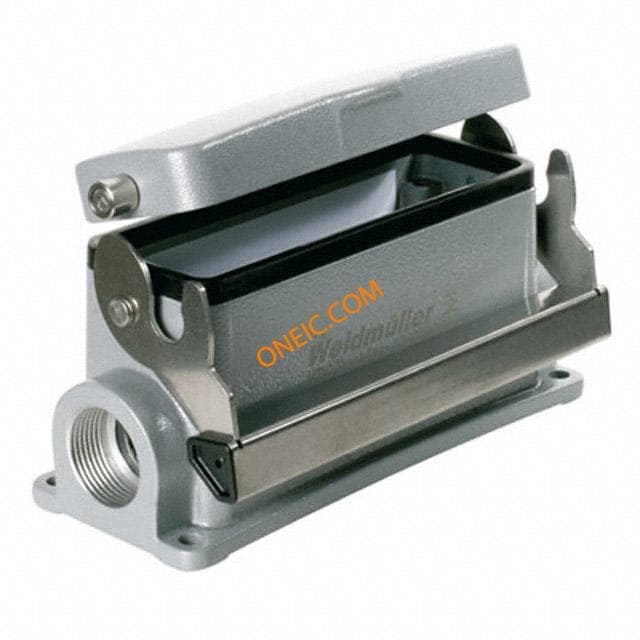

1904440000
