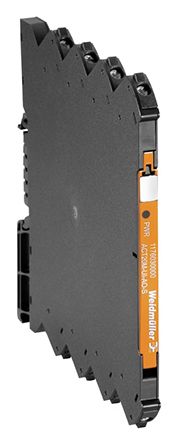

1176070000
| Manufacturer | |
| Description | SIGNAL CONVERTER/DISCONNECTOR DIN Rail 接口继电器模块, 0 → 20 mA, 4 → 20 mA, 16V dc |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Conform | Standards | IEC 61010-1 |
| IEC Standard | 27-21-01-20 | IEC 61000-4-2 | IEC 61326-1, NE 21 |
| Approval Agency | ATEX-KEMA，cULus，DNV，EAC，FM 认证，IECEx-KEMA，ME25 | Safety Category | KEMA10ATEX0183X |
| Approval Agency Marking | IECEXKEM10.0090X | Declaration of Conformity | Declaration of Conformity |
Electrical
| Sensor | Current source | Accuracy | < 0.1 % of measuring range |
| Frequency | 100 Hz | Isolation | 2-way isolator |
| Range deg/s | 0.5 mm² | Load Current | ≤ 600 Ω (channel 1 +2), @ max 23mA |
| Response Time | ≤ 5 ms | Voltage Rating | 300 Veff |
| Current - Output | 0...20 mA, 4...20 mA | Voltage - Supply | Loop powered, via 4...20 mA input |
| Number of Outputs | 1 | Voltage - Breakdown | 2.5 kVeff / 1 min. |
| Current - Input Bias | 0...20 mA, 4…20mA | Current Rating (Max) | 0 → 20 mA, 4 → 20 mA |
| Frequency - Output 3 | 100 Hz | Voltage - Input (Min) | 1.25 V + 0.015 Vout @25°C |
| No Load Power Consumption | 30 mW per channel | Current - Input Bias (Max) | 4 → 20mA |
Mechanical
| Depth | 114.3 mm | Width | 6.1 mm |
| Height | 112.5 mm | Length | 6.1mm |
| Weight | 80 g | Wire Gauge | 2.5 mm² |
| Mounting Type | DIN Rail | Connector Type | Screw connection |
| Depth (Inches) | 4.5 inch | Mounting Rails | TS 35 |
| Width (Inches) | 0.24 inch | Height (Inches) | 4.429 inch |
| Package Quantity | instruction sheet.pdf | Size / Dimension | 6.1 x 114.3 x 112.5mm |
| Termination Style | 螺丝 | ||
Product Info
| Type | ACT20M-CI-CO-ILP-S | Series | * |
| ETIM 6*0 | EC002653 | Features | 切断频率高达 100 Hz，无源隔离器，步进响应时间 ≤5 ms |
| GTIN (EAN) | 4032248970148 | Description | DIN mounting rail, see Accessories |
| Product Type | The ACT20M-CI-CO-ILP-S passive isolator isolates standard analogue current signals.An analogue input current signal is linearly converted to an analogue output current signal and is galvanically isolated. Power is supplied through the input measuring circuit (input loop-powered). | Configuration | none |
| Specifications | Standard signal passive isolator1-channel passive isolator in 6.1 mm width input-loop powered,for transmitting and isolating analogue DC current signals 0/4...20 mA.Add-on housing for TS35 rail mountingDimensions: L/W/H 114.3/ 6.1/ 112.5 mmScrew connection / Nominal cross-section 2.5 mm2Protection degree: IP 20 Input 0/4...20 mAOutput 0/4...20 mALoad resistance < 600 OhmTransmission error < 0,1 % v. E. Limit frequency 100 HzAuxiliary power 0/4...20 mA input current loopPower loss approx. 0.9 WAmbient temperature range -25 °C...+70 °C Isolation EN 61010-1, 2-way isolation up to 2.5 kV AC/DCTest voltage 2.5 kV input against output against auxiliary powerRated voltage 300 V AC/DC at overvoltage category II and pollution degree 2Approvals cULus, FM Div2, ATEX Zone2, DNV, GLType ACT20M-CI-CO-ILP-S | Engineering Data | EPLAN |
| Firmware Version | Signal converter/insulator, Input current loop feed, 2-way isolator, Loop powered, via 4...20 mA input | Other Specifications | <1.25 V |
| Descriptive Text Technical Data | Power supply optionally over the DIN mounting rail CH20M | ||
Environmental
| Temperature | -25 °C...+70 °C | Operate Time | 699 Years |
| ET (Volt-Time) | EC002479 | Humidity Range | 40 °C / 93 % rel. humidity, no condensation |
| Ingress Protection | 2 | Operating Temperature | -25 °C...70 °C |
| Temperature Coefficient | ≤ 0.01 % / °C | Maximum Temperature Limit | +70°C |
