1139570000
| Manufacturer | |
| Description | TERMINAL PPE 16S |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | IEC 60947-7-2 |
| Protection | Yes | IEC Standard | 27-14-11-41 |
| Declaration of Conformity | DE_PT1702_20160415_075_ISSUE01.pdf | Material Flammability Rating | UL94 V-0 |
Electrical
| Frequency | 27-14-11-41 | Range deg/s | 2.5 mm² |
| Number of Elements | 1 | Current Rating (Max) | 76 A |
| Insulation Resistance | 0.42 mΩ | Number of Outputs and Type | 1 |
| Voltage - Rated AC (Phase to Phase) | 8 kV | Current - Short Circuit Rating (SCCR) | 1920 A (16 mm²) |
Mechanical
| Color | Green, Yellow | Depth | 47.5 mm |
| Width | 12.1 mm | Height | 96.5 mm |
| Weight | 50.14 g | Material | Wemid |
| Wire Type | 10 mm² | Blade Size | 1.0 x 5.5 mm |
| Wire Gauge | 2.5 mm² | End Feature | Yes |
| Opening Size | right | Mounting Type | Snap-on |
| Connector Type | PUSH IN | Depth (Inches) | 1.87 inch |
| Mounting Rails | TS 35 | Width (Inches) | 0.476 inch |
| Height (Inches) | 3.799 inch | Front Connection | 16 mm² |
| Stripping Length | 18mm | Terminal - Width | 12.1mm |
| Termination Style | Push In, Spring | Wire Gauge - Ends | 16 mm² |
| Color - Connectors | green / yellow | Cross Hole Diameter | 2.5 mm² |
| Number of Positions | 2 | Material - Insulation | Thermoplastic, Wemid |
| Wire Gauge or Range - mm2 | 2.5-16mm² | Number of Positions/Bay/Row | 2 |
Product Info
| Type | Ground, Earth | ETIM 6*0 | EC000901 |
| Direction | top | GTIN (EAN) | 4050118027174 |
| Engineering Data | EPLAN | Firmware Version | PUSH IN connection, With PE connection, for plug-in cross-connector, One end without connector |
| Number of Levels | 1 | Installation Type | Direct mounting |
| Independent Circuits | No | Other Specifications | Yes |
| Number of Positions (Convert From) | 2 | ||
Environmental
| Rated Life | 16 mm² | ET (Volt-Time) | EC000901 |
| Ingress Protection | 3 | Operating Temperature | -50 °C |
Documents & Media
PDF Document
Similar Parts
9540000000
weidmuller
Connector Accessories End Bracket Dark Beige BRACKET END FOR TS35 TERMINAL Weidmuller 9540000000 End Bracket Terminal Block, Series: Z END BRACKET, TS 35 DIN MOUNTING RAIL
$5.9591
Details
1739690000
weidmuller
Conn Pluggable Jumper M 2 POS 12mm ST JUMPER 12MM 63A FOR ZDU 16 JUMPER BAR, 2 WAY Cross-connector, 76 A,ZQV 16/2
$8.7720
Details
1905970000
Weidmuller

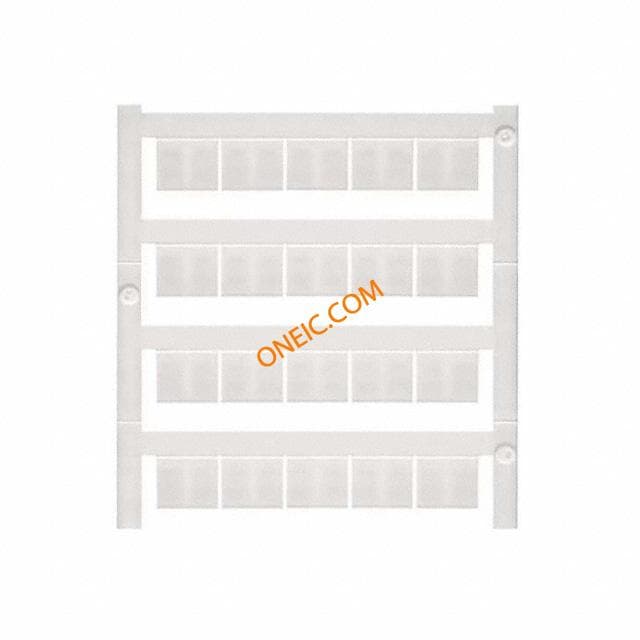

TERMINAL MARKER WS 10/12 MC
