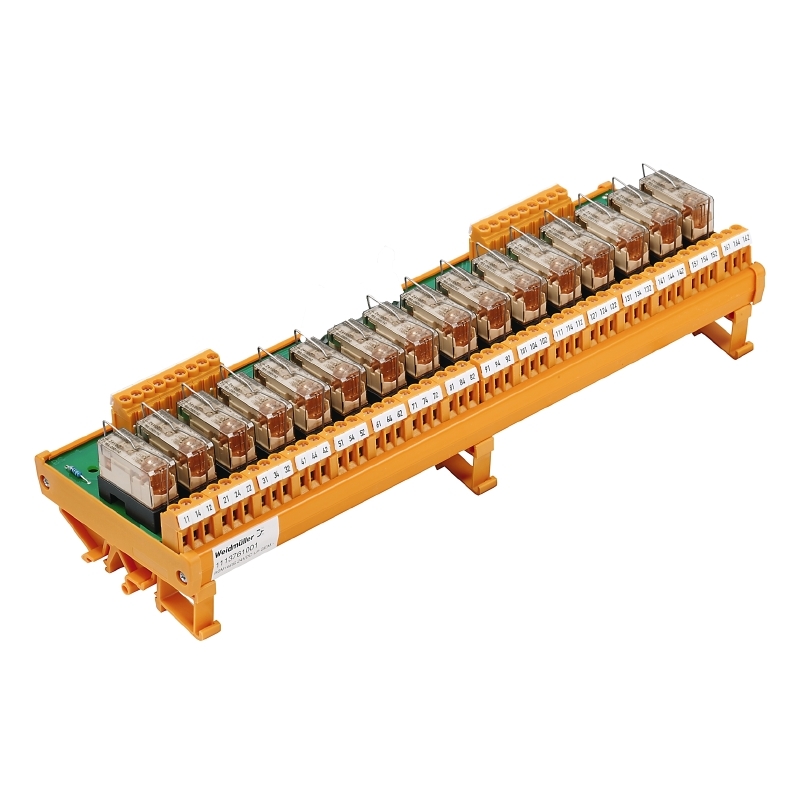

1107861001
| Manufacturer | |
| Description | Electromechanical Relay SPDT 8A 24VDC DIN Rail RELAY GEN PURPOSE SPDT 6A 24V |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | DIN EN 50178 |
| IEC Standard | 27-37-16-01 | Standard Number | 30-21-19-17 |
| Protection Features | IP20 | ||
Electrical
| Coil Type | Non Latching | Frequency | 27-37-16-01 |
| Indicator | LED yellow | Coil Power | 450 mW |
| Range deg/s | 0.5 mm² | Coil Current | 12mA |
| Release Time | 7ms | Power - Rated | 0.45 W |
| Current - Test | 6 A | Voltage Rating | 250 V |
| Current - Surge | 8 A | Delay Time - OFF | < 7 ms |
| Voltage - Supply | 24 V | Switching Voltage | 250VAC - Max |
| Current Rating - DC | 6 A | Current Rating (Max) | 8 A |
| Frequency - Switching | 0.1 Hz | Voltage - Input (Min) | 250 V |
| Current - Output (Typ) | 12 mA / 2 mA DC | Voltage - Switching AC | 250 V |
| Voltage - Switching DC | 250 V AC | Contact Rating (Current) | 6A |
| No Load Power Consumption | 250 mW | Voltage - Supply, Digital | 24 V DC |
| Current - Peak Pulse (8/20us) | 2000 VA | Switch Time (Ton, Toff) (Max) | < 8 ms |
| Impulse Discharge Current (8/20us) | 4 kV | ||
Mechanical
| Depth | 76 mm | Width | 285 mm |
| Height | 87 mm | Weight | 597 g |
| Packaging | Bulk | Wire Gauge | 2.5 mm² |
| Termination | Screw connection | Contact Form | SPDT (1 Form C) |
| Mounting Type | DIN Rail | Depth (Inches) | 2.992 inch |
| Width (Inches) | 11.22 inch | Height (Inches) | 3.425 inch |
| Contact Material | Silver Nickel 90/10 | Stripping Length | 8 mm |
| Protective Height | Free-wheel diode, Reverse polarity protection | Termination Style | Screw Terminal |
| Number of Contacts | 1 | Diameter - Barrel ID | 0.5 mm² |
| Contact Layout, Typical | SPDT | ||
Product Info
| Type | Coupling Relay | Duration | ≤ 3 ms |
| ETIM 6*0 | EC001437 | GTIN (EAN) | 4032248047789 |
| Relay Type | General Purpose with Socket | Electrical Life | > 5x105 switching cycles |
| Engineering Data | EPLAN | Firmware Version | 16-channel, shared - |
| Other Specifications | III | ||
Environmental
| Operate Time | 8ms | ET (Volt-Time) | EC001437 |
| Humidity Range | 40 °C / 93 % rel. humidity, no condensation | Mechanical Life | 30 x 106 switching cycles |
| Ingress Protection | 2 | Operating Temperature | -25 to 50 °C |
| Thermal Resistance @ Natural | > 3 mm | ||
Documents & Media
PDF Document
