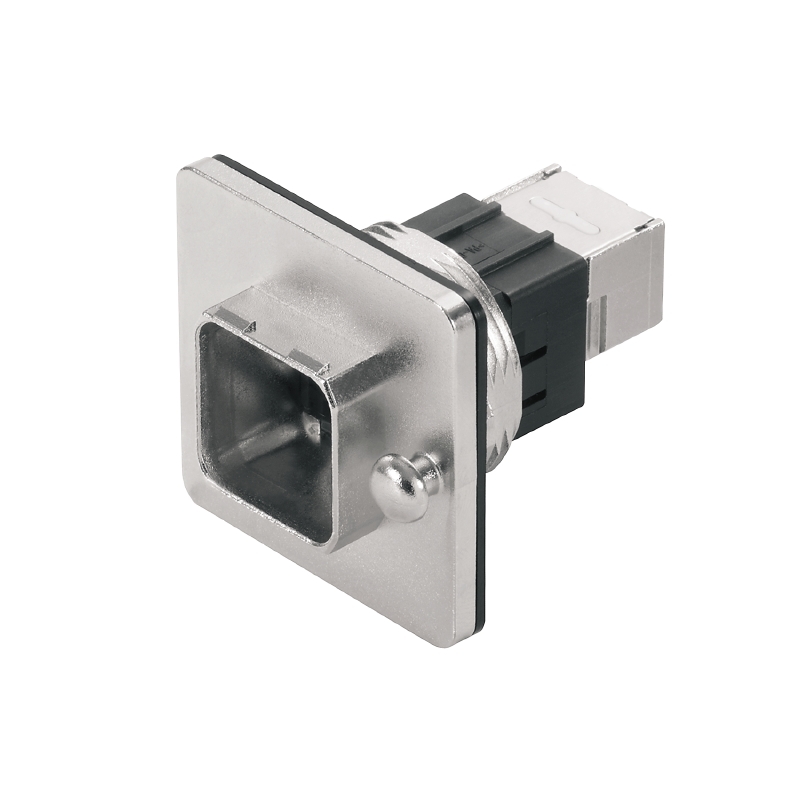

点击放大查看
1058270000
| Manufacturer | |
| Description | CONN MOD JACK 8P8C SHIELDED |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | IE-FCM-RJ45-FJ-P | Standard Package | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | Compliance | cs107368A.pdf |
| IEC Standard | 27-44-09-90 | Protection Features | IP67 |
Electrical
| Frequency | 19-17-01-25 | ||
Mechanical
| Weight | 81.6 g | LED Color | Does Not Contain LED |
| Packaging | Bulk | Shielding | Shielded |
| Orientation | Straight | Termination | IDC |
| 1st Connector | RJ45 | Core Diameter | 0.4...0.64 mm |
| Mounting Type | Panel Mount, Flange | Shell Plating | NBR |
| Tab Direction | User Selectable | Cable Diameter | 0.48 |
| Connector Type | Jack | Contact Finish | Gold |
| Number of Rows | 1 | Contact Material | Nickel |
| Housing Material | Zinc diecast | Cable Termination | TIA-568A |
| Cross Section Shape | AWG 24...AWG 22 | Connector/Contact Type | IEC 61076-3-117 Var. 14, IEC 60603-7-51 |
| 1st Connector Orientation | z1755b-07-D.pdf | 2nd Connector Orientation | ac107535.pdf |
| Diameter - Protective Tube | 10 mm | 2nd Connector Mounting Type | IDC |
| Diameter - Outside, Non-Expanded | 5 mm | ||
Product Info
| Type | IE-BSC-V14M-RJ45-FJ-A | ETIM 6*0 | EC001121 |
| GTIN (EAN) | 4032248799367 | Description | Variant 14 metal, Central locking flange with RJ45 adapter |
| Number of Ports | 1 | Firmware Version | Flange RJ45, IP67, Variant 14 metal, Central locking flange with RJ45 adapter, Cat.6A / Class EA (ISO/IEC 11801 2010) |
| Installation Type | STEADYTEC® assembly instruction RJ45 field attachable module_EN_HD.mp4 | Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
Environmental
| Ratings | Cat6a | Mating Cycles | 750 |
| ET (Volt-Time) | EC001121 | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Temperature | -40°C ~ 70°C | ||
