1031700000
| Manufacturer | |
| Description | TERM BLOCK DIN WEMID BEIGE |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | WFF3532WMBG | Standard Package | 10 |
Compliance
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Current - UL | 115A | Voltage - UL | 600V |
| Current - IEC | 125A | Voltage - IEC | 1000V |
Mechanical
| Length | 4.213" (107.00mm) | Height (Max) | 5.315" (135.00mm) |
| Housing Color | Beige | Mounting Type | DIN Rail |
| Terminal - Width | 27.0mm | Termination Style | Stud |
| Number of Positions | 2 | Material - Insulation | Thermoplastic, Wemid |
| Wire Gauge or Range - AWG | 2-14 AWG | Wire Gauge or Range - mm2 | 2.5-50mm² |
Product Info
| Type | Post - Dual | Number of Levels | 1 |
Environmental
| Operating Temperature | -50°C ~ 120°C | ||
Similar Parts
1064900000
weidmuller
Conn Jumper 2 POS ST JUMPER FOR WFF 35 2POS
$42.1056
Details

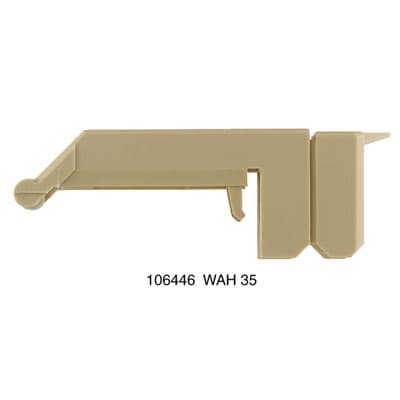

1064460000
