1030200000
| Manufacturer | |
| Description | TERMINAL WDL 2.5/L/L/PE |
| Category |
Business
| Standard Package | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | IEC 60947-7-1 (-7-2) |
| Compliance | E60693 | Protection | Yes |
| IEC Standard | 27-14-11-20 | Certification | 12400-296 |
| Standard Number | 30-21-18-11 | Declaration of Conformity | DE_PT1003_20160418_740_ISSUE01.pdf |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Frequency | 27-14-11-25 | Range deg/s | 0.13 mm² |
| Current - UL | 15A | Voltage - UL | 300V |
| Current - IEC | 24A | Voltage - IEC | 400V |
| Voltage Rating | 400 V | Conductor Strand | 26 AWG |
| Current - Output | 10 A | Number of Elements | 1 |
| Current Rating (Max) | 32 A | Insulation Resistance | 2.66 mΩ |
| Current - Output (Typ) | 15 A | Number of Outputs and Type | 3 |
| Voltage - Supply, Single (V+) | 300 V | Voltage - Breakdown (V(BR)GSS) | 4 kV |
| Voltage Rating - Appliance Inlet | 300 V | Voltage - Output (Typ) @ Distance | 300 V |
| Minimum Core Cross Section (Amin) mm2 | 2.5 mm² | ||
Mechanical
| Color | Beige | Depth | 49 mm |
| Width | 6.1 mm | Height | 90 mm |
| Weight | 21.6 g | Material | Wemid |
| Wire Type | 4 mm² | Blade Size | 0.6 x 3.5 mm |
| Wire Gauge | AWG 12 | End Feature | Yes |
| Opening Size | right | Rivet Length | M 2.5 |
| Torque - Min | 0.4 Nm | Mounting Type | Snap-on |
| Connector Type | Screw connection | Depth (Inches) | 1.89 inch |
| Mounting Rails | TS 35 | Torque - Screw | 1 |
| Width (Inches) | 0.24 inch | Height (Inches) | 3.543 inch |
| Stripping Length | 8mm | Terminal - Width | 6.1mm |
| Termination Style | Screw | Wire Gauge - Ends | 22 AWG |
| Color - Connectors | Dark Beige | Cross Hole Diameter | 0.5 mm² |
| Number of Positions | 5 | Material - Insulation | Thermoplastic, Wemid |
| Wire Gauge or Range - AWG | 12-26 AWG | Wire Gauge or Range - mm2 | 0.5-4mm² |
| Number of Positions/Bay/Row | 2 | Torque - Max Momentary (oz-in / mNm) | 0.6 Nm |
Product Info
| Type | Feed Through (2), Isolated | ETIM 6*0 | EC000897 |
| Direction | on side | GTIN (EAN) | 4008190164508 |
| Engineering Data | EPLAN | Firmware Version | Screw connection, L, L and PE connection, for screwable cross-connection, One end without connector |
| Number of Levels | 3; 1 Grounded | Independent Circuits | No |
| Other Specifications | No | Number of Positions (Convert From) | 5 |
Environmental
| Rated Life | 2.5 mm² | ET (Volt-Time) | EC001329 |
| Ingress Protection | 3 | Operating Temperature | -50 °C |
Documents & Media
Similar Parts
1074200000
weidmuller
Conn Jumper M 20 POS 6.1mm Screw ST TERMINAL CROSS CONN Q20 WDL2.5S
1071800000
weidmuller

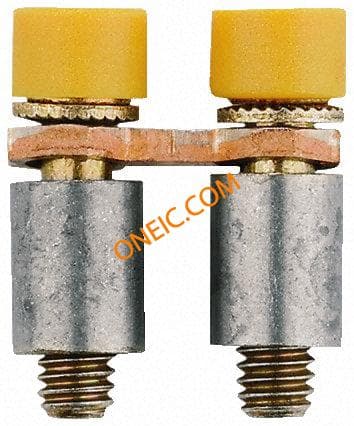

Conn Jumper M 10 POS 6.1mm Screw ST TERM BLK POWER DINRAIL N 10X3MM Weidmuller 1071800000 Cross Connector Terminal Block, Series: Q
1640740000
weidmuller
WS 8/5MC NEUTRAL WHITE -BX = 720 EA TAG MARKER 8X5MM WHT 720/BX Inkjet Printer Multi Card Markers
1067800000
weidmuller
Connector Accessories End Plate Wemid Beige ENDPLATE WDL 2.5 WM BEIGE
1067980000
weidmuller

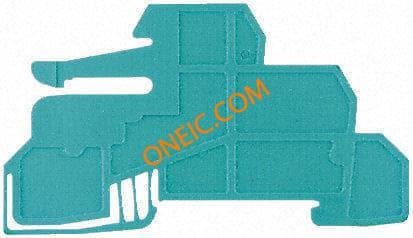

WHP WDL2.5/S -EA WHP WDL2.5/S Weidmuller 1067980000 Mounting Plate Terminal Block, Series: W
