1029000000
| Manufacturer | |
| Description | Conn Feed-Thru 2 POS Screw ST 150A TERMINAL WDU 35/1K/2A |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Material Flammability Rating | UL94 V-0 |
Electrical
| Current - UL | 150A | Voltage - UL | 600V |
| Current - IEC | 125A | Voltage - IEC | 1000V |
Mechanical
| Color | Beige | Wire Gauge | 1-12 AWG |
| Termination | Screw | Housing Color | Dark Beige |
| Mounting Type | Straight | Number of Rows | 2 |
| Stripping Length | 18mm | Terminal - Width | 16.0mm |
| Termination Style | Screw | Number of Positions | 2 |
| Material - Insulation | Thermoplastic, Wemid | Wire Gauge or Range - AWG | 1/0-12 AWG |
| Wire Gauge or Range - mm2 | 2.5-16mm² | ||
Product Info
| Type | Feed-Thru | Number of Levels | 1 |
| Number of Circuits | 1 | ||
Documents & Media
Similar Parts
1055460000
weidmuller
Conn Jumper M 4 POS 16mm Screw ST JUMPER FOR WDU 35 4POS
1050180000
weidmuller
Connector Accessories End Plate Wemid Blue/Light Blue ENDPLATE WTW 2.5-10 WM BLUE End/partition plate; Application: WDU; blue; max.125°C
1053160000
weidmuller
FEED THROUGH TERMINALS JUMPER FOR WDU 35 10POS Weidmuller 1053160000 Cross Connector Terminal Block, Series: WQV
1053060000
weidmuller
Conn Jumper M 2 POS 16mm Screw ST JUMPER FOR WDU 35 2POS
1055360000
weidmuller
Conn Jumper M 3 POS 16mm Screw ST JUMPER FOR WDU 35 3POS
1056260000
weidmuller
Connector Accessories Connector Marker Polyamide 66 White CVR WAD FOR WDU16/35 WHITE 50/PK
1609801044
weidmuller
Fuse Terminal Block 15A 500V Screw DIN Rail DEK 5/5 MULTI CARD 1000/BX TERMINAL BLOCK MARKER, 5MM, WHT, MULTICARD 1000
1609920000
weidmuller
Connector Accessories Connector Marker Polyamide White TAG MARKER 12X6.5MM WHT 540/BX WS 12/6,5 MULTICARD TERMINAL MARKER, 540 PC(S)

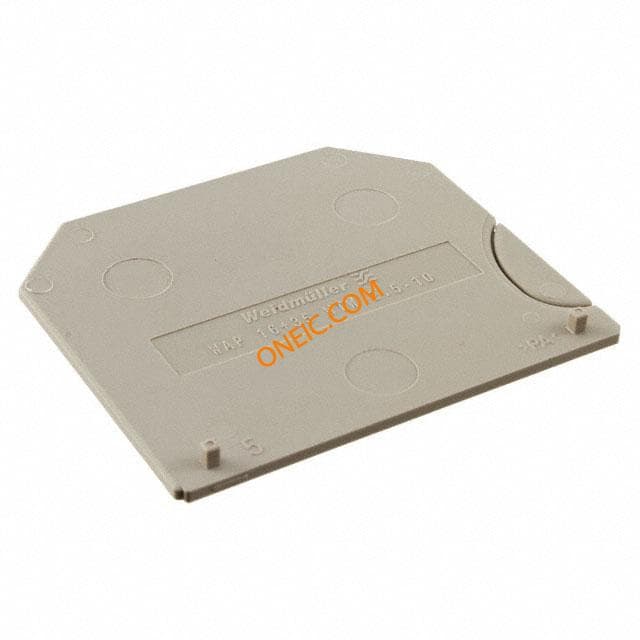

1050100000
