1021500000

Manufacturer	Weidmüller Holding AG & Co. KG
Description	Conn Feed-Thru 4 POS Screw ST 20A CONN TERM DUAL LEVEL WM BG Non-Fuse DIN Rail Terminal, 32A, 400V, Beige ,Screw Down Termination TERMINAL BLOCK, DIN RAIL, 4POS, 22-12AWG
Category	Connector SolutionsTerminal BlocksDIN Rail Terminal Blocks

对参数有疑问？问 AI 助手

Business

Standard Package

Bag

Compliance

RoHS	Lead free / RoHS Compliant	Tariff No	85369010
Material Flammability Rating	UL94 V-0

Electrical

Current - UL	20A	Voltage - UL	300V
Current - IEC	24A	Voltage - IEC	400V
Voltage Rating	400 V	Current Rating (Max)	32A

Mechanical

Color	Beige	Pitch	:2.5mm
Weight	0	Wire Gauge	12-30 AWG
Termination	Screw	Housing Color	Dark Beige
Mounting Type	Straight	Connector Type	:DIN Terminal Block
Contact Finish	:Tin	Number of Rows	4
Stripping Length	10mm	Terminal - Width	5.1mm
Termination Style	Screw	Color - Connectors	Beige
Number of Contacts	:4	Number of Positions	4
Material - Insulation	Thermoplastic, Wemid	Wire Gauge or Range - AWG	12-30 AWG
Wire Gauge or Range - mm2	0.5-4mm²	1st Connector Mounting Type	:DIN Rail

Product Info

Type	Feed-Thru	Series	WDK
Number of Levels	2	Number of Circuits	2

Environmental

Operating Temperature

+120°C

Documents & Media

PDF Document

1021500000

Similar Parts

1072100000

weidmuller

Connector Accessories Cover White TERMINAL COVER WAD 4 WHITE

$4.4744

Details

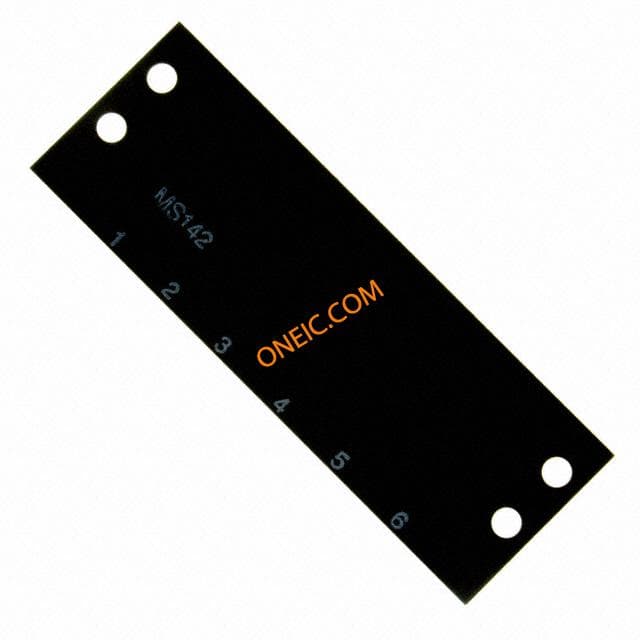

MS-6-142
