点击放大查看
1020200000
| Manufacturer | |
| Description | Conn Feed-Thru 2 POS Screw ST 50A CONN TERM BLOCK FEED THRU 8MM Non-Fuse DIN Rail Terminal, 57A, 800V, Beige ,Screw Down Termination TERMINAL BLOCK, DIN RAIL, 2POS, 20-8AWG Splice terminal: rail; ways:1; terminals:2; beige; 6mm2; wemid |
| Category |
Business
| Standard Package | Bag | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366910 |
| Rad Hardened | No | Material Flammability Rating | UL94 V-0 |
Electrical
| Current - UL | 50A | Voltage - UL | 600V |
| Current - IEC | 41A | Voltage - IEC | 800V |
| Voltage Rating | 800 V | Number of Poles | 1 |
| Connector Impedance | rail | Current Rating (Max) | 57A |
| Voltage - Supply (Min) | 600V | ||
Mechanical
| Color | Beige | Depth | 7.9 mm |
| Pitch | Not Required mm | Width | 7.9mm |
| Height | 47 mm | Weight | 0.014 |
| Wire Gauge | 8-22 AWG | Termination | Screw |
| Body Material | wemid | Housing Color | Dark Beige |
| Mounting Type | Straight | Connector Type | :DIN Terminal Block |
| Contact Finish | :- | Mounting Rails | TS35 |
| Number of Rows | 2 | Contact Material | :- |
| Housing Material | Wemid | Length - Overall | 60 mm |
| Package Quantity | 100 | Stripping Length | 12mm |
| Terminal - Width | 7.9mm | Termination Style | Screw |
| Color - Connectors | Beige | Number of Contacts | 2 |
| Number of Positions | 2 | Maximum Cable Length | 6mm2 |
| Material - Insulation | Thermoplastic, Wemid | Wire Gauge or Range - AWG | 8-26 AWG |
| Wire Gauge or Range - mm2 | 0.5-10mm² | 1st Connector Mounting Type | :DIN Rail |
Product Info
| Spg | 100 | Type | Feed-Thru |
| Series | WDU | Number of Units | 1 |
| Number of Levels | 1 | Number of Circuits | 1 |
Environmental
| Operating Temperature | +120°C | ||
Documents & Media
Similar Parts
0299600000
weidmuller
Conn Test Plug PL 1 POS ST 1 Port PLUG TEST PS4 4.0MM SOCKET
1072200000
weidmuller
WAP 2.5-10,WM,GREEN -EA ENDPLATE 1.5MM WDU 2.5-10 WM GN
1609900000
weidmuller
Connector Accessories White Marker Tag Polyamide 66 TAG MARKER 12X6MM WHT 600/BX
1050040000
weidmuller
Connector Accessories End Plate/Intermediate Plate Polyamide Red ENDPLATE 1.5MM WDU 2.5-10 PA RD Weidmuller 1050040000 End Plate Terminal Block, Series: W Weidmuller W 系列 端板
1050180000
weidmuller
Connector Accessories End Plate Wemid Blue/Light Blue ENDPLATE WTW 2.5-10 WM BLUE End/partition plate; Application: WDU; blue; max.125°C
0280600000
weidmuller
Conn Test Jack SKT 1 POS ST 1 Port SOCKET SAK 2.5 WDU 4/6/10
1050020000
weidmuller
Connector Accessories End Plate/Intermediate Plate Wemid Yellow ENDPLATE 1.5MM WDU 2.5-10 WM YL Weidmuller 1050020000 End Plate Terminal Block, Series: W Weidmuller W 系列 端板
0169900000
weidmuller
Conn Test Socket SKT 1 POS ST 1 Port SOCKET STB 14 SAK 6N/10/16 SAKT
1050050000
weidmuller
Connector Accessories End Plate/Intermediate Plate Wemid Gray ENDPLATE 1.5MM WDU 2.5-10 WM GY
1050960000
weidmuller
Connector Accessories Connector Marker Polyamide 66 beige TAG CARRIER FOR W-SERIES 50/PK
1053460000
weidmuller
Connector Accessories Connector Marker Polyamide 66 Yellow COVER LIGHTNING SYM WAD5 1=50PCS
1609920000
weidmuller
Connector Accessories Connector Marker Polyamide White TAG MARKER 12X6.5MM WHT 540/BX WS 12/6,5 MULTICARD TERMINAL MARKER, 540 PC(S)

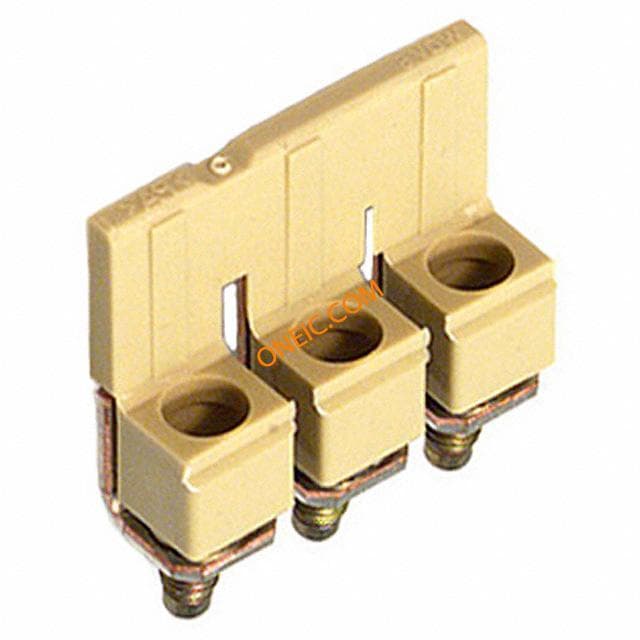

1054760000
weidmuller
Conn Jumper M 3 POS 8mm Screw ST CONN JUMPER TERM BLOCK 8.0MM Screw bridge; Application: WDU6; ways:3

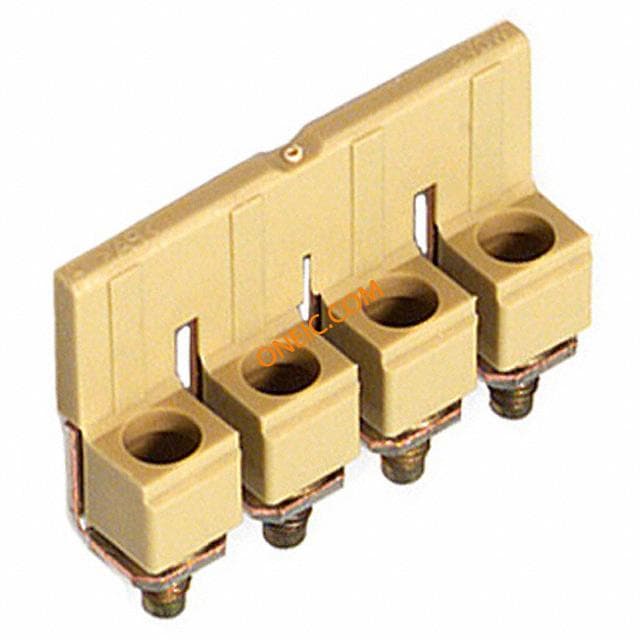

1054860000
weidmuller
Conn Jumper M 4 POS 8mm Screw ST CONN JUMPER TERM BLOCK 8.0MM Screw bridge; Application: WDU6; ways:4

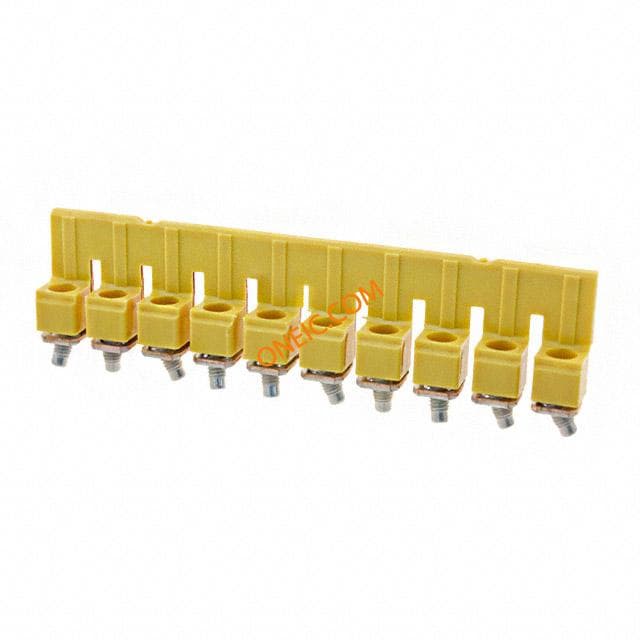

1052260000
