1020100000
| Manufacturer | |
| Description | Conn Feed-Thru 2 POS Screw ST Cable Mount 32A CONN TERM BLOCK FEED THRU 6MM WDU 4 standard terminal,32A,BP Non-Fuse DIN Rail Terminal, 41A, 800V, Beige ,Screw Down Termination TERMINAL BLOCK, DIN RAIL, 2POS, 26-10AWG Splice terminal: rail; ways:1; terminals:2; beige; 4mm2; wemid |
| Category |
Business
| Standard Package | Bag | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Rad Hardened | No | Material Flammability Rating | UL94 V-0 |
Electrical
| Current - UL | 35A | Voltage - UL | 600V |
| Current - IEC | 32A | Voltage - IEC | 800V |
| Voltage Rating | 800 V | Number of Poles | 1 |
| Connector Impedance | rail | Current Rating (Max) | 41A |
| Voltage - Supply (Min) | 800V | ||
Mechanical
| Color | Beige | Depth | 6.1 mm |
| Pitch | Not Required mm | Width | 6.1mm |
| Height | 47 mm | Weight | 0.009 |
| Wire Gauge | 10-26 AWG | Termination | Screw |
| Body Material | wemid | Housing Color | Dark Beige |
| Mounting Type | Cable Mount | Connector Type | :DIN Terminal Block |
| Contact Finish | :- | Mounting Rails | TS35 |
| Mounting Style | Cable | Number of Rows | 2 |
| Contact Material | :- | Housing Material | Wemid |
| Length - Overall | 60 mm | Package Quantity | 100 |
| Stripping Length | 10mm | Terminal - Width | 6.1mm |
| Termination Style | Screw | Color - Connectors | Beige |
| Number of Contacts | 2 | Number of Positions | 2 |
| Maximum Cable Length | 4mm2 | Material - Insulation | Thermoplastic, Wemid |
| Wire Gauge or Range - AWG | 10-26 AWG | Wire Gauge or Range - mm2 | 0.5-6mm² |
| 1st Connector Mounting Type | :DIN Rail | ||
Product Info
| Spg | 100 | Type | Feed-Thru |
| Series | WDU | Number of Units | 1 |
| Number of Levels | 1 | ||
Environmental
| Operating Temperature | +120°C | ||
Documents & Media
Similar Parts
1609010000
weidmuller
Conn Pluggable Jumper PL 8 POS 6.1mm ST JUMPER 6MM 33A 8POS ZDU4/ZEI 16

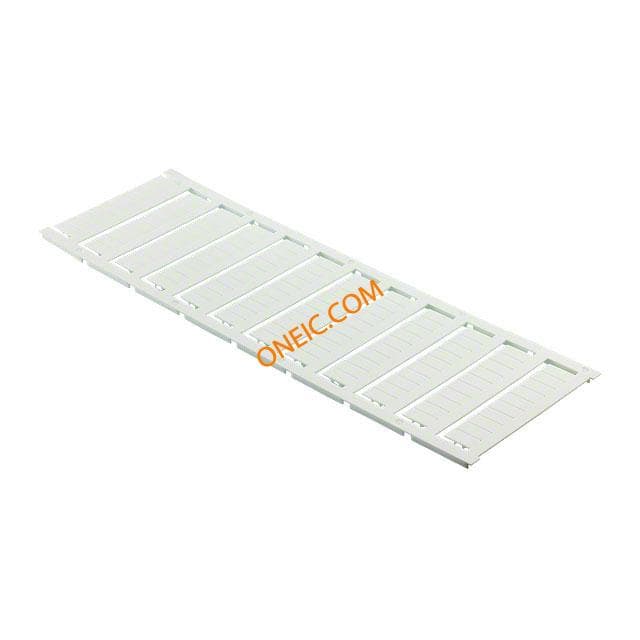

1609900000
weidmuller
Connector Accessories White Marker Tag Polyamide 66 TAG MARKER 12X6MM WHT 600/BX
1793990000
weidmuller
ZQV 4N/3 BLUE -EA JUMPER ZQV 4N/3 BLUE
1794060000
weidmuller
Conn Jumper M 10 POS 6.1mm ST JUMPER ZQV 4N/10 BLACK
1794030000
weidmuller
Conn Jumper M 4 POS 6.1mm ST JUMPER ZQV 4N/4 BLACK

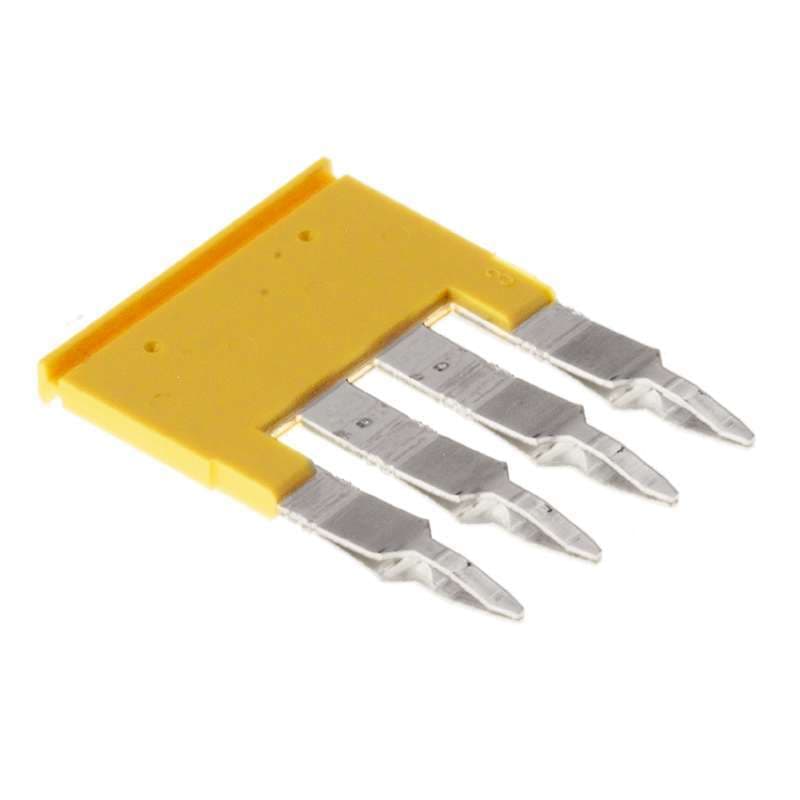

1608970000
weidmuller
Conn Pluggable Jumper PL 4 POS 6.1mm ST JUMPER 6MM 33A 4POS ZDU4/ZEI 16
1609030000
weidmuller
Conn Pluggable Jumper PL 10 POS 6.1mm ST JUMPER 6MM 33A 10POS ZDU4/ZEI16 Weidmuller 1609030000 Cross Connector Terminal Block, Series: ZQV TERMINAL BLOCK JUMPER, 10WAY, 6.1MM
0280600000
weidmuller
Conn Test Jack SKT 1 POS ST 1 Port SOCKET SAK 2.5 WDU 4/6/10
1050050000
weidmuller
Connector Accessories End Plate/Intermediate Plate Wemid Gray ENDPLATE 1.5MM WDU 2.5-10 WM GY
1051960000
weidmuller
Conn Jumper M 2 POS 6.1mm Screw ST JUMPER FOR WDU 4 2POS Weidmuller 1051960000 Cross Connector Terminal Block, Series: WQV TERMINAL BLOCK JUMPER, 2WAY, 6.1MM Screw bridge; Application: WDU4; ways:2
1052060000
weidmuller
Conn Jumper M 10 POS ST JUMPER FOR WDU 4 10POS Weidmuller 1052060000 Cross Connector Terminal Block, Series: WQV Screw bridge; Application: WDU4; ways:10
1609020000
weidmuller
Conn Pluggable Jumper PL 9 POS 6.1mm ST JUMPER 6MM 33A 9POS ZDU4/ZEI 16
1632350000
weidmuller
Conn Test Adapter M 1 POS Screw ST 1 Port ADAPTER TEST 107.6MM 1POS WDU
1793980000
weidmuller
Conn Jumper M 3 POS 6.1mm ST JUMPER ZQV 4 N/3 RED
1794010000
weidmuller
Conn Jumper M 4 POS 6.1mm ST JUMPER ZQV 4N/4 RED
1794050000
weidmuller
Conn Jumper M 10 POS ST JUMPER ZQV 4N/10 BLUE
1794070000
weidmuller
Conn Jumper M 41 POS ST JUMPER ZQV 4 N/41 RED
1794000000
weidmuller
Conn Jumper M 3 POS 6.1mm ST JUMPER ZQV 4N/3 BLACK
1050000000
weidmuller
Connector Accessories Straight End Plate Wemid Beige CONN PLATE END TERMINAL WDU 2.5 Weidmuller 1050000000 End Plate Terminal Block, Series: W END PLATE, W-SERIES MODULAR TERMINAL End plate; Application: WDU, WPE, WSI; beige; max.125°C

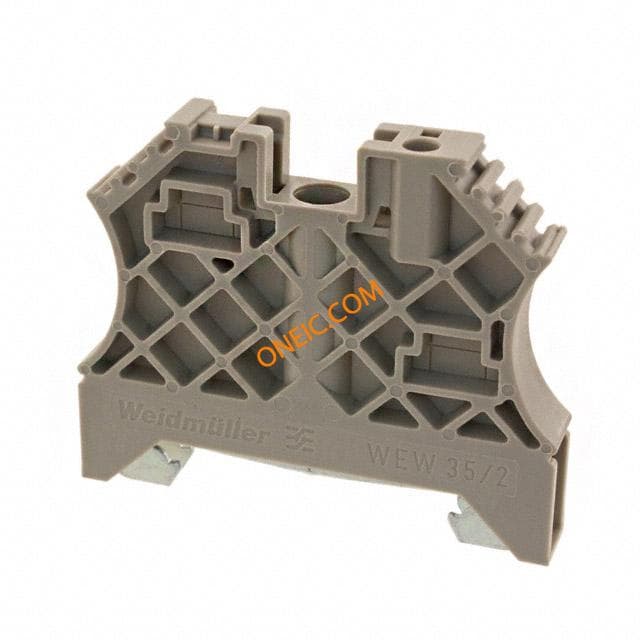

1061200000
