点击放大查看
1020000000
| Manufacturer | |
| Description | WDU 2.5,WM,BG CONN TERM BLOCK FEED THRU 5MM WDU 2.5 standard terminal,24A Non-Fuse DIN Rail Terminal, 32A, 800V, Beige ,Screw Down Termination Standard Terminal Block Klemmen WDU 2.5 TERMINAL BLOCK, DIN RAIL, 2POS, 30-12AWG Splice terminal: rail; ways:1; terminals:2; beige; 2.5mm2; wemid |
| Category |
Business
| Standard Package | 100 | ||
Compliance
| RoHS | Compliant | Tariff No | 85366910 |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Current - UL | 25A | Voltage - UL | 600V |
| Current - IEC | 24A | Voltage - IEC | 800V |
| Voltage Rating | 800 V | Number of Poles | 1 |
| Connector Impedance | rail | Current Rating (Max) | 32A |
Mechanical
| Color | Beige | Pitch | :2.5mm |
| Width | 5.1mm | Weight | 0.005 |
| Wire Gauge | 30 → 12 AWG | Termination | Screw Down |
| Body Material | wemid | Mounting Type | screw terminal |
| Connector Type | :DIN Terminal Block | Contact Finish | :- |
| Mounting Rails | TS35 | Package Quantity | 100 |
| Stripping Length | 10mm | Terminal - Width | 5.1mm |
| Termination Style | Screw | Color - Connectors | Beige |
| Number of Contacts | :2 | Number of Positions | 2 |
| Maximum Cable Length | 2.5mm2 | Material - Insulation | Thermoplastic, Wemid |
| Wire Gauge or Range - AWG | 12-30 AWG | Wire Gauge or Range - mm2 | 0.5-4mm² |
| 1st Connector Mounting Type | :DIN Rail | ||
Product Info
| Spg | 100 | Type | Feed Through |
| Series | WDU | Number of Units | 1 |
| Number of Levels | 1 | ||
Environmental
| Operating Temperature | +120°C | ||
Documents & Media
Similar Parts

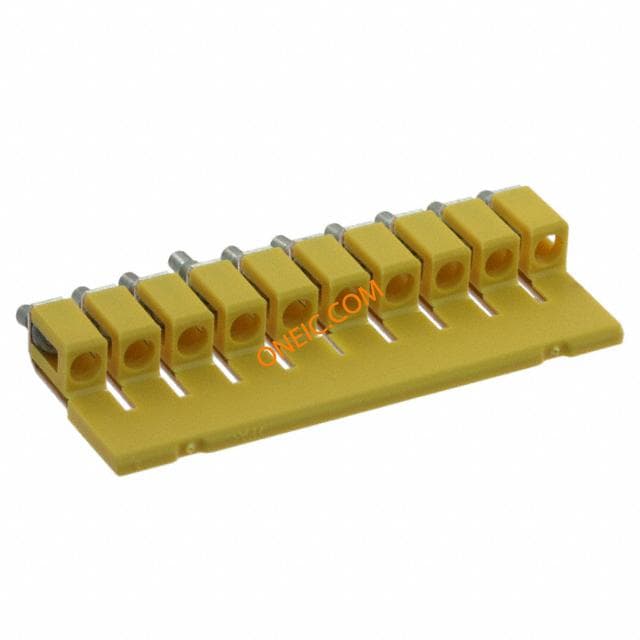

1054460000
weidmuller
Conn Screw Jumper 10 POS Screw ST JUMPER FOR WDU 2.5 10POS Weidmuller 1054460000 Cross Connector Terminal Block, Series: WQV TERMINAL BLOCK JUMPER, 10WAY, 5MM Screw bridge; Application: WDU2.5; ways:10
1632320000
weidmuller
Conn Test Adapter M 1 POS ST 1 Port ADAPTER TEST 107.6MM 1POS WDU
1579060000
weidmuller
Conn Pluggable Jumper 16 POS Screw ST JUMPER 18A 16MM PIN 24POS TERMINAL BLOCK JUMPER, 24WAY, 5.1MM
1579010000
weidmuller
Conn Jumper 2 POS 5.1mm Screw ST JUMPER 18A 16MM PIN 2POS
1056060000
weidmuller
Connector Accessories Connector Marker Polyamide 66 White COVER BLANK WAD 6 50/PK
1056400000
weidmuller
Connector Accessories Modular Terminal Block Screen Lug SHIELD BAR 2.8MM W-SERIES
1579020000
weidmuller
Conn Jumper 3 POS 5.1mm Screw ST JUMPER 18A 16MM PIN 3POS
1579040000
weidmuller
Conn Jumper 6 POS 5.1mm Screw ST JUMPER 18A 16MM PIN 6POS
1609860000
weidmuller
WS 12/5 MULTI CARD -BX = 720 EA TAG MARKER 12X5MM WHT 720/BX Inkjet Printer Multi Card Markers TERMINAL BLOCK MARKER BLANK 5MM PACK-720
1693800000
weidmuller
Conn Cross Jumper M 2 POS ST CONN JUMPER TERM BLOCK 5.0MM Weidmuller 1693800000 Cross Connector Terminal Block, Series: ZQV TERMINAL BLOCK JUMPER, 2 WAY, 5.1MM

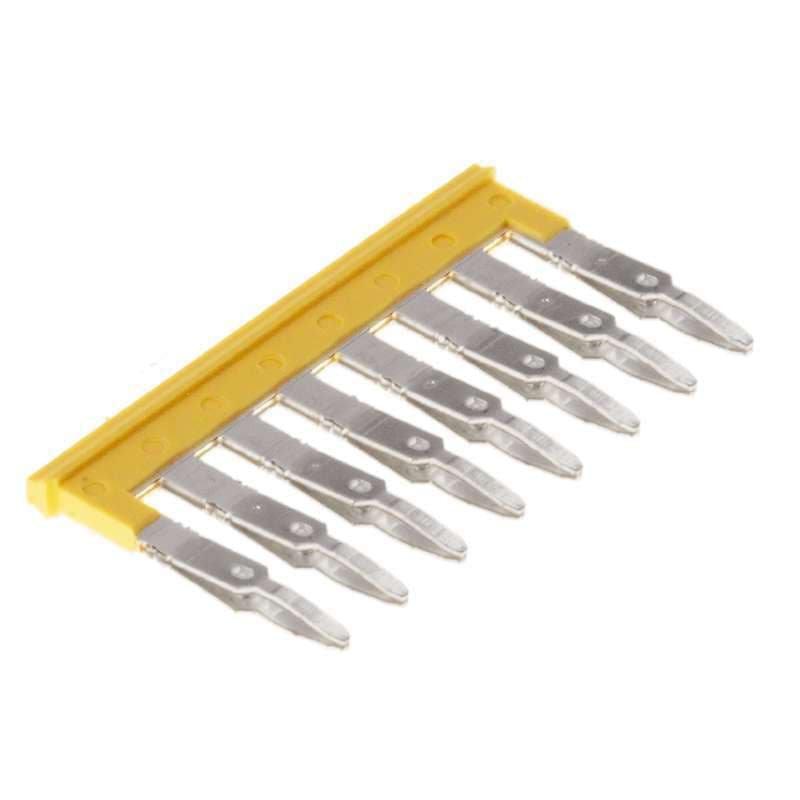

1693860000
weidmuller
Conn Pluggable Jumper M 8 POS 5.1mm ST CONN JUMPER TERM BLOCK 5.0MM
1579030000
weidmuller
Conn Jumper 4 POS 5.1mm Screw ST JUMPER 18A 16MM PIN 4POS

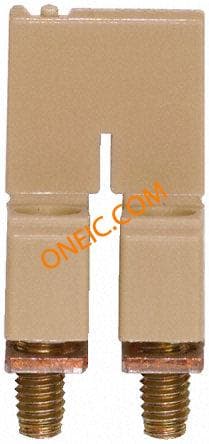

1053660000
weidmuller
Conn Jumper M 2 POS 5.1mm Screw ST JUMPER FOR WDU 2.5 2POS Weidmuller 1053660000 Cross Connector Terminal Block, Series: WQV TERMINAL BLOCK JUMPER, 2WAY, 5.1MM Screw bridge; Application: WDU2.5; ways:2
1693820000
weidmuller
Conn Cross Jumper M 4 POS ST CONN JUMPER TERM BLOCK 5.0MM TERMINAL BLOCK JUMPER, 4POS, 2.8W X 23MMH Comb bridge; Application: WDU2.5; ways:4

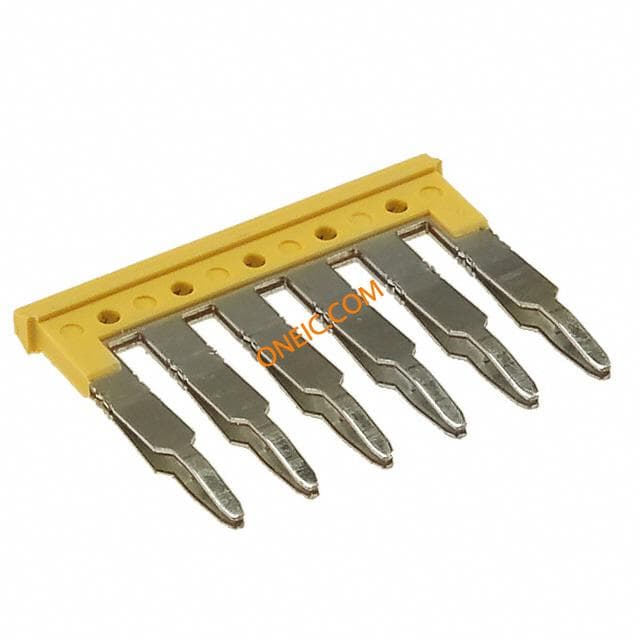

1693840000
