1019000000
| Manufacturer | |
| Description | Conn Modular Terminal Blocks 1 POS Screw ST 65A TERM BLOCK DIN 10X3 BSBR WM BU Non-Fuse DIN Rail Terminal, 101A, 400V, Blue ,Busbar Termination |
| Category |
Business
| Other Names | WNT16N | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | In accordance with IEC 60947-7-1 |
| Compliance | E60693 | Protection | No |
| IEC Standard | 27-14-11-26 | Certification | 200039-1057876 |
| Standard Number | 30-21-18-11 | Declaration of Conformity | DE_PT1003_20160418_927_ISSUE01.pdf |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Frequency | 27-14-11-38 | Range deg/s | 25 mm² |
| Current - UL | 65A | Voltage - UL | 300V |
| Current - IEC | 76A | Voltage - IEC | 400V |
| Voltage Rating | 400 V | Conductor Strand | 14 AWG |
| Current - Output | 65 A | Voltage - Supply | 300 V |
| Number of Elements | 1 | Current Rating (Max) | 101A |
| Insulation Resistance | 0.42 mΩ | Current - Output (Typ) | 65 A |
| Number of Outputs and Type | 1 | Voltage - Supply, Single (V+) | 300 V |
| Voltage - Breakdown (V(BR)GSS) | 6 kV | Minimum Core Cross Section (Amin) mm2 | 16 mm² |
Mechanical
| Depth | 47 mm | Width | 12 mm |
| Height | 60 mm | Length | 2.362" (60.00mm) |
| Weight | 29.12 g | Material | Wemid |
| Blade Size | 1.0 x 5.5 mm | Step Angle | 1019000000_21922_WNT_16N_10X3_STP.stp |
| Wire Gauge | 6-14 AWG | End Feature | No |
| Termination | Screw | Height (Max) | 1.850" (47.00mm) |
| Opening Size | closed | Rivet Length | M 4 |
| Torque - Min | 1.2 Nm | Housing Color | Blue |
| Mounting Type | Straight | Connector Type | Busbar connection |
| Depth (Inches) | 1.831 inch | Mounting Rails | TS 35 |
| Number of Rows | 1 | Torque - Screw | 4 |
| Width (Inches) | 0.472 inch | Height (Inches) | 2.362 inch |
| Stripping Length | 12mm | Terminal - Width | 12.0mm |
| Termination Style | Special, Hybrid | Wire Gauge - Ends | 14 AWG |
| Color - Connectors | Blue | Number of Positions | 2 |
| Material - Insulation | Thermoplastic, Wemid | Wire Gauge or Range - AWG | 6-14 AWG |
| Wire Gauge or Range - mm2 | 1.5-16mm² | Number of Positions/Bay/Row | 1 |
| Torque - Max Momentary (oz-in / mNm) | 2.2 Nm | ||
Product Info
| Form | 10 x 3 mm | Type | Modular Terminal Blocks |
| Series | WNT | ETIM 6*0 | EC000902 |
| Direction | on side | GTIN (EAN) | 4008190273231 |
| Engineering Data | EPLAN | Firmware Version | Screw connection, with busbar connection 10x3, closed |
| Number of Levels | 1 | Installation Type | Busbar |
| Independent Circuits | No | Other Specifications | No |
| Number of Positions (Convert From) | 1 | ||
Environmental
| Rated Life | 16 mm² | ET (Volt-Time) | EC001257 |
| Ingress Protection | 3 | Operating Temperature | -50°C ~ 120°C |
Documents & Media
Similar Parts
0316600000
weidmuller
Connector Accessories Clamping Yoke/Busbar Steel YOKE CLAMP W/O HOOD 10X3MM
0348900000
weidmuller

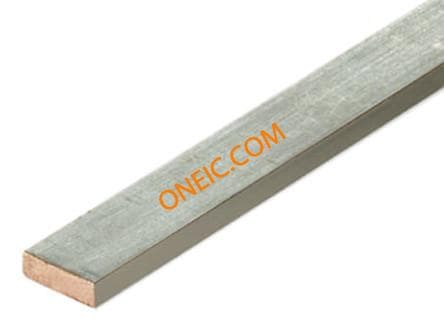

Connector Accessories Busbar Brass CONN SSCH 10 X 3 CU 14 SN 1M Weidmuller 0348900000 Busbar Terminal Block, Series: W BUSBAR, 1POS, TERMINAL BLOCK
1050280000
weidmuller
Connector Accessories End Plate Wemid Blue WHP 2.5-10 FOR 10X3 BSBR W Support plate for connect terminal
0266500000
weidmuller
Connector Accessories Clamping Yoke/Busbar Steel YOKE CLAMP W/O HOOD 10X3MM
1609801044
weidmuller
Fuse Terminal Block 15A 500V Screw DIN Rail DEK 5/5 MULTI CARD 1000/BX TERMINAL BLOCK MARKER, 5MM, WHT, MULTICARD 1000
1609860000
weidmuller
WS 12/5 MULTI CARD -BX = 720 EA TAG MARKER 12X5MM WHT 720/BX Inkjet Printer Multi Card Markers TERMINAL BLOCK MARKER BLANK 5MM PACK-720
0316500000
weidmuller

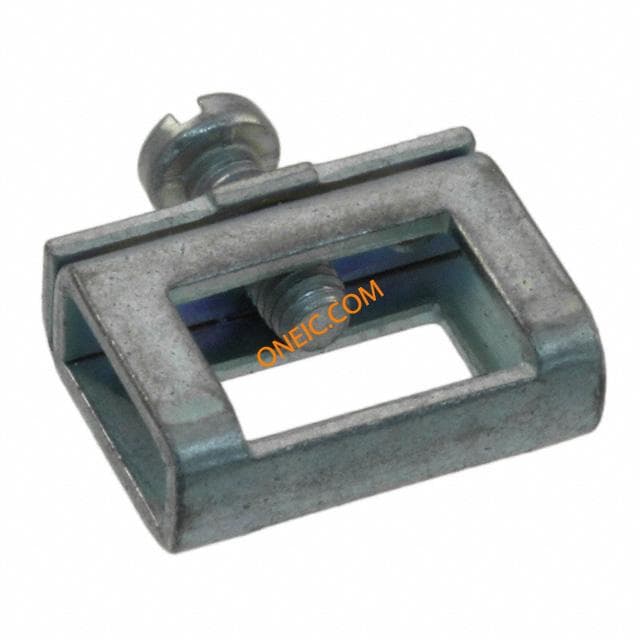

Connector Accessories CLAMPING Yoke Straight Steel YOKE CLAMP W/O HOOD 10X3MM
