1012310000
| Manufacturer | |

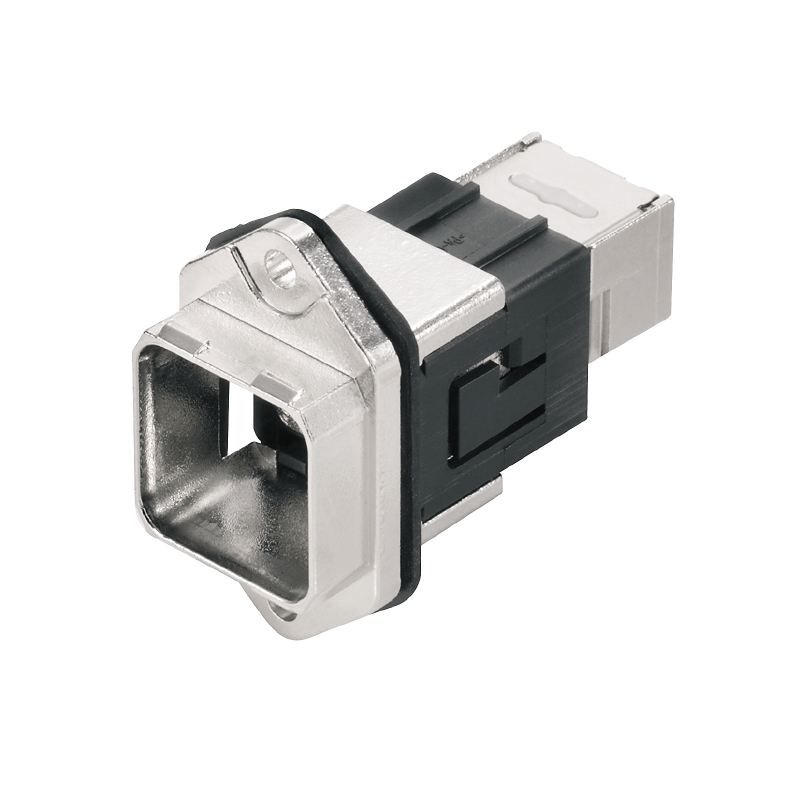

| Description | COUPLER MODULAR 8POS-8POS |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | IE-BSS-V14M-RJ45-C | Standard Package | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | IEC Standard | 27-44-09-90 |
| Protection Features | IP67 | ||
Electrical
| Frequency | 19-17-01-25 | ||
Mechanical
| Weight | 45.27 g | Shielding | Shielded |
| 1st Connector | RJ45 | Mounting Type | Panel Mount, Flange (2 Hole) |
| Shell Plating | EPDM | Contact Finish | Gold |
| Contact Material | Nickel | Housing Material | Zinc diecast |
| Connector/Contact Type | IEC 61076-3-117 Var. 14, IEC 60603-7-51 | Shell Material, Finish | Zinc Die Cast |
| 1st Connector Orientation | z1755b-07-D.pdf | 2nd Connector Orientation | ac107535.pdf |
| Diameter - Protective Tube | 10 mm | 2nd Connector Mounting Type | RJ45 |
| Diameter - Outside, Non-Expanded | 5 mm | ||
Product Info
| Type | Coupler | ETIM 6*0 | EC001121 |
| GTIN (EAN) | 4032248719969 | Manufacturer | PN Manufacturer Declaration.pdf |
| Firmware Version | Flange RJ45, IP67, Cat.6A / Class EA (ISO/IEC 11801 2010) | Convert To (Adapter End) | Jack, 8p8c (RJ45) |
| Convert From (Adapter End) | Jack, 8p8c (RJ45) | ||
Environmental
| Ratings | Cat6a | Mating Cycles | 750 |
| ET (Volt-Time) | EC000018 | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Temperature | -40°C ~ 70°C | ||
