1011780000
| Manufacturer | |
| Description | TERM BLOCK DIN 6X3 BSBR WM BLU |
| Category |
Business
| Other Names | WNT4/6X3 | Standard Package | 100 |
Electrical
| Current - UL | 35A | Voltage - UL | 600V |
| Current - IEC | 32A | Voltage - IEC | 400V |
Mechanical
| Length | 2.362" (60.00mm) | Height (Max) | 1.850" (47.00mm) |
| Housing Color | Blue | Mounting Type | DIN Rail |
| Stripping Length | 10mm | Terminal - Width | 6.0mm |
| Termination Style | Special, Hybrid | Number of Positions | 2 |
| Material - Insulation | Thermoplastic, Wemid | Wire Gauge or Range - AWG | 10-22 AWG |
| Wire Gauge or Range - mm2 | 4mm² | ||
Product Info
| Type | Bus Bar - Side | Number of Levels | 1 |
Similar Parts
0502880000
weidmuller
ZB 16 K,W/HOOD,BU -EA YOKE CLAMP W/BLU HOOD 10X3MM
0571200000
weidmuller
SSCH 6X6,BRASS,1M,100A -EA BUSBAR 6X6 100A BAREBRASS 1M
0348900000
weidmuller
Connector Accessories Busbar Brass CONN SSCH 10 X 3 CU 14 SN 1M Weidmuller 0348900000 Busbar Terminal Block, Series: W BUSBAR, 1POS, TERMINAL BLOCK
1050280000
weidmuller

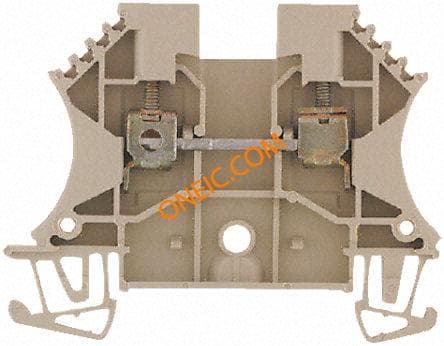

Connector Accessories End Plate Wemid Blue WHP 2.5-10 FOR 10X3 BSBR W Support plate for connect terminal
0259800000
weidmuller
Connector Accessories Busbar Brass BUSBAR 10X3MM 100A BAREBRASS 1M
0565480000
weidmuller
ZB 4/6 K,W/HOOD,BU -EA YOKE CLAMP W/BLUE HOOD 6X6MM
0475380000
weidmuller
ZB 4 K,W/HOOD,BU -EA YOKE CLAMP W/BLUE HOOD 10X3MM
0502680000
weidmuller
ZB 35 K,W/HOOD,BU -EA YOKE CLAMP W/BLUE HOOD 10X3MM
0525980000
weidmuller
Connector Accessories Clamping Yoke YOKE CLAMP W/BLUE HOOD 10X3MM
0569680000
weidmuller
ZB 16/6 K,W/HOOD,BU -EA YOKE CLAMP W/BLUE HOOD 6X6MM
0468660001
weidmuller

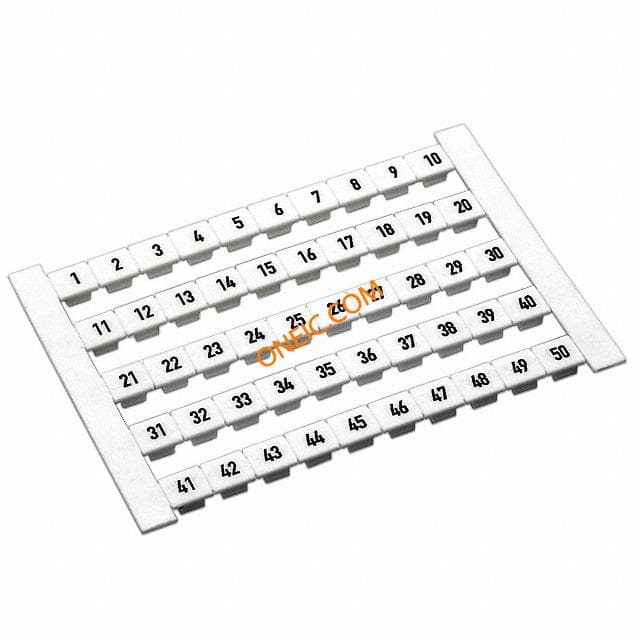

Connector Accessories Marker Polyamide White DEKAFIX FW 6 MARKED 1-50 50/CD Marker; white; for 6,2mm wide terminals; Width:6mm; Ht:5mm
