0128360000
| Manufacturer | |
| Description | Conn Feed-Thru 2 POS Screw Cable Mount 30A TERM BLK SAK 4 TS32 PA BEIGE Non-Fuse DIN Rail Terminal, 32A, 800V SAK 4 standard terminal,32A TERMINAL BLOCK, DIN RAIL, 2POS, 22-10AWG |
| Category |
Business
| Other Names | SAK 4/32 PA BG | Standard Package | Bag |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366910 |
| Material Flammability Rating | UL94 V-2 | ||
Electrical
| Current - UL | 30A | Voltage - UL | 600V |
| Current - IEC | 34A | Voltage - IEC | 800V |
| Voltage Rating | 800 V | Current Rating (Max) | 32A |
Mechanical
| Color | Beige | Weight | 0.009 |
| Wire Gauge | 10-22 AWG | Termination | Screw |
| Housing Color | Beige | Mounting Type | Cable Mount |
| Connector Type | :DIN Terminal Block | Contact Finish | :- |
| Number of Rows | 2 | Contact Material | :- |
| Terminal - Width | 6.5mm | Termination Style | Screw |
| Number of Contacts | :2 | Number of Positions | 2 |
| Material - Insulation | Polyamide (PA66), Nylon 6/6 | Wire Gauge or Range - AWG | 10-22 AWG |
| Wire Gauge or Range - mm2 | 0.5-6mm² | 1st Connector Mounting Type | :DIN Rail |
Product Info
| Type | Feed-Thru | Series | SAK |
| Number of Levels | 1 | ||
Environmental
| Operating Temperature | +100°C | ||
Documents & Media
Similar Parts

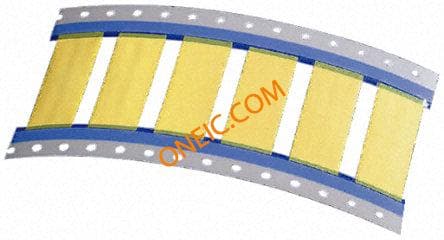

TMS-SCE-1/4-2.0-9
TE Connectivity / Raychem
Wire Identification HS-SLEEVE 1/4 WH PRICE PER PC Wire & Harness ID Products HEAT SHRINK SLEEVE White hi-spec military marker,6.4mm i/d Cable Markers Cross Linked Polyolefin White Cable Markers Cross Linked Polyolefin White Product Highlights:TMS-SCE SeriesMarker SleeveMilitary GradeRadiation Cross-Linked Polyolefin MaterialShrink Ratio = 3:1 MARKER, HEATSHRINK, HIGH SPEC GRADE Sleeve,Marker;White;RadiationCross-LinkedPolyolefin;3:1;0.023in.;2in. 3:1 Shrink Ratio 50.8mm Length Military Grade Heat Shrink Sleeve TE Connectivity TMS-SCE 系列 热收缩电缆标识

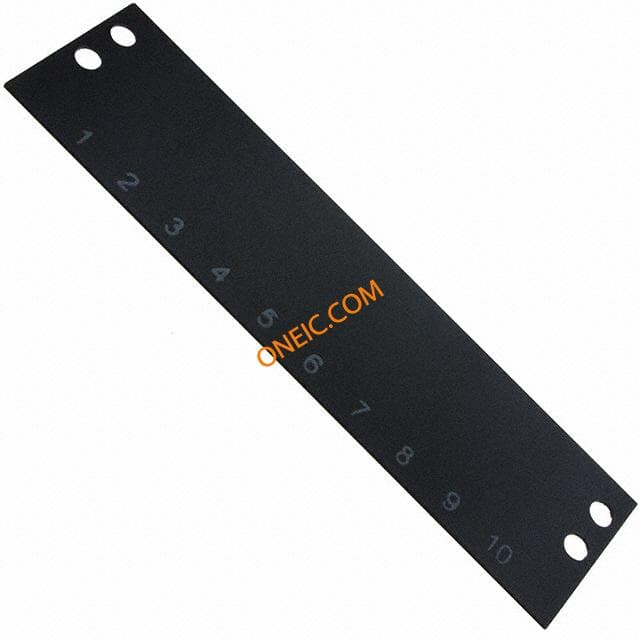

MS-10-140
