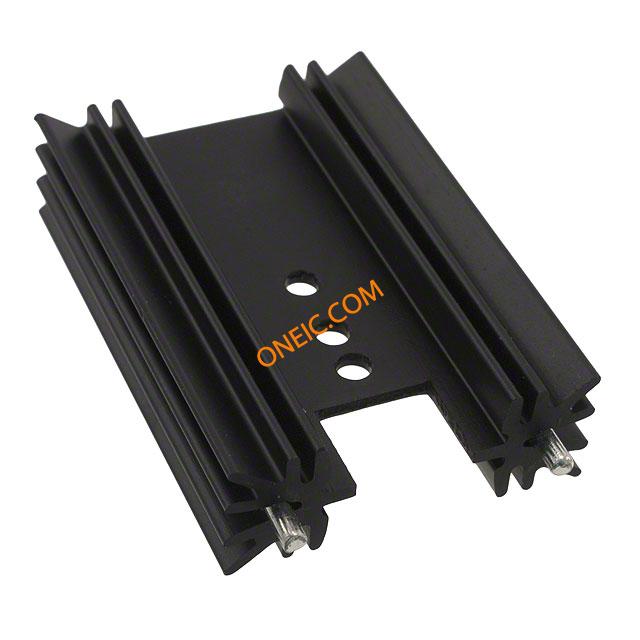

637-20ABP
| Manufacturer | |
| Description | Heat Sinks TO-220 VERT MT 2 HEATSINK TO-220 VERT MT BLK 2" Heat Sink Passive TO-220 Solderable Wave Aluminum 4.7°C/W Black Anodized HEAT SINK, 16K/W, TO-220 Heatsink;VerticalMount;2in.;55C@6W;4.7C/W;Non-RoHS |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Heat Sinks | Lead Time | 56 Days |
| Subcategory | Heat Sink | Product Category | Heat Sinks |
| Standard Package | 1 | ||
Compliance
| RoHS | No | Tariff No | 76041090 |

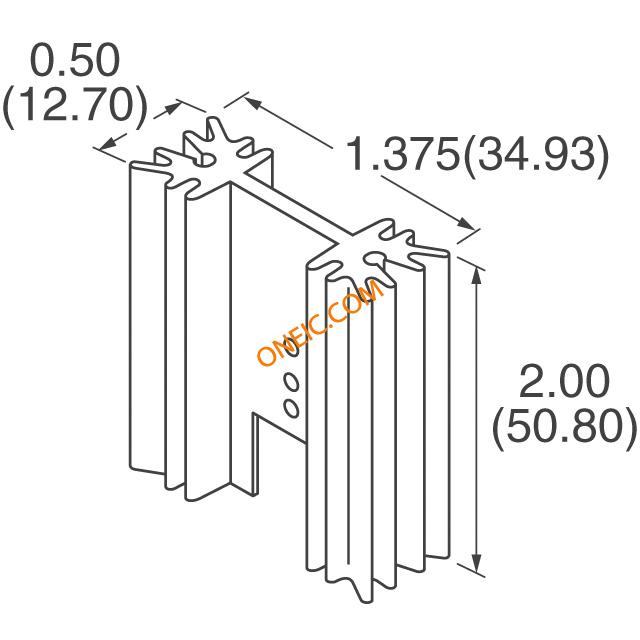

Mechanical
| Color | Black | Shape | Rectangular |
| Width | 35.05 mm | Finish | BlackAnodized |
| Height | 50.8 mm | Length | 12.7 mm |
| Weight | 0.018 | Material | Aluminum |
| Fin Height | Folded | Mounting Type | Vertical |
| Mounting Style | Through Hole | Package / Case | TO-220 |
| Package Cooled | TO-220 | Width (Inches) | :1.374" |
| Height (Inches) | :2" | Material Finish | Black Anodized |
| Width - Overall | :34.9mm | Front Connection | 4.7°C/W@200LFM |
| Length - Overall | :0.5" | Primary Material | TO-220 |
| Size / Dimension | 1.375×0.5in. | Attachment Method | Bolt On and PC Pin |
| Heat Sink Material | Aluminum | Height Above Board | 2in. |
| Height - Seated (Max) | 0.500" (12.70mm) | Shell Size - Insert (Convert From) | :50.8mm |
Product Info
| Type | Board Level, Vertical | Features | High-Efficiency,ForVerticalBoardMounting |
| Application | TO-220 | Configuration | Vertical |
| Bus Connection | 55°Cat6W | Application Specifics | BoardLevelPowerSemiconductors |
Environmental
| Heat Protection | :Aluminium | Thermal Resistance | 4.7 C/W |
| Thermal Resistance @ Natural | 9.2°C/W | Power Dissipation @ Temperature Rise | 6W @ 55°C |
| Thermal Resistance @ Forced Air Flow | 4.7°C/W @ 200 LFM | ||
